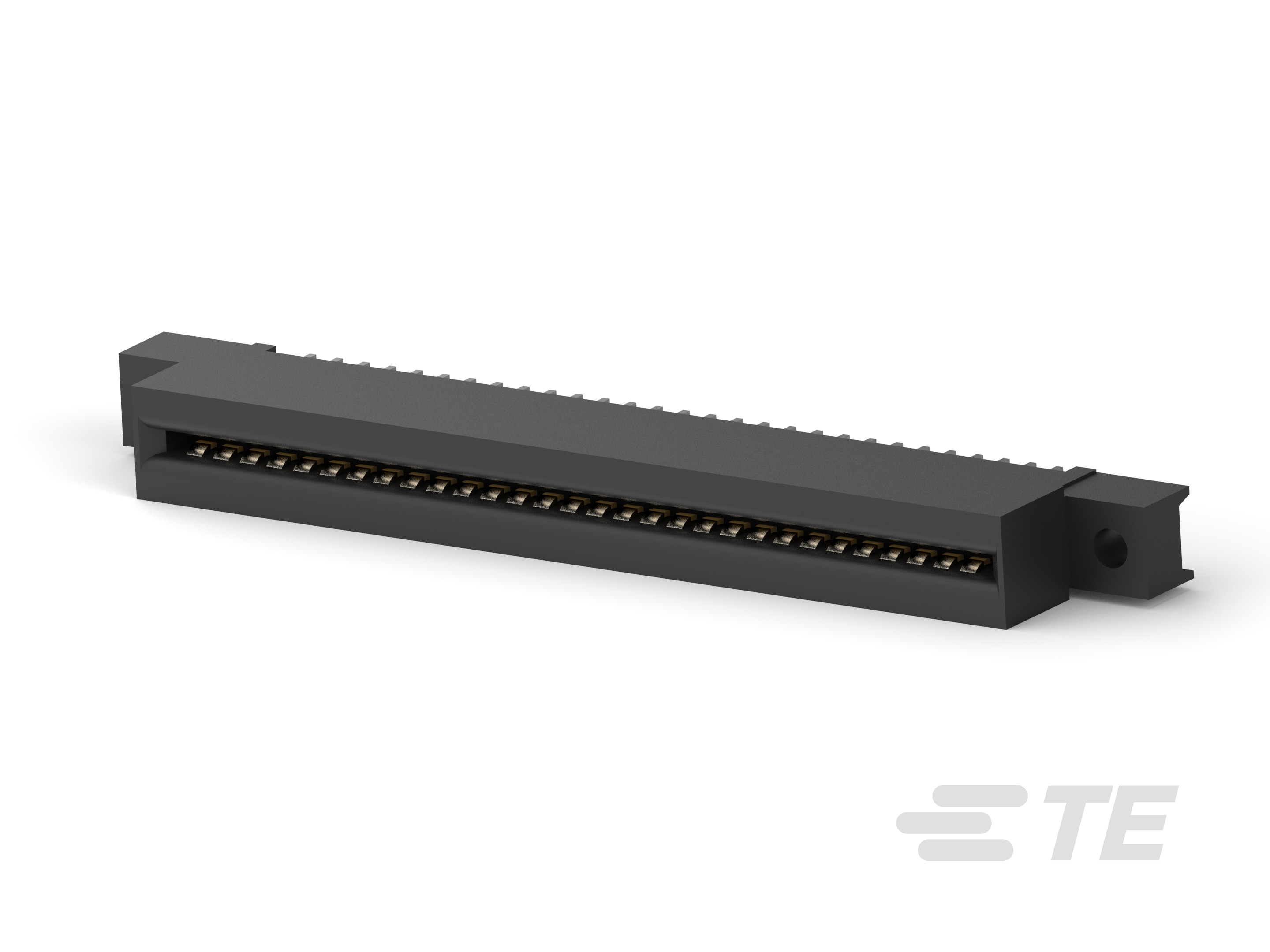

1-5530841-8

Active

Board-to-Board, 30 Position, 2.54 mm [.1 in] Centerline, Power & Signal, 60 Power Positions, 0 Signal Positions, Card Edge Power Connectors

1-5530841-8

Active

Board-to-Board, 30 Position, 2.54 mm [.1 in] Centerline, Power & Signal, 60 Power Positions, 0 Signal Positions, Card Edge Power Connectors

TE Internal #: 1-5530841-8
TE Internal Description: CONN SEC II 30 POS 100C/L

Connector System : Board-to-Board
Number of Positions : 30
Centerline (Pitch) : 2.54 mm [ .1 in ]
Contact Current Rating (Max) (A): 3
Circuit Application : Power & Signal

See All Features

More Less

Compatible Parts & Tooling

Documents

Product Drawings

CONNECTOR ASSEMBLY, STANDARD EDGE II, 2.54 [.100] CENTERLINE tif English
CONNECTOR ASSEMBLY, STANDARD EDGE II, 2.54 [.100] CENTERLINE ENG_CD_5530841_B.pdf English

CAD Files

Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
3D PDF 3D_CVM_CVM_1-5530841-8_B.pdf 3D
Customer View Model ENG_CVM_CVM_1-5530841-8_B.2d_dxf.zip English
ENG_CVM_CVM_1-5530841-8_B.3d_igs.zip English
ENG_CVM_CVM_1-5530841-8_B.3d_stp.zip English

Product Specifications

Application Specification ENG_SS_114-13018_C.pdf English
Product Specification ENG_SS_108-9039_M.pdf English
Qualification Test Report ENG_SS_501-227_A.pdf English
S_501-227_A.tif English

Features

Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

Product Type Features

Connector & Contact Terminates To : Printed Circuit Board
Connector & Housing Type : Receptacle
Connector Mates With : Printed Circuit Board
Connector System : Board-to-Board

Configuration Features

PCB Mount Orientation : Vertical
Number of Positions : 30
Number of Power Positions : 60
Number of Signal Positions : 0
Number of Dual Positions : 30
Keying & Polarized Position Locations : 0

Electrical Characteristics

Operating Voltage (VAC): 400
Operating Voltage (V): 400

Body Features

Primary Product Color : Black

Contact Features

Contact Base Material : Phosphor Bronze
PCB Contact Termination Area Plating Material : Tin
Contact Underplating Material : Nickel
PCB Contact Termination Area Plating Material Finish : Matte
Contact Mating Area Plating Material Thickness : .76 µm [ 30 µin ]
Contact Type : Socket
PCB Contact Termination Area Plating Material Thickness : 2.54 µm [ 100 µin ]
Contact Current Rating (Max) (A): 3
Contact Mating Area Plating Material : Gold

Termination Features

Termination Post & Tail Length : 4.75 mm [ .187 in ]
Termination Method to PCB : Through Hole - Solder

Mechanical Attachment

Connector Mounting Type : Board Mount
PCB Mount Retention Type : Mounting Ears
PCB Mount Retention : With
PCB Mount Alignment : Without
Mating Alignment : With
Mating Retention : Without
Mating Alignment Type : Keyed

Housing Features

Housing Material : Polyester GF
Centerline (Pitch) : 2.54 mm [ .1 in ]

Dimensions

Row-to-Row Spacing : 4.85 mm [ .191 in ]
Connector Height : 15.56 mm [ .68 in ]
Power Contact Centerline : 2.54 mm [ .1 in ]
Card Slot Depth : 7.56 mm [ .302 in ]

Usage Conditions

Operating Temperature Range : -55 – 85 °C [ -67 – 185 °F ]

Operation/Application

Circuit Application : Power & Signal

Industry Standards

UL Flammability Rating : UL 94V-0

Packaging Features

Packaging Method : Box
Packaging Quantity : 90

Other

Position Locations Omitted : 0
