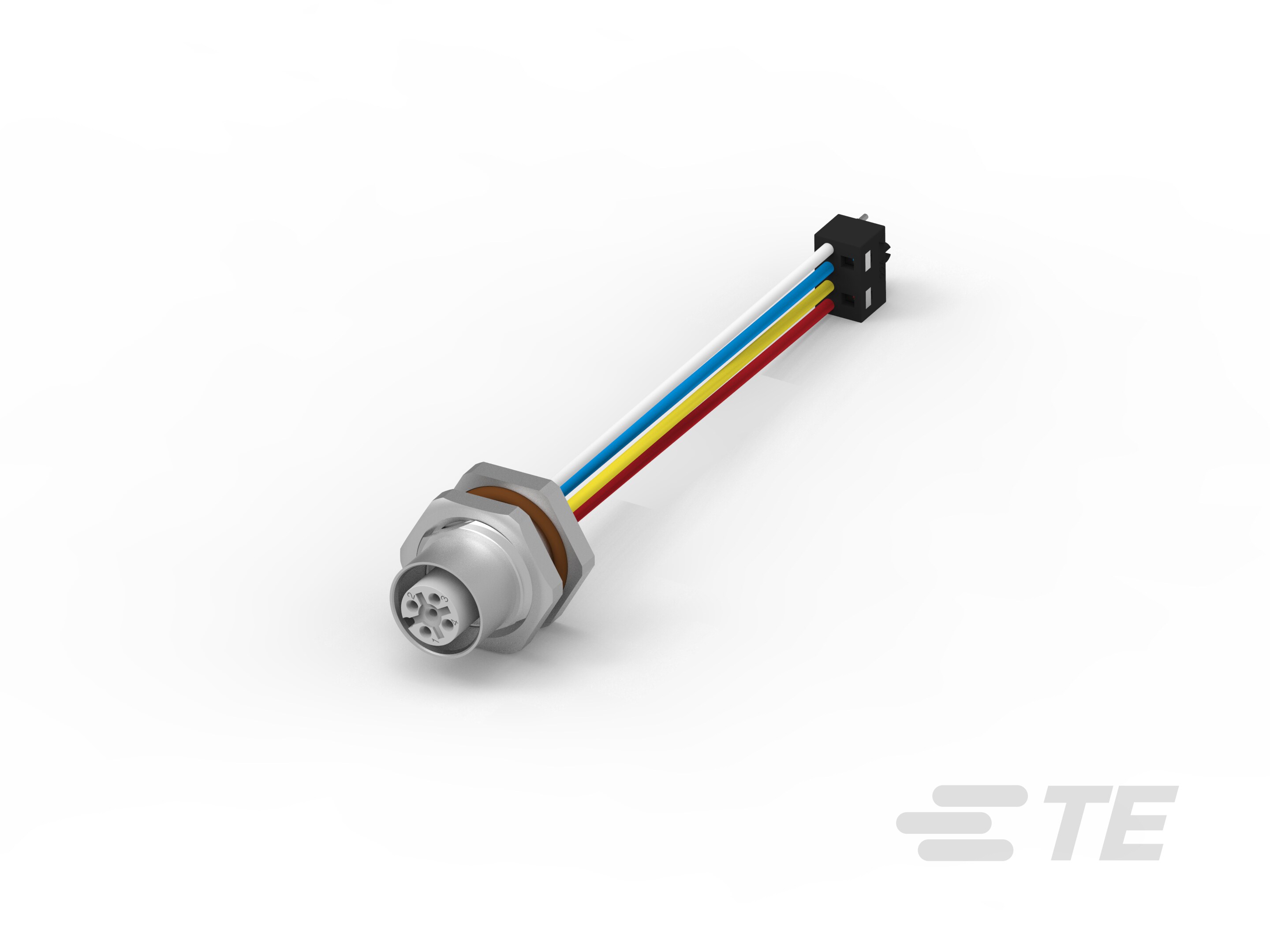

Name: M12 A-CODE 5,FEMALE REAR PANEL MOUNT
Brand: TE Connectivity (TE)

Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

Product Type Features

Prewired : No
Assembly Type : Electrical Connector
Connector Product Type : Connector Assembly
Circular Connector Shell Type : All Plastic
Assembly Requirement : Factory Assembled
Connector System : Cable-to-Cable
Sealable : Yes
Connector & Contact Terminates To : Wire & Cable
Circular Connector Type : Receptacle
Shell Type : Metal

Configuration Features

Factory Installed Backshell : With
Keying & Polarized Position Locations : A
Number of Positions : 5
Number of Power Positions : 0
Number of Signal Positions : 5
Contacts Preloaded : Yes

Electrical Characteristics

Operating Voltage (VDC): 50

Body Features

Primary Product Color : Metalized Silver
Environmental Protection Type : Sealed
Environmental Protection : IP67
Product Weight : 25 g [ .8832 oz ]
Shell Plating Material : Nickel
Shell Base Material : Zinc Alloy
Circular Connector Insulation Material Type : Low Fire Hazard Thermoplastic
Hermetically Sealed : Yes

Contact Features

Contact Current Rating (Max) (A): 4
Reverse Gender : Yes
Circular Connector Contact Type : Socket

Termination Features

Termination Method to Wire & Cable : Solder

Mechanical Attachment

Mating Alignment : With
Mating Retention Type : Threaded
Connector Mounting Type : Panel Mount & Wire Mount
Polarization Code : A
Mating Alignment Type : Keyed
Mating Retention : With

Housing Features

Circular Connector Shell Size : 18

Usage Conditions

IP Water Sealing Level : IP67
IP Dust Sealing Level : 6
Operating Temperature Range : -40 – 85 °C [ -40 – 185 °F ]

Operation/Application

Durability Rating (Cycles): 250
Circuit Application : Signal
Shielded : No

Industry Standards

Compatible With Approved Standards Products : IEC

Packaging Features

Packaging Quantity : 1

1-2823590-4

5 Position Circular Connector, Cable-to-Cable, Sealable, Wire & Cable, Signal, Panel Mount & Wire Mount, Reverse Gender, Nickel, M12 Rail Bulkhead PCB

1-2823590-4

5 Position Circular Connector, Cable-to-Cable, Sealable, Wire & Cable, Signal, Panel Mount & Wire Mount, Reverse Gender, Nickel, M12 Rail Bulkhead PCB

Number of Positions : 5

Connector System : Cable-to-Cable

Sealable : Yes

Connector & Contact Terminates To : Wire & Cable

Contact Current Rating (Max) (A): 4

Documents

Product Drawings

CAD Files

Datasheets & Catalog Pages

Product Change Notification

Features

Product Type Features

Prewired : No

Assembly Type : Electrical Connector

Connector Product Type : Connector Assembly

Circular Connector Shell Type : All Plastic

Assembly Requirement : Factory Assembled

Connector System : Cable-to-Cable

Sealable : Yes

Connector & Contact Terminates To : Wire & Cable

Circular Connector Type : Receptacle

Shell Type : Metal

Configuration Features

Factory Installed Backshell : With

Keying & Polarized Position Locations : A

Number of Positions : 5

Number of Power Positions : 0

Number of Signal Positions : 5

Contacts Preloaded : Yes

Electrical Characteristics

Operating Voltage (VDC): 50

Body Features

Primary Product Color : Metalized Silver

Environmental Protection Type : Sealed

Environmental Protection : IP67

Product Weight : 25 g [ .8832 oz ]

Shell Plating Material : Nickel

Shell Base Material : Zinc Alloy

Circular Connector Insulation Material Type : Low Fire Hazard Thermoplastic

Hermetically Sealed : Yes

Contact Features

Contact Current Rating (Max) (A): 4

Reverse Gender : Yes

Circular Connector Contact Type : Socket

Termination Features

Termination Method to Wire & Cable : Solder

Mechanical Attachment

Mating Alignment : With

Mating Retention Type : Threaded

Connector Mounting Type : Panel Mount & Wire Mount

Polarization Code : A

Mating Alignment Type : Keyed

Mating Retention : With

Housing Features

Circular Connector Shell Size : 18

Usage Conditions

IP Water Sealing Level : IP67

IP Dust Sealing Level : 6

Operating Temperature Range : -40 – 85 °C [ -40 – 185 °F ]

Operation/Application

Durability Rating (Cycles): 250

Circuit Application : Signal

Shielded : No

Industry Standards

Compatible With Approved Standards Products : IEC

Packaging Features

Packaging Quantity : 1
