Fine Pitch Board-to-Board Connectors

Small, but Mighty Fine

Our fine pitch board-to-board connectors are optimized interconnect solutions for smaller and thinner electronic consumer products. They are designed to meet the miniaturization trend in the market. Our product series features a smaller centerline, narrower body, and lower mating height. Plus, there are various advantages including formed contacts to provide contact points on rolled surface for high reliability, enhanced usability for easy mating and robustness, sufficient area for pick and place, Ni-barrier for solder wicking, and more. Our design capability allows us to continue to develop innovative new products in the fine pitch board-to-board connector series.

VIEW PRODUCT DETAILS

Product Features

Fine Pitch Board-to-Board Connectors

Long self-alignment distance makes for easy assembling and mating
Sufficient pick-and-place area for standard nozzle size
Multiple-point contact system creates firm mating
Ni-barrier on signal contacts minimizes solder wicking issues

Select Applications

Smart phone
Mobile phone
Tablet PC
Portable game
Portable music player
Drones
Smart Door Bell
Smart Thermostat
Camera related application

Quick Reference Guide

Fine Pitch Board-to-Board Connectors (English)

When it comes to high-reliability in small spaces, TE delivers with fine pitch board-to-board connectors and EMI shielded board-to-flexible printed circuit connectors. These connectors have robust anchor points for durability, allowing them to be a design-flexible and effective solution for a variety of today’s smart devices.

View All

Featured Product

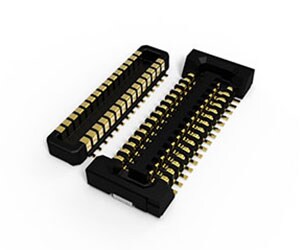

0.4mm Pitch Board-to-Board Connector, 0.98 Stack Height
0.4mm Pitch Centerline Mating Height: 0.98mm, Width: 2.98mm Current Rating: 0.3A, Voltage: 30V Multiple Point Contact System

0.4mm Pitch Board-to-Board Connector, 0.98 Stack Height — 0.4mm pitch BtB/BtFPC connector

0.8mm stacked height, current support up to 12A for power pin — 0.8mm stack height, current support up to 12A for power pin

Title: Fine Pitch Board-to-Board Connector Series

(Onscreen: Eric Himelright, Vice President, Internal Interconnect Data and Devices, TE Connectivity)

Narration from Eric Himelright:

“As an innovative leader in connectivity, TE Connectivity is proud to introduce the 0.4 millimeter fine pitch board-to-FPC connector solution with integrated EMI shield.

One of the lowest profile height board-to-board connectors in the market, with the industry’s first integrated EMI shield.”

(Onscreen: Lowest height board-to-board connectors in the market, with the industry’s first integrated EMI shield)

“This solution enables our customers to deliver even slimmer smartphones, tablets, and smart portable devices, while still delivering even higher data speeds.”

(Onscreen: 0.9 mm Total Height Equal to 0.5 mm Stacking Height BTB Connector)

“Just imagine, this new product at less than one millimeter total height includes a .5 millimeter receptacle connector, a standard .08 millimeter FPC, and a .3 millimeter stiffener plate.”

(Onscreen: 0.52 mm Receptacle Connector | 0.08 mm FPC |0.3 mm Stiffener Plate)

“We believe the unique design with integrated shielding capability is something our customers are going to love. It lowers the overall profile height of their devices, and streamlines their internal reliability testing process. Some important features of this exciting new product include:

(Onscreen: Full Shield Provides EMI protection)

A full shield providing EMI protection, specifically for high-speed data transmission,

(Onscreen: Visible Mating Alignment | Simple Mating and Un-mating)

…visible mating alignment, which allows for simple mating and un-mating, and

(Onscreen: Spring Clip Provide Robust and Strong Retention)

…a spring clip, which provides robust shield retention.

Our new EMI-shielded board-to-flex connector is part of our complete line-up of fine pitch board-to-board connector solutions.

Our commitment is producing high performance, high reliability, board-to-board and board-to-FPC connectors that enable our customers to offer some of the most advance and slimmest consumer devices. Our existing 0.4 millimeter pitch board-to-board connector has a robust body structure to eliminate housing breakage…

(Onscreen: Robust Body Structure Eliminates Housing Breakage)

…and is manufactured in a highly automated production environment to ensure consistent quality. Our new 0.35 millimeter pitch board-to-board connector with a locking peg design…

(Onscreen: Peg Locking Mechanism Provides Stronger Retention Force)

…provides a stronger retention force than industry alternatives. The tighter pitch also enables even smaller board footprints. Everyday connectors are rolling off our production line providing high quality, high technology products. Each product is carefully assembled and rigorously tested to ensure industry reliability."

(Onscreen: Eric Himelright, Vice President, Internal Interconnect Data and Devices, TE Connectivity)

"No matter where the fine pitch board-to-board connector is applied: smartphones, tablets, or wearables – we strive to deliver the highest quality and the best performance for you. We are TE Connectivity.”

(Onscreen: Te.com | search on TE fine pitch BTB)
