RF Connectors With Performance Up To 12 GHz

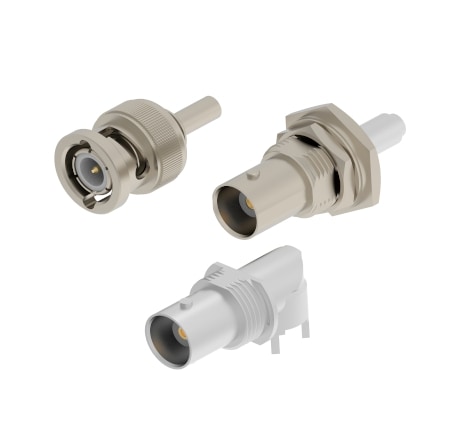

TE's BNC RF connector family with bayonet locking coupling provides highly reliable, quick connect/disconnect coaxial connections. 50 and 75 Ohm plugs and jacks are available in straight and right angle orientations as well as PCB mount and bulkhead mount options.
12G-SDI BNC RF Connectors

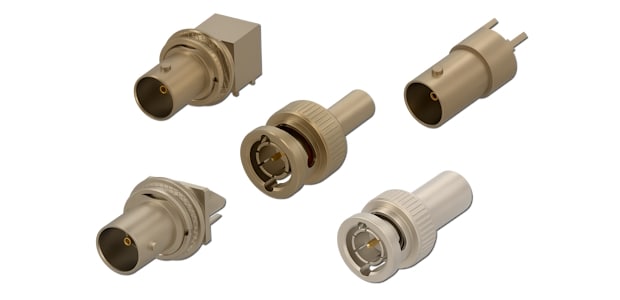

TE’s 12G-SDI (Serial Digital Interface) BNC RF connectors are 75-ohm RF coaxial connectors designed to carry a 12 Gbps SDI video signal. Compliant with SMPTE ST 2082, this single link standard enables transport of 4K/Ultra HD uncompressed video using one cable as opposed to quad link or dual link SDI.
FEATURES
- High Resolution VideoTransport - Full 4K/Ultra HD (UHD) transmission without cable bundling
- Supports UHD with one cable
- RF engineered for minimal return loss and low jitter in 12G broadcast paths
- DC–12 GHz bandwidth
- ≥ 30 dB return loss @ DC–6 GHz
- ≥ 15 dB return loss@ DC–12 GHz
- Low contact resistance
- SMPTE ST 2082 compliant
- 75 Ω impedance
- Bayonet coupling mechanism
- Rated to 500+ mating cycles
- Compatible with industry standard broadcast coaxial cables
- Board mount and cable mount connectors available
High-Density BNC Connectors

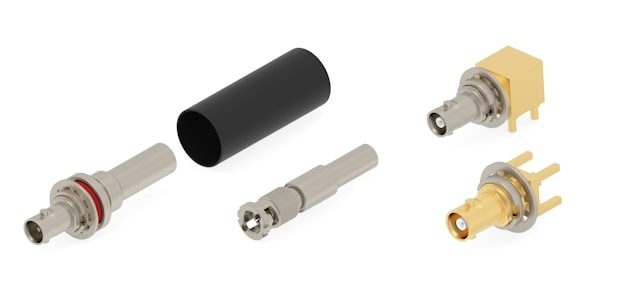

High-density BNC connectors from TE Connectivity (TE) provide a compact design solution for large video transmission systems, broadcast systems, and video signal applications. High-density BNC connectors are smaller than traditional BNC connectors and are intended to be arranged in tighter configurations than traditional BNC connectors, allowing for up to four times as many interconnects in the same footprint.
