Designed for Flexibility and Ease of Use

Our high voltage modular die platform can accommodate both TE and non-TE terminals.

Connect with Sales and Support
Brochure
High Voltage Cable Processing Solutions (English)

HV Modular Die Sets

The TE modular die platform can accomodate a large variety of both TE and non-TE terminals. This is only a cross section of TE die sets and terminals available. For a current list of available die sets please click on the products tab above. Don't see what you need? Please contact your TE Application Tooling sales representative for additional guidance.

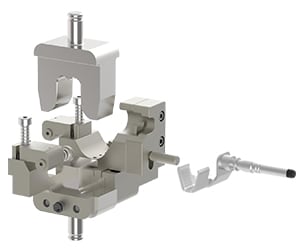

90° Charger Inlet
90° Charger Inlet

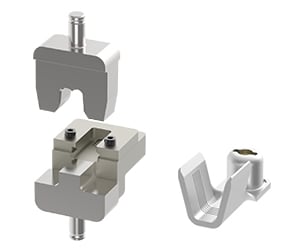

HVP 800 Series for Open Barrel Terminals
HVP 800 Series for Open Barrel Terminals

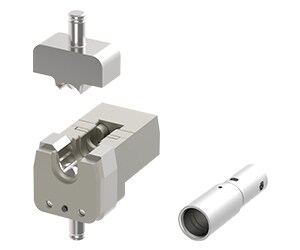

HVP 800 Series for Closed Barrel Terminals
HVP 800 Series for Closed Barrel Terminals

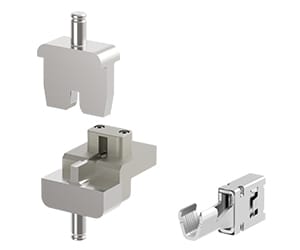

PCON 12 Series
PCON 12 Series

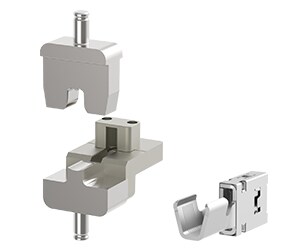

PCON 18 Series
PCON 18 Series

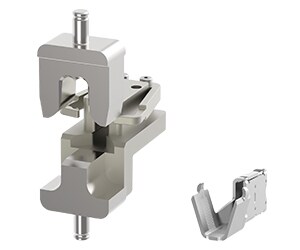

PCON 21 Series
PCON 21 Series

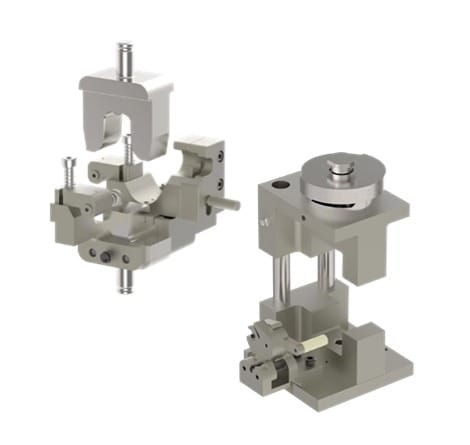

HV Modular Die Holders

Loaded with Features

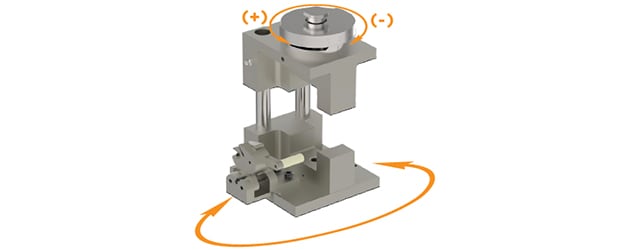

Fine Adjust Feature
Fine adjust feature allows for faster, more precise crimp height adjustment. The wire clamp assembly, handle and die sets can easily be adjusted to handle left or right side wire processing.

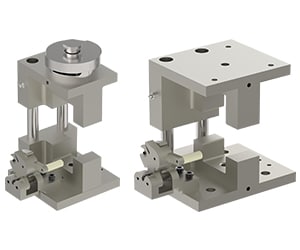

HV Modular Die Holders
With fine adjust for HV-20 Machines (left); For AT-66 Machines (right)The multi-platform design of our modular HV die holders allows for use in a variety of TE and non-TE terminators.

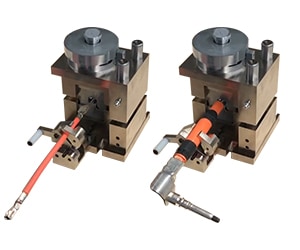

Spring-loaded wire clamp assembly
Spring-loaded wire clamp assembly accommodates a variety of different wire sizes to match your processing needs.

Modular Die Holder Parts

Description Part Number
HV MOD Die Holder w/Fine Adjust (Manual) 2305470-1
HV MOD Die Holder w/Fine Adjust (Automatic) 2305470-2
HV MOD Die Holder w/o Fine Adjust For AT-66 Terminator only
(can not be used in HV-20 or HF-20 Terminators)		 2326378-1
High Voltage Wire Processing Equipment

Product Group

High Voltage Wire Processing Equipment

Our high voltage wire processing solutions give you the power needed to terminate high voltage connectors in a flexible, affordable and compact bench-top solution.
