EC1464-000

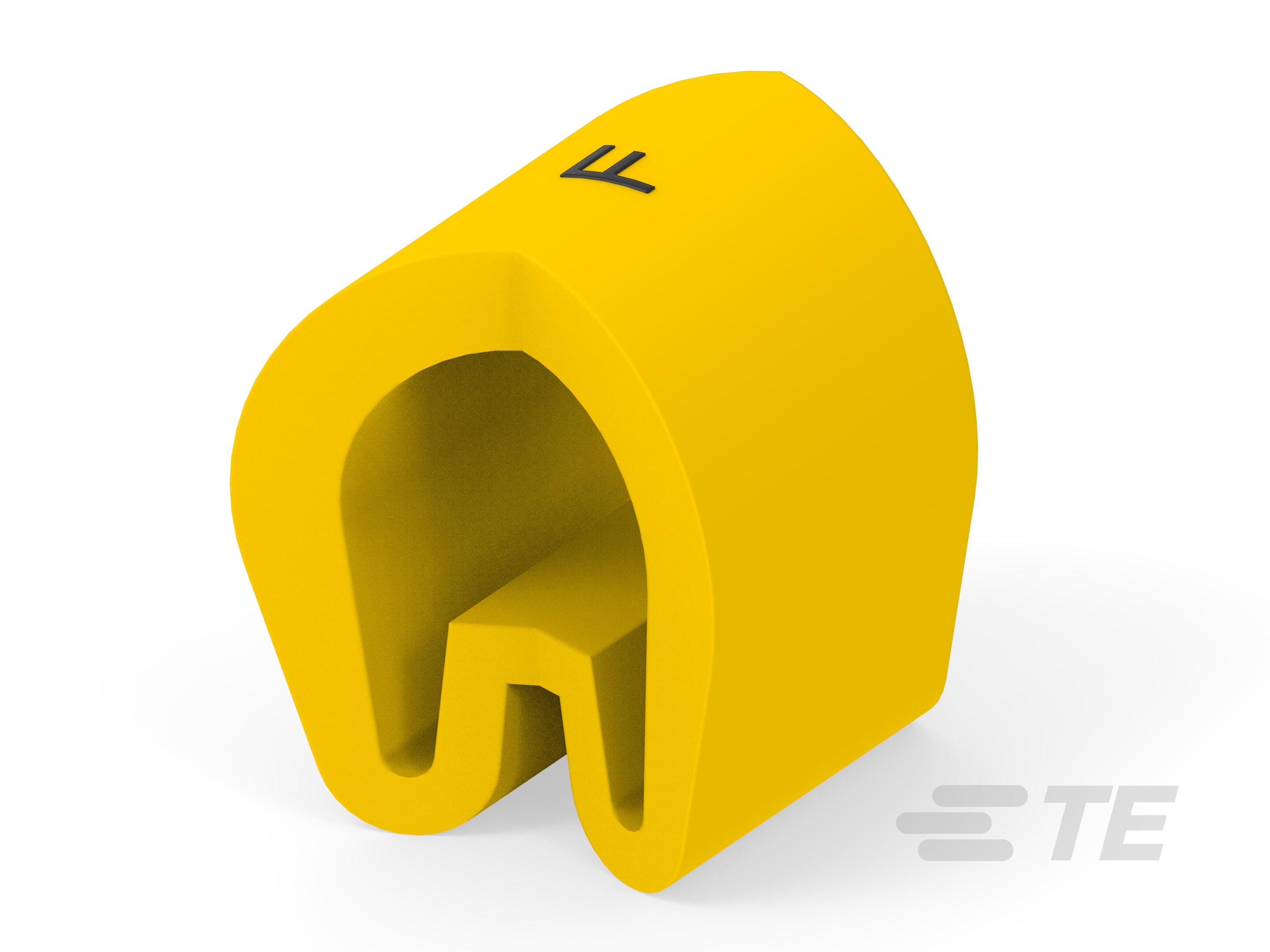

Push-On Pre-Printed Marker, Yellow, Straight Cut, F Marking, 6 mm [.236 in] Width, Black Print, PVC, Z-Type Marker
EC1464-000
Push-On Pre-Printed Marker, Yellow, Straight Cut, F Marking, 6 mm [.236 in] Width, Black Print, PVC, Z-Type Marker
-
- Z-Type Marker
- TE Internal #: EC1464-000
- TE Internal Description: 06223415
- Alias #: 06223415 6-1198207-1
-
Marker Style : Push-On
-
Compatible Cable Diameter Range : 5.5 – 8.9 mm [ .22 – .35 in ]
-
Primary Product Color : Yellow
-
Marker Cut : Straight
-
Marking Details : F
Documents
Product Drawings
- MARKER Z TYPE SIZE 23 STRAIGHT / CHEVRON CUT ENG_CD_1601A0008_8.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_EC1464-000_8.pdf 3D
- Customer View Model ENG_CVM_CVM_EC1464-000_8.2d_dxf.zip English
- ENG_CVM_CVM_EC1464-000_8.3d_igs.zip English
- ENG_CVM_CVM_EC1464-000_8.3d_stp.zip English
Datasheets & Catalog Pages
- Z-TYPE Marker Technical datasheet ENG_DS_TTDS-026_2_TTDS-026.pdf English
- Cable Identification Product Shelf Life ENG_DS_408-121006_6.pdf English
Product Specifications
- RW-2535 Specification for Pre-Printed Markers ENG_SS_RW-2535_3.pdf English
