Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

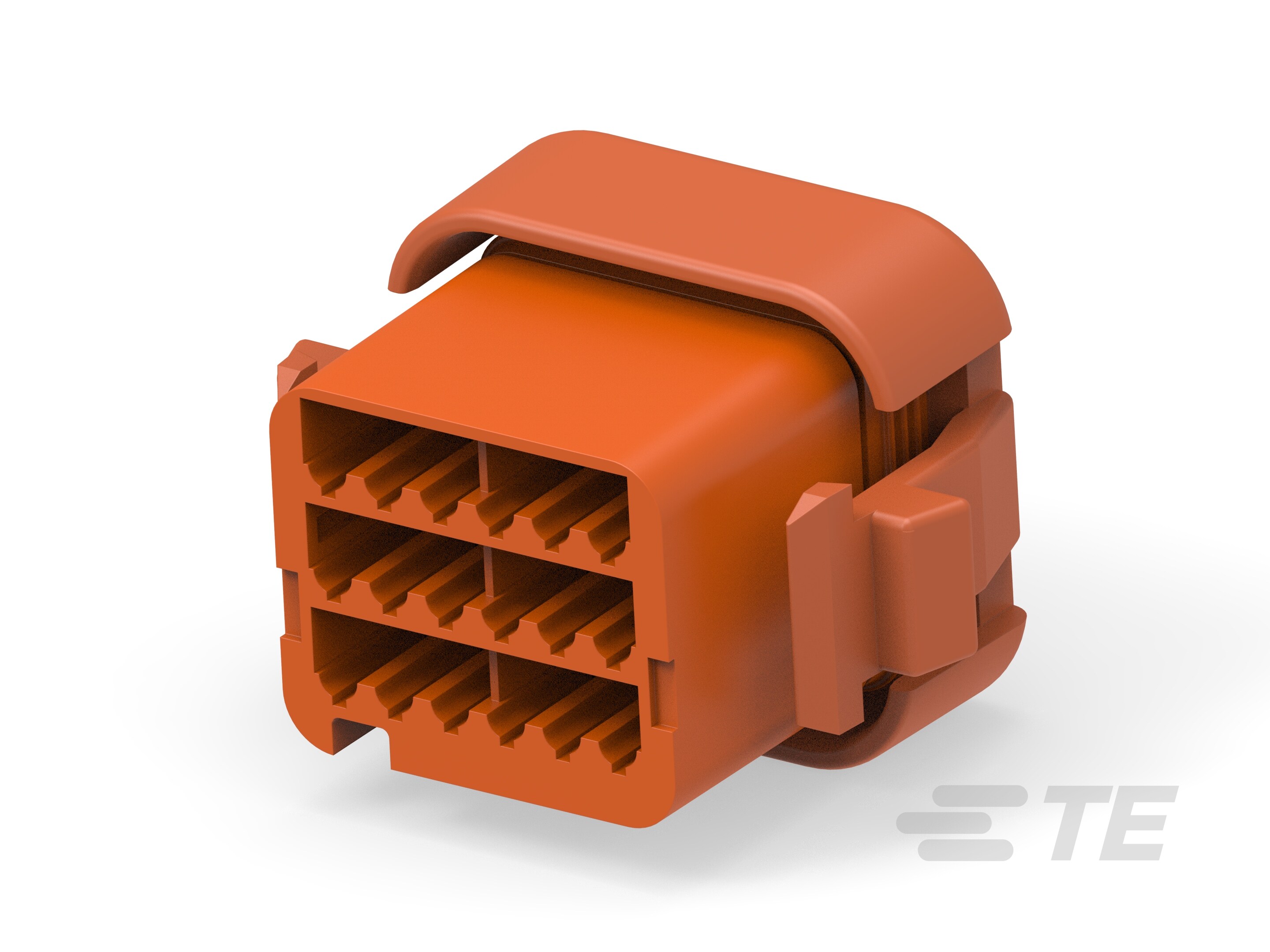

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : No

• Connector & Housing Type : Housing for Female Terminals

• Connector System : Wire-to-Wire

• Sealable : Yes

• Primary Locking Feature : Integrated in Housing

• Connector & Contact Terminates To : Wire & Cable

• Number of Positions : 18

• Number of Rows : 3

• Operating Voltage (VDC): 250

• Operating Voltage (VAC): 250

• Nominal Voltage Architecture (V): 250

• Cable Exit Angle : 180°

• Primary Product Color : Brown

• Connector & Keying Code : D

• Contact Type : Socket

• Contact Size : Size 16

• Mating Pin Diameter : 1.59 mm [ .063 in ]

• Contact Current Rating (Max) (A): 13

• Mating Alignment : With

• Mating Alignment Type : Keyed

• Terminal Position Assurance : Yes

• Strain Relief : With

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Housing Material : PA GF

• Centerline (Pitch) : 4.44 mm [ .175 in ]

• Connector Height : 35.98 mm [ 1.417 in ]

• Product Length : 35.69 mm [ 1.405 in ]

• Product Width : 53.54 mm [ 2.108 in ]

• Compatible Insulation Diameter Range : 2.23 – 3.68 mm [ .088 – .145 in ]

• Row-to-Row Spacing : 7.62 mm [ .3 in ]

• Operating Temperature (Max) : 125 °C [ 257 °F ]

• Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

• Circuit Application : Power

• UL Flammability Rating : Not Tested

• IP Rating : Not Tested

• Packaging Method : Box

• Packaging Quantity : 200
