This product is not currently available. For more information, including distributor inventory, please contact us.

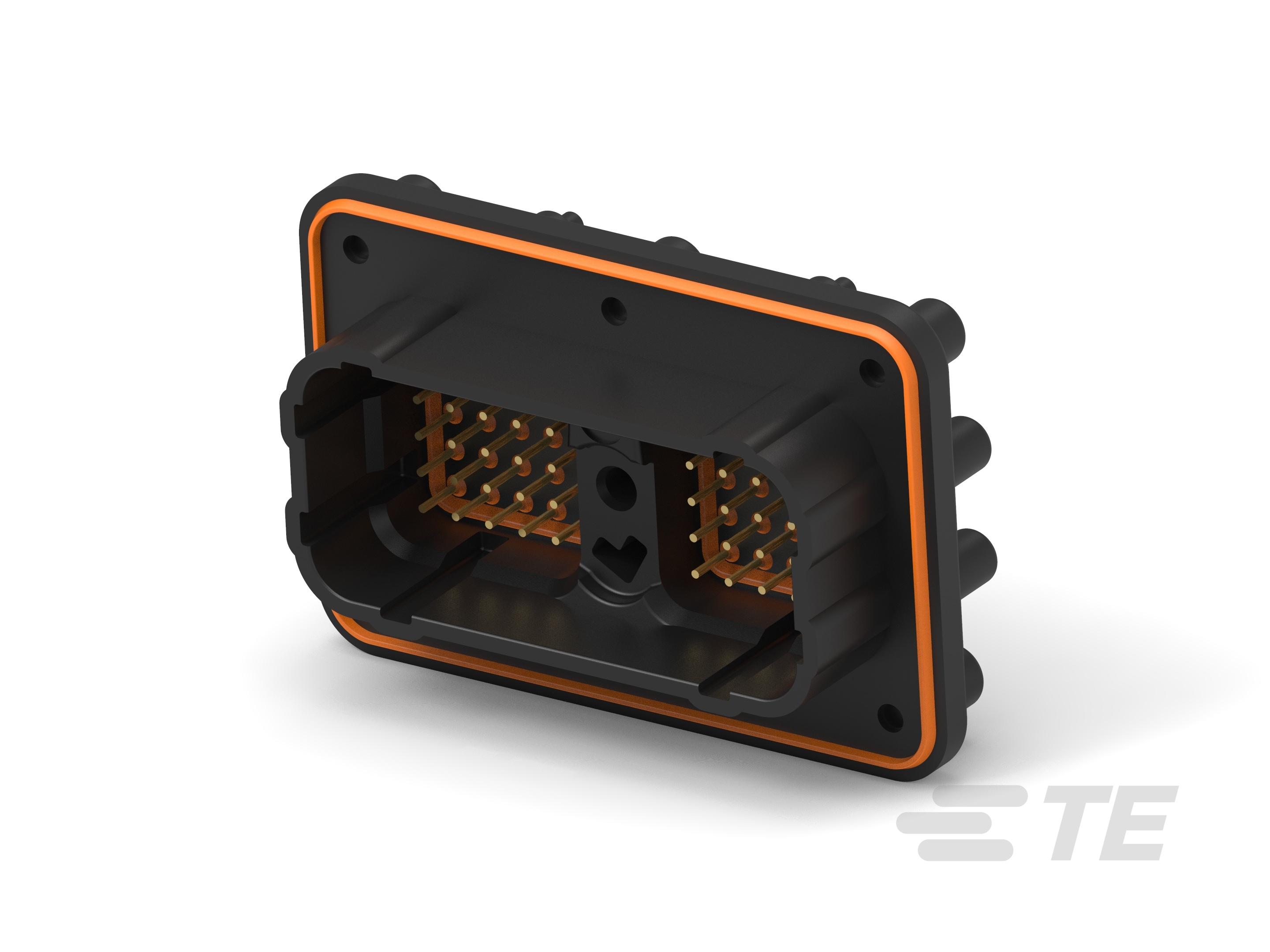

DRC22-50P07
Vertical, Wire-to-Board, 50 Position, 5 Row, 4.42mm [.174in] Centerline, Gold (Au), Sealable, Wire & Cable, DEUTSCH DRC
DRC22-50P07
Vertical, Wire-to-Board, 50 Position, 5 Row, 4.42mm [.174in] Centerline, Gold (Au), Sealable, Wire & Cable, DEUTSCH DRC
-
- DEUTSCH
- DEUTSCH DRC
- TE Internal #: DRC22-50P07
- TE Internal Description: HDR, 50P, BLK, ST, AU/NI/CU, 07
- All DEUTSCH DRC Headers (44)
-
PCB Mount Orientation : Vertical
-
Contact Current Rating (Max) (A): 7.5
-
Termination Method to PCB : Through Hole - Solder
-
Sealable : Yes
-
Centerline (Pitch) : 4.42 mm [ .174 in ]
Documents
Product Drawings
- 50P RECP ASM ENG_CD_DRC22-50PXX_E.pdf English
CAD Files
- 3D PDF 3D_CVM_CVM_DRC22-50P07_99_c-drc22-50p07-99-3d.pdf 3D
- Customer View Model ENG_CVM_CVM_DRC22-50P07_99_c-drc22-50p07-99.2d_dxf.zip English
- ENG_CVM_CVM_DRC22-50P07_99_c-drc22-50p07-99.3d_igs.zip English
- ENG_CVM_CVM_DRC22-50P07_99_c-drc22-50p07-99.3d_stp.zip English
Datasheets & Catalog Pages
- TERMINALS AND CONNECTORS ENG_CS_TS_ICT_T_C_CAT_A.pdf English
- CONNECTOR SELECTOR ENG_DS_1-1773962-8_A.pdf English
Product Specifications
- Product Specification ENG_SS_108-151073_A.pdf English
- ENG_SS_108-151052_A.pdf English
- Qualification Test Report ENG_SS_501-151052_A.pdf English
- ENG_SS_501-151073_A.pdf English
Agency Approvals
- UL Report ENG_AAD_UL_CERT_E28476_20090715_C1_F.pdf English
Product Change Notification
- View Product Change Notification Login required to access product change notifications
Features
Select Features & Characteristics to Find Similar Products
You can find similar products by using the checkboxes to select the attributes you would like to keep the same. When you click on 'View Similar Products' you can further narrow your search using filters to find products with differing attributes.
Please review product documents or contact us for the latest agency approval information.
Please Note: Use the Product Drawing for all design activity.
The only matching product is this current one. Please revise your search to continue.
0 similar products are available. Please choose different features or characteristics.
Something went wrong. Please try again
Product Features & Characteristics
Select All
Product Type Features
-
Connector Shape : Rectangular
-
Header Type : Fully Shrouded
-
Mixed & Hybrid Header : No
-
Connector Product Type : Connector Assembly
-
Sealable : Yes
-
Connector System : Wire-to-Board
-
Connector & Contact Terminates To : Wire & Cable
Configuration Features
-
Number of Sections : 2
-
Number of Signal Positions : 50
-
PCB Mount Orientation : Vertical
-
Number of Positions : 50
-
Number of Rows : 5
Electrical Characteristics
-
Nominal Voltage Architecture (V): 12 | 24
-
Voltage Rating (Max) (VDC): 250
-
Voltage Rating (Max) (VAC): 250
-
Operating Voltage (VDC): 250
-
Operating Voltage (VAC): 250
Body Features
-
Connector & Keying Code : 07
-
Primary Product Color : Black
Contact Features
-
Contact Type : Pin
-
Mating Pin Diameter : 1.02 mm [ .04 in ]
-
Contact Current Rating (Max) (A): 7.5
-
Contact Mating Area Plating Material : Gold (Au)
Termination Features
-
Termination Method to PCB : Through Hole - Solder
Mechanical Attachment
-
PCB Mount Alignment : With
-
Mating Alignment : With
-
PCB Mount Retention Type : Mounting Screw
-
Mounting Holes : With
-
PCB Mount Retention : With
-
Mating Retention Type : Locking Interface
-
Panel Mount Feature : With
-
Connector Mounting Type : Board Mount
Housing Features
-
Centerline (Pitch) : 4.42 mm [ .174 in ]
Dimensions
-
Connector Length : 57.15 mm [ 2.25 in ]
-
Profile Height from PCB : 28.32 mm [ 1.115 in ]
-
PCB Thickness (Recommended) : .78 – 2.36 mm [ .031 – .093 in ]
-
Connector Width : 83.64 mm [ 3.293 in ]
Usage Conditions
-
Operating Temperature (Max) : 125 °C [ 257 °F ]
-
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
Operation/Application
-
Shielded : No
-
Circuit Application : Power & Signal
Industry Standards
-
UL Flammability Rating : UL 94V-0
-
IP Rating : Not Tested
Packaging Features
-
Packaging Method : Box
-
Packaging Quantity : 40
Other
-
Interface Number : DRC20-50PXX
