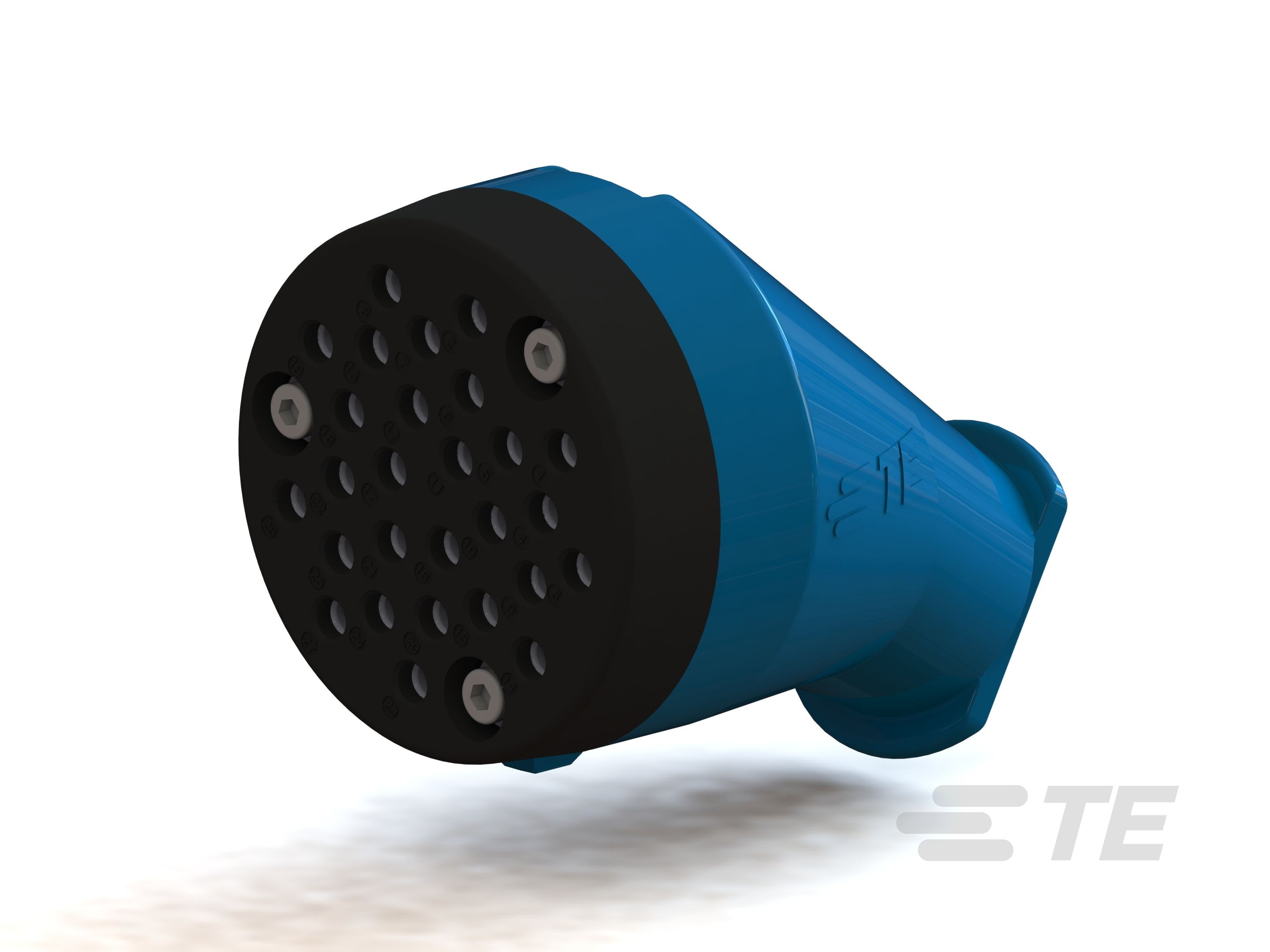

Multiple Unit Receptacle, Female, MU27

Multiple Unit Receptacle, Female, MU27-CAT-R131-M88B
  • DEUTSCH
|
  • DEUTSCH MU27P
Multiple Unit (MU) 27 pin female receptacle used to convey locomotive functions between units. Allows a single point to issue up to 27 commands (control & indication signals) to all or some of the vehicles simultaneously.
More Less

Product Features

  • Connector System : Cable-to-Cable

  • Number of Positions : 27

  • Connector & Contact Terminates To : Wire & Cable

  • Contact Current Rating (Max) (A): 30

  • Circuit Application : Signal

Available from

LADD Inc

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Connector System  Cable-to-Cable

  • Connector & Contact Terminates To  Wire & Cable

  • Circular Connector Type  Plug

  • Shell Type  Metal

  • Prewired  No

  • Product Type  Connector Assembly

Configuration Features

  • Number of Positions  27

Electrical Characteristics

  • Operating Voltage (VAC) 600

Body Features

  • Shell Plating Material  Trivalent Chromium

  • Shell Base Material  Aluminum Alloy

  • Circular Connector Insulation Material Type  Low Fire Hazard Thermoplastic

Contact Features

  • Contact Current Rating (Max) (A) 30

  • Reverse Gender  No

  • Circular Connector Contact Type  Socket

Mechanical Attachment

  • Mating Alignment Type  Keyed

  • Mating Retention  Without

Dimensions

  • Wire Size (AWG) 10, 14 – 12

Usage Conditions

  • Operating Temperature Range  -40 – 100 °C [ -40 – 212 °F ]

  • Fluid Resistance  Moisture/Spray

Operation/Application

  • Circuit Application  Signal

  • Shielded  No

Packaging Features

  • Packaging Quantity  1

Other

  • Field Serviceable  Yes

Reference Number

  • TE Internal Number CAT-R131-M88B
