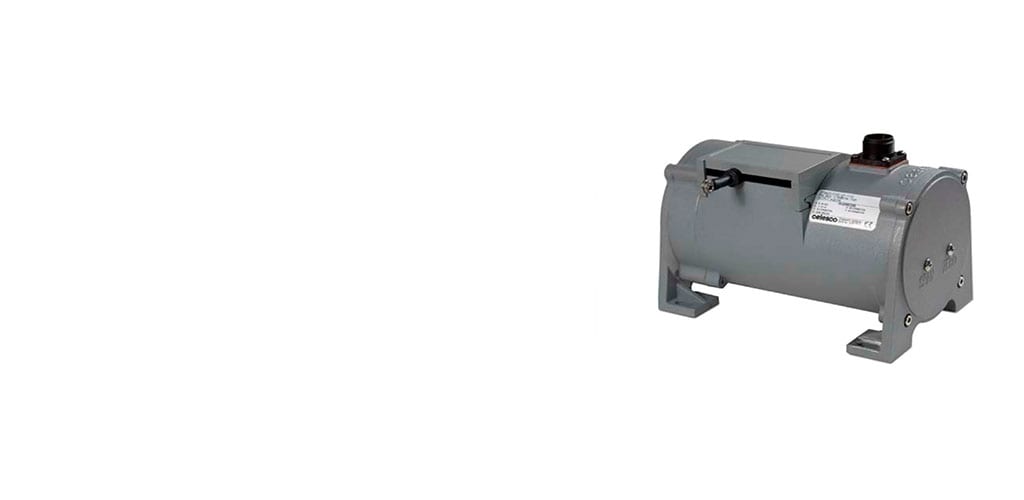

VLS String Pot with Cable Disconnect

VLS String Pot with Cable Disconnect-CAT-CAPS0044
  • MEAS
|
  • MEAS PT9
The VLS9000 series VLS string pot with cable disconnect is an option available for our PT9101, PT9150, PT9420, PT9510 and PT9600 cable extension transducers that prevents the measuring cable from ever reaching a damaging velocity during an accidental free release.
More Less
Connect with Us

Product Features

  • Position Sensor Product Type : Velocity Limiting System

  • Full Stroke Range (mm): 3810 | 12700 | 25400

  • Full Stroke Range (in): 150 | 500 | 1000

  • Output Signal Type : 4 – 20 mA | Incremental Encoder

  • Accuracy (% of FS): ±.04 | ±.12

  • Repeatability (% of FS): .02 | .05

Available from

LADD Inc
Overview
The VLS9000 velocity limiting system (VLS) prevents expensive unscheduled downtime due to accidental cable mishandling or attachment failure.

This option is ideal for applications that require frequent cable disconnection and re-connection. It prevents expensive unscheduled downtime due to accidental cable mishandling or attachment failure. The guides below define the PT9000 data-sheets which support VLS as a Standard Option with quick delivery. Please contact us for availability of datasheets or options not shown.

Benefits

  • Prevents damage from cable free release.
  • Provides safer operation.
orange bar
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Position Sensor Product Type  Velocity Limiting System

Body Features

  • Case Material  303 Stainless Steel | Aluminum | Stainless Steel

Dimensions

  • Full Stroke Range (mm) 3810 | 12700 | 25400

  • Full Stroke Range (in) 150 | 500 | 1000

Usage Conditions

  • Accuracy (% of FS) ±.04 | ±.12

  • Operating Temperature Range (°C) -40 – 90 | -18 – 71

  • Operating Temperature Range (°F) -40 – 194 | 0 – 160

Operation/Application

  • Output Signal Type  4 – 20 mA | Incremental Encoder

Industry Standards

  • IP Rating  IP65 | IP67 | IP68

  • Hazardous Area Approval  Intrinsically Safe | None

Other

  • Encoder Drive  No

  • Repeatability (% of FS) .02 | .05

  • Measuring Cable  .034 Inch Dia Nylon-Coated Stainless Steel | .047 Inch Dia Stainless Steel | All Plastic | Bare Stainless Steel | Nylon-Coated Stainless Steel
