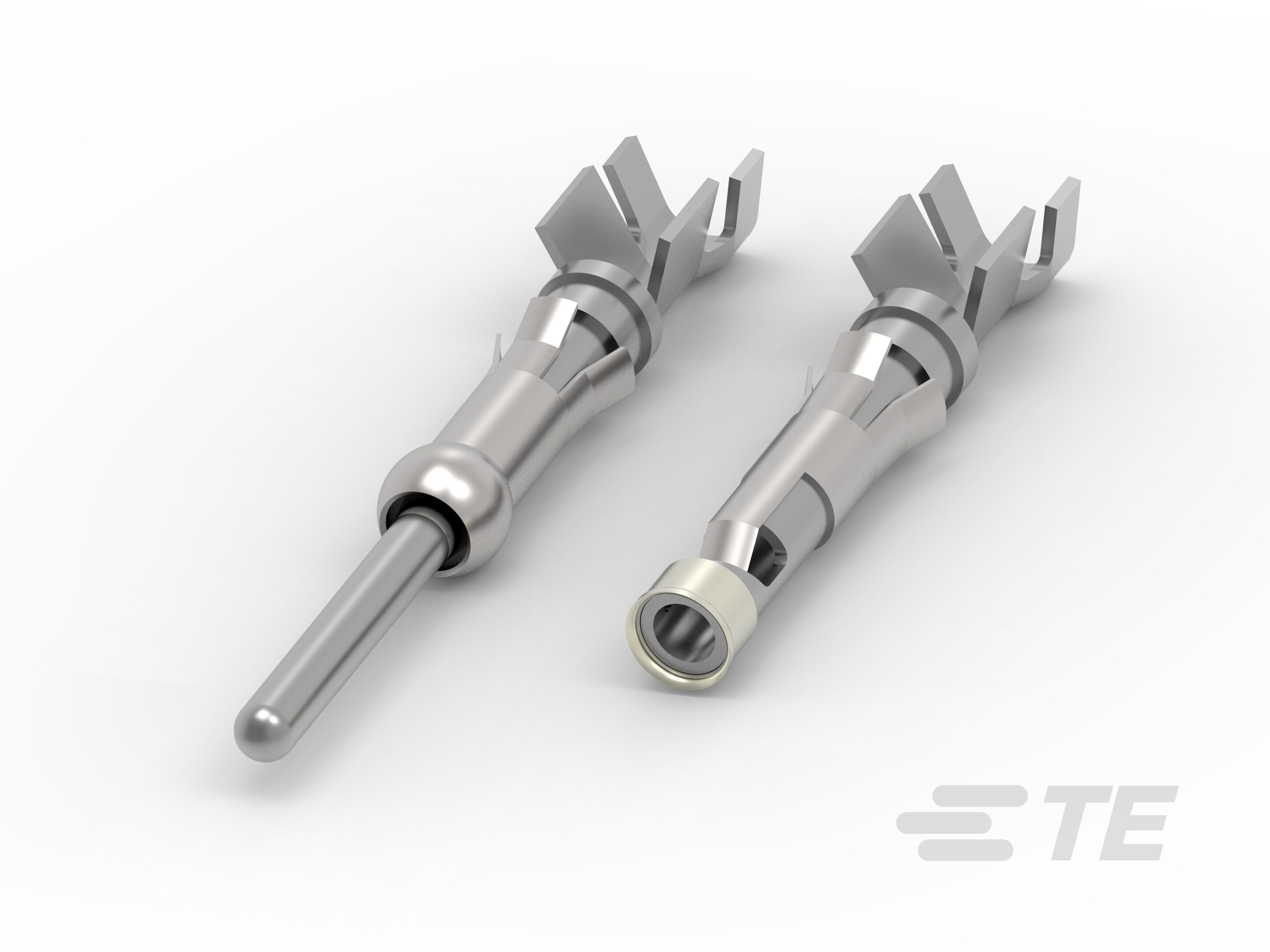

Strip Pin and Socket Contacts, Type III, High Current

Please review product documents or contact us for the latest agency approval information.

• Contact Underplating Material  Nickel

• Contact Orientation  Straight

• Contact Mating Area Plating Material Thickness (µm) .76, 2.54

• Contact Mating Area Plating Material Thickness (µin) 30, 100

• Wire Contact Termination Area Plating Material Finish  Bright, Matte

• Wire Contact Termination Area Plating Thickness (µm) .12 – .2, 2.54

• Wire Contact Termination Area Plating Thickness (µin) 5 – 8, 100

• Contact Underplating Material Thickness (µm) .76, 1.27

• Contact Underplating Material Thickness (µin) 30, 50

• Mating Pin Diameter  1.57 mm [ .062 in ]

• Contact Type  Pin, Socket

• Contact Mating Area Plating Material  Gold, Tin

• Wire Contact Termination Area Plating Material  Gold, Tin

• Contact Retention Within Housing  With

• Contact Size  Size 16

• Contact Base Material  Copper Nickel Alloy

• Contact Current Rating (Max) (A) 25

• Termination Method to Wire & Cable  Crimp

• Product Terminates To  Wire & Cable

• Wire Insulation Support  With

• Compatible Insulation Diameter Range (mm) 2.03 – 2.54, 2.79 – 3.81

• Compatible Insulation Diameter Range (in) .08 – .1, .11 – .15

• Wire Size (AWG) 18 – 14

• Wire Size (mm²) .8 – 2

• Operating Temperature Range (°C) -55 – 150, -55 – 90

• Operating Temperature Range (°F) -67 – 194, -67 – 302

• Circuit Application  Power & Signal

• Packaging Method  Reel

• Packaging Quantity  4000
