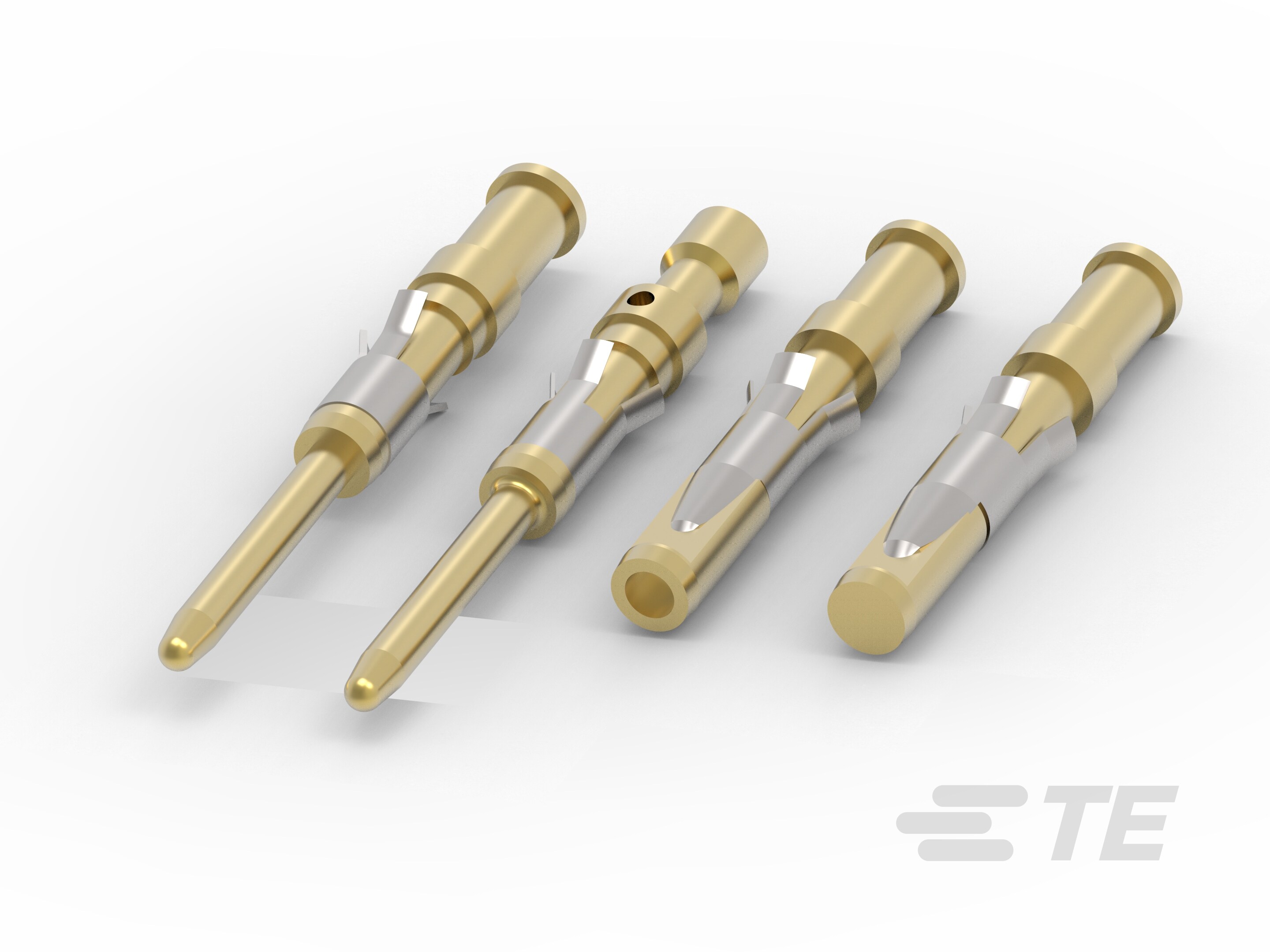

Pin and Socket Contacts, Type II

Please review product documents or contact us for the latest agency approval information.

• Sealable  No

• Contact Underplating Material  Nickel

• Contact Orientation  Straight

• Contact Mating Area Plating Material Finish  Bright

• Contact Mating Area Plating Material Thickness (µm) .76, .8 – 1.4

• Contact Mating Area Plating Material Thickness (µin) 30

• Wire Contact Termination Area Plating Material Finish  Bright, Matte

• Wire Contact Termination Area Plating Thickness (µm) .76, .8 – 1.4

• Wire Contact Termination Area Plating Thickness (µin) 30

• Contact Underplating Material Thickness  1.27 µm [ 50 µin ]

• Mating Pin Diameter  1.57 mm [ .062 in ]

• Contact Type  Pin, Socket

• Contact Mating Area Plating Material  Gold

• Wire Contact Termination Area Plating Material  Gold

• Contact Retention Within Housing  With

• Contact Size  Size 16

• Contact Base Material  Brass

• Contact Current Rating (Max) (A) 13

• Termination Method to Wire & Cable  Crimp

• Product Terminates To  Wire & Cable

• Wire Insulation Support  With, Without

• Contact Retention Type Within Housing  Snap-In

• Compatible Insulation Diameter Range (mm) .89 – 1.4, 1.02 – 1.57, 1.22 – 1.65, 1.4 – 2.24, 2.03 – 2.67

• Compatible Insulation Diameter Range (in) .035 – .055, .04 – .062, .048 – .065, .055 – .088, .08 – .105

• Wire Size (AWG) 14, 18, 18 – 16, 24 – 20, 28 – 24

• Wire Size (mm²) .08 – .24, .081, .2 – .6, .8 – 1.4, 2, 2 – 2.15

• Operating Temperature Range  -55 – 105 °C [ -55 – 302 °F ]

• Circuit Application  Power

• Contact Color Code  Blue, Blue/Blue, Red, Red/Red, Violet/Blue, Yellow/Red

• Packaging Method  Bag, Loose Piece, Reel

• Packaging Quantity  500, 900, 950, 1000, 4000
