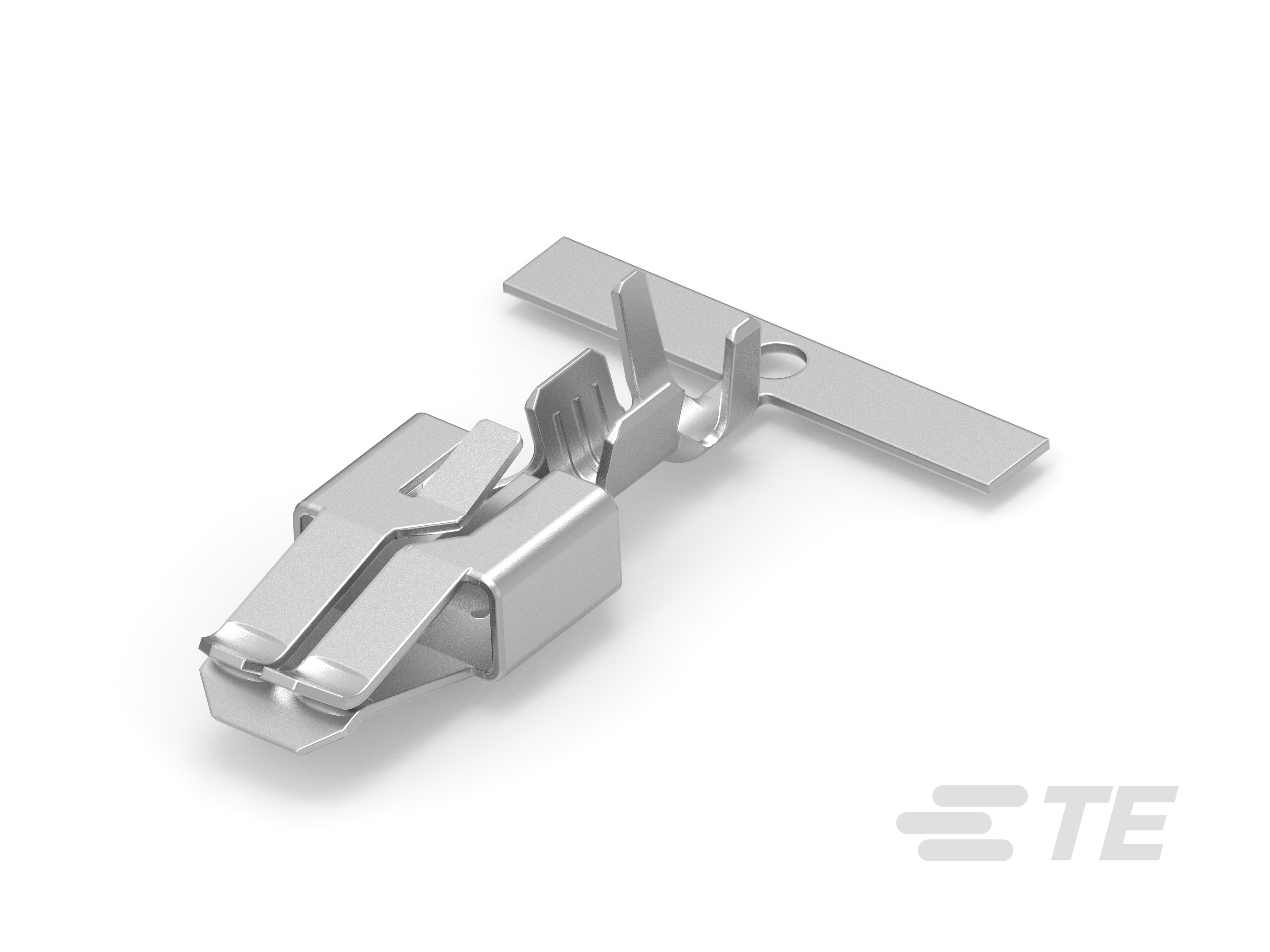

• Receptacle Style : 180°

• Primary Locking Feature : Locking Lance

• Sealable : No

• Wire Contact Termination Area Plating Material : Tin

• Contact Fabrication : Stamped & Formed

• Contact Size : 4.8mm

• Crimp Type : F-Crimp

• Typical Current Rating (A): 25

• Terminal Type : Receptacle

• Mating Tab Width (mm): 5.8, 6.3

• Mating Tab Width (in): .228, .248

• Interface Plating : Tin (Sn)

• Mating Tab Thickness : .8 mm [ .031 in ]

• Termination Method to Wire & Cable : Crimp

• Product Terminates To : Wire

• Compatible Insulation Diameter Range : 2 – 3 mm [ .079 – .118 in ]

• Wire Size (AWG): 20 – 15

• Wire Size (mm²): .5 – 1.5

• Wire Size Search (mm²): .5, .6, .75, 1, 1.25

• Wire Size Search (AWG): 15, 16, 17, 18, 19, 20

• Insulation Option : Uninsulated

• Operating Temperature (Max) (°C): 80, 85, 90, 100, 105, 110

• Operating Temperature (Max) (°F): 212

• Operating Temperature Range : -40 – 110 °C [ -40 – 230 °F ]

• Compatible With Wire Base Material : Copper

• Compatible With Agency/Standards Products : IEC 664/664A (DIN VDE 0110)

• Packaging Quantity : 2000

• Packaging Method : Reel
