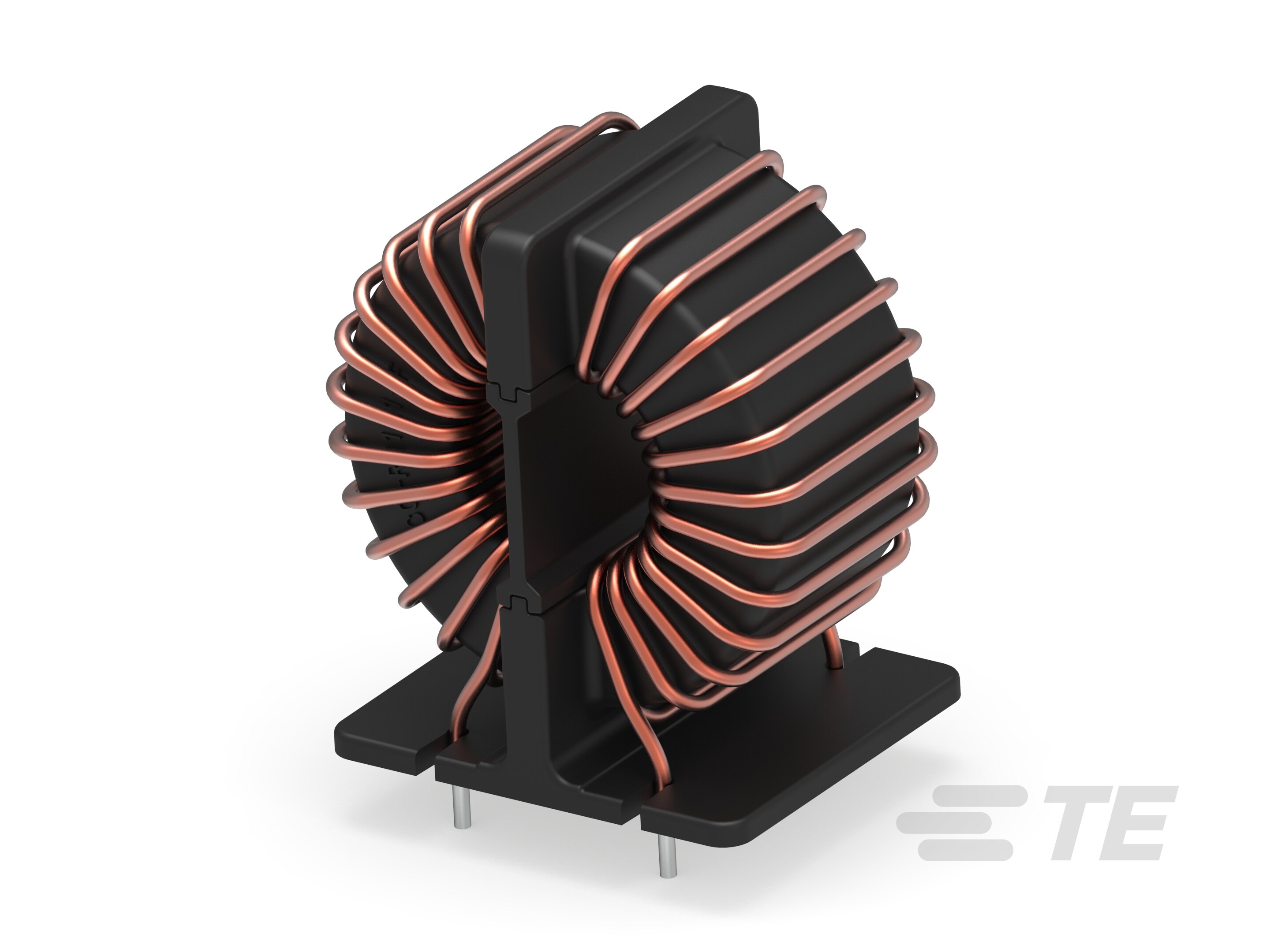

RT8131-40-6M3
600 VDC, 40 A, PCB Terminal, PD2 Pollution Degree, IP00, Horizontal, UL 94V-0, Board Mount, Schaffner RT-Series, EMC Chokes
RT8131-40-6M3
600 VDC, 40 A, PCB Terminal, PD2 Pollution Degree, IP00, Horizontal, UL 94V-0, Board Mount, Schaffner RT-Series, EMC Chokes
-
- Schaffner
- Schaffner RT-Series
- TE Internal #: 823787-SF
- TE Internal Description: RT8131-40-6M3
- All RT (61)
-
Operating Voltage (Max) (VDC): 600
-
Current Rating (Max) (A): 40
-
Input Termination Type : PCB Terminal
-
Output Termination Type : PCB Terminal
-
Pollution Degree : PD2
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_823787-SF_C.pdf 3D
- Customer View Model ENG_CVM_CVM_823787-SF_C.3d_igs.zip English
- ENG_CVM_CVM_823787-SF_C.2d_dxf.zip English
- ENG_CVM_CVM_823787-SF_C.3d_stp.zip English
Datasheets & Catalog Pages
- RFI Chokes RT Series N ENG_DS_RT_Series_N_A.pdf English
Type of Software
- Software ENG_SW_LTSpice_Models_A.zip
