8-324605-1

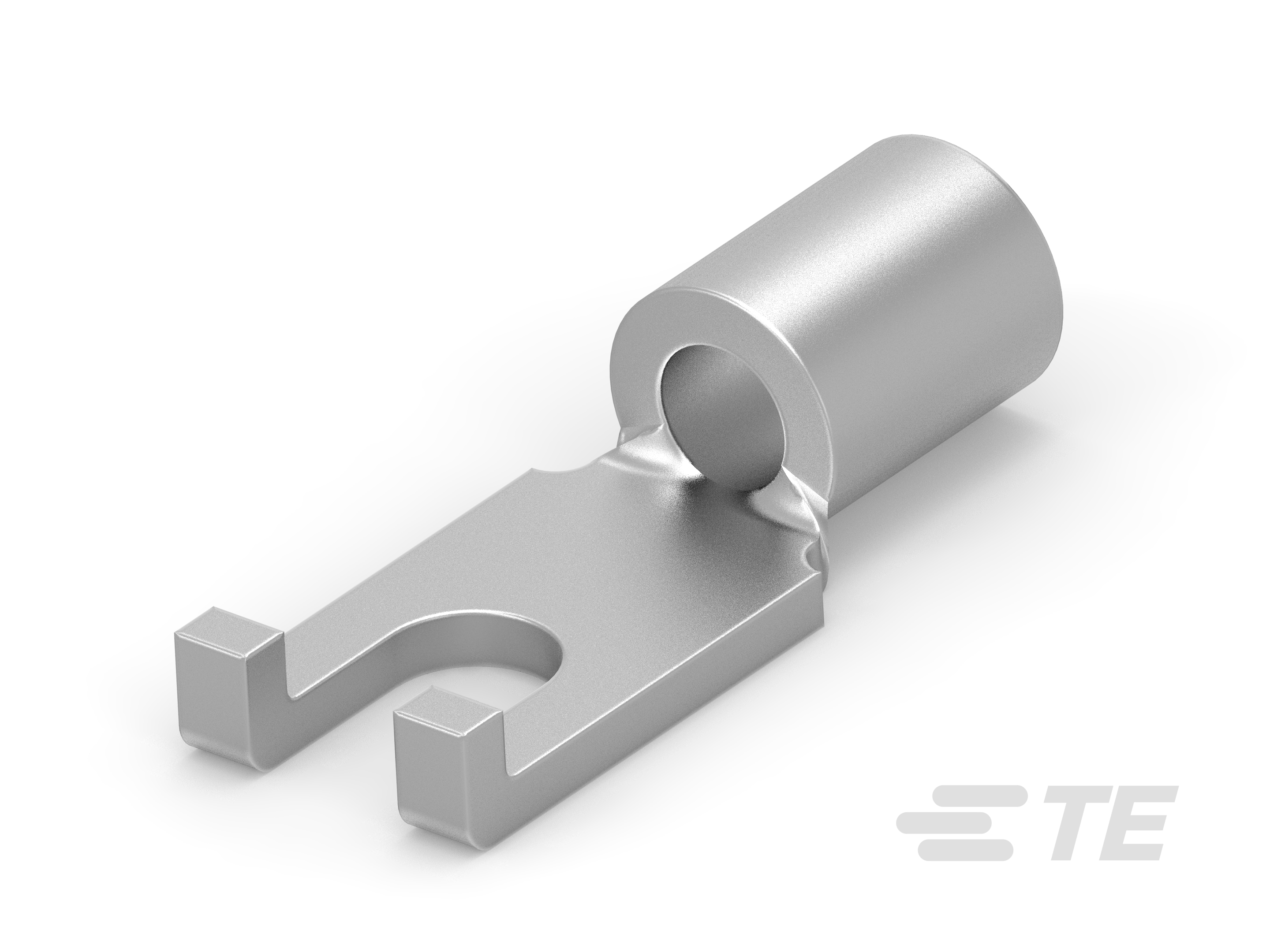

Spade Tongue Terminal, 22 – 16 AWG, #2 / M2 Stud, 2.36 mm [.093 in] Stud Diameter, Closed Barrel, Flanged, Tin Plating, Uninsulated
8-324605-1
Spade Tongue Terminal, 22 – 16 AWG, #2 / M2 Stud, 2.36 mm [.093 in] Stud Diameter, Closed Barrel, Flanged, Tin Plating, Uninsulated
-
- SOLISTRAND
- TE Internal #: 8-324605-1
- TE Internal Description: TERM,SOL SPD FLG2,22-16C22-18M
-
Spade Terminal Type : Spade Tongue Terminal
-
Wire Size (AWG): 22 – 16
-
Wire Size (mm²): .26 – 1.65
-
Wire Size (CMA): 509 – 3260
-
Stud Size : 2, M2
Documents
Product Drawings
- TERMINAL, FLANGED SPADE, SOLISTRAND ENG_CD_324605_D.pdf English
- TERMINAL, FLANGED SPADE, SOLISTRAND English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_8-324605-1_G.pdf 3D
- Customer View Model ENG_CVM_CVM_8-324605-1_G.2d_dxf.zip English
- ENG_CVM_CVM_8-324605-1_G.3d_igs.zip English
- ENG_CVM_CVM_8-324605-1_G.3d_stp.zip English
Datasheets & Catalog Pages
- SOLISTRAND - QRG ENG_CS_1773464-2_0919.pdf English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-2049_P.pdf English
