845250046
Socket Terminal, 14 – 18 AWG, 2.08 – .82 mm² Wire, Gold (Au), 1.62 mm [.063 in] Pin Diameter, Terminates To Wire, 20.22 mm [.796 in] Tab Length
845250046
Socket Terminal, 14 – 18 AWG, 2.08 – .82 mm² Wire, Gold (Au), 1.62 mm [.063 in] Pin Diameter, Terminates To Wire, 20.22 mm [.796 in] Tab Length
-
- DEUTSCH
- TE Internal #: 3-2600021-5

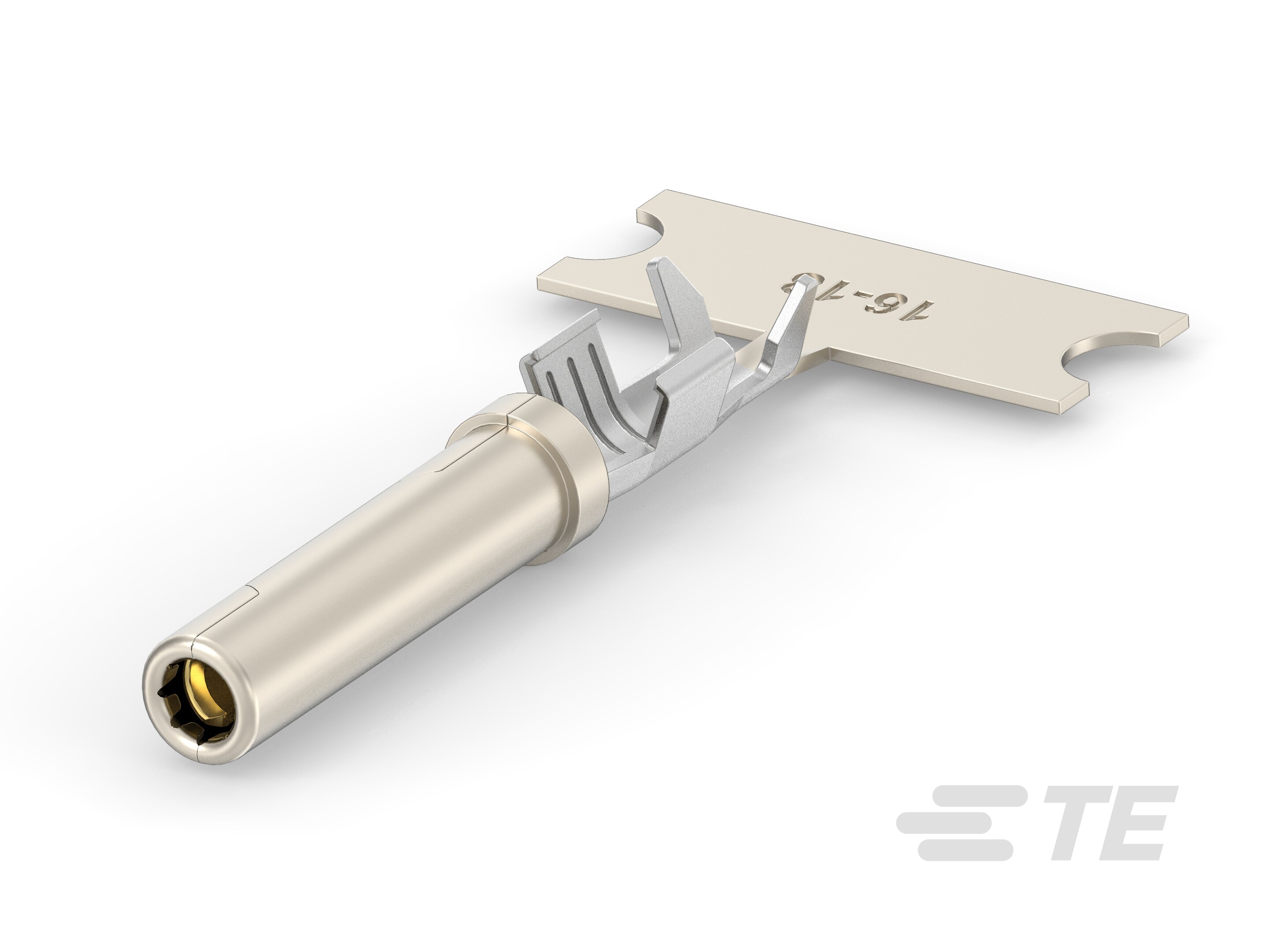

- TE Internal Description: XRC SOCKET 14-18 AWG Gold Plated
-
Terminal Type : Socket
-
Wire Size (AWG): 14 – 18
-
Wire Size (mm²): 2.08 – .82
-
Interface Plating : Gold (Au)
-
Primary Locking Feature : Clean Body
Documents
Product Drawings
- XRC SOCKET W/SNAP WINDOW ENG_CD_2600021_A2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_3-2600021-5_1.pdf 3D
- Customer View Model ENG_CVM_CVM_3-2600021-5_1.2d_dxf.zip English
- ENG_CVM_CVM_3-2600021-5_1.3d_igs.zip English
- ENG_CVM_CVM_3-2600021-5_1.3d_stp.zip English
Product Specifications
- PRODUCT SPECIFICATION FOR XRC (EXTRA RUGGED CIRCULAR) SEALED PLUGS AND RECEPTACLES ENG_SS_108-160011_A.pdf English
- Application Specification ENG_SS_114-160066_A.pdf English
- Product Specification ENG_SS_108-160112_A.pdf English
