254324-E

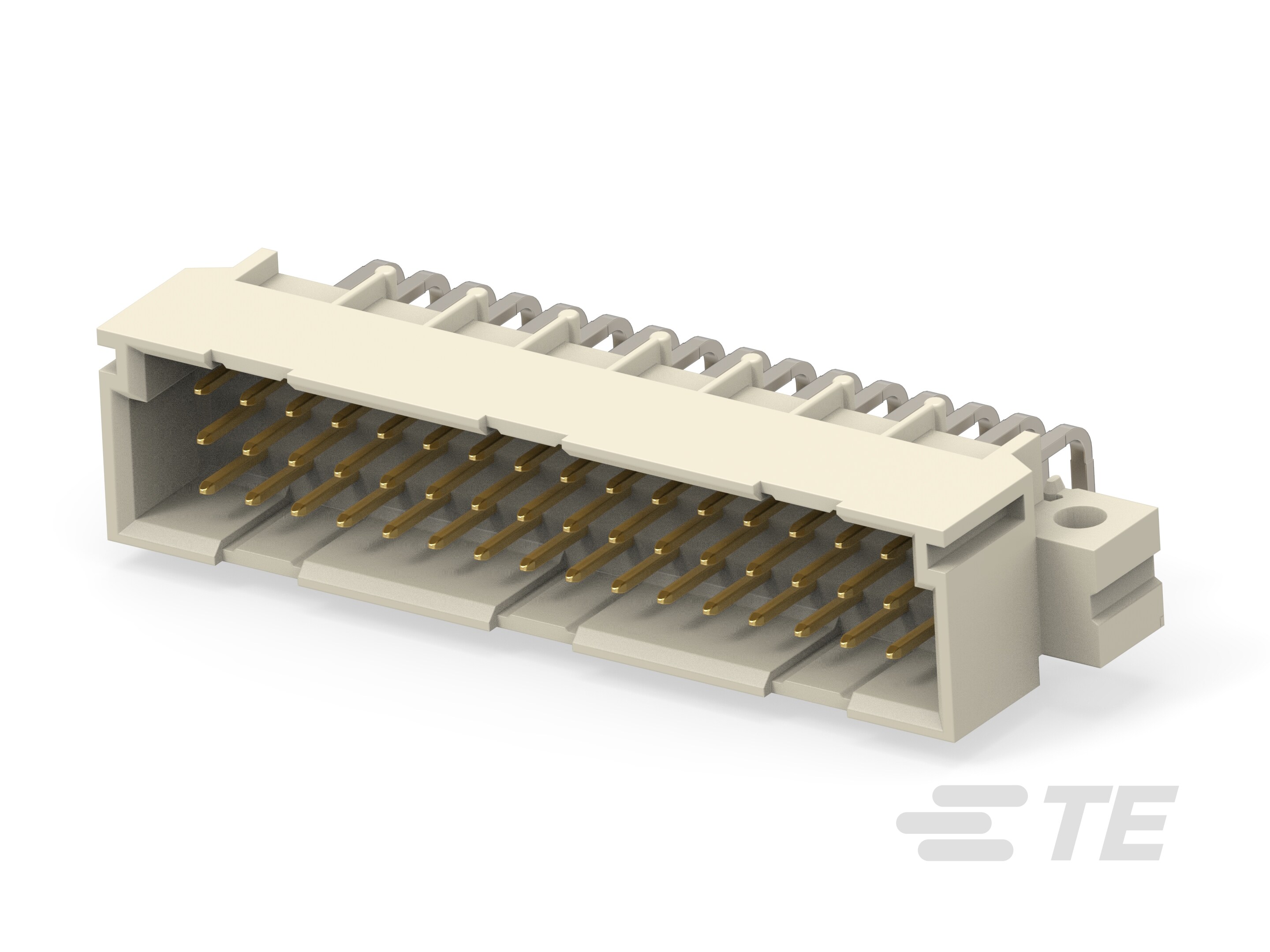

Plug, Board-to-Board, 48 Position, 2.54 mm [.1 in] Centerline, Printed Circuit Board, 3 Row, Right Angle, 16 Column, Eurocard Connectors
254324-E
Plug, Board-to-Board, 48 Position, 2.54 mm [.1 in] Centerline, Printed Circuit Board, 3 Row, Right Angle, 16 Column, Eurocard Connectors
- TE Internal #: 254324-E
- TE Internal Description: STVC/2 48 M ABC VVV 4-00 0606 * * 247 E0
-
Connector & Housing Type : Plug
-
Connector System : Board-to-Board
-
Termination Post & Tail Length : 3 mm [ .118 in ]
-
Number of Positions : 48
-
Centerline (Pitch) : 2.54 mm [ .1 in ]
Documents
Product Drawings
- ERNI-Messerleiste C/2 48 Lot Male Connector C/2 48 solder ENG_CD_254324-E_-.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_254324-E_1.pdf 3D
- Customer View Model ENG_CVM_CVM_254324-E_1.2d_dxf.zip English
- ENG_CVM_CVM_254324-E_1.3d_igs.zip English
- ENG_CVM_CVM_254324-E_1.3d_stp.zip English
Product Specifications
- Product Specification ENG_SS_S_108-19051_A_2404.pdf English
- Qualification Test Report ENG_SS_ENG_SS_501-170_B_2404.pdf English
