2403202-1

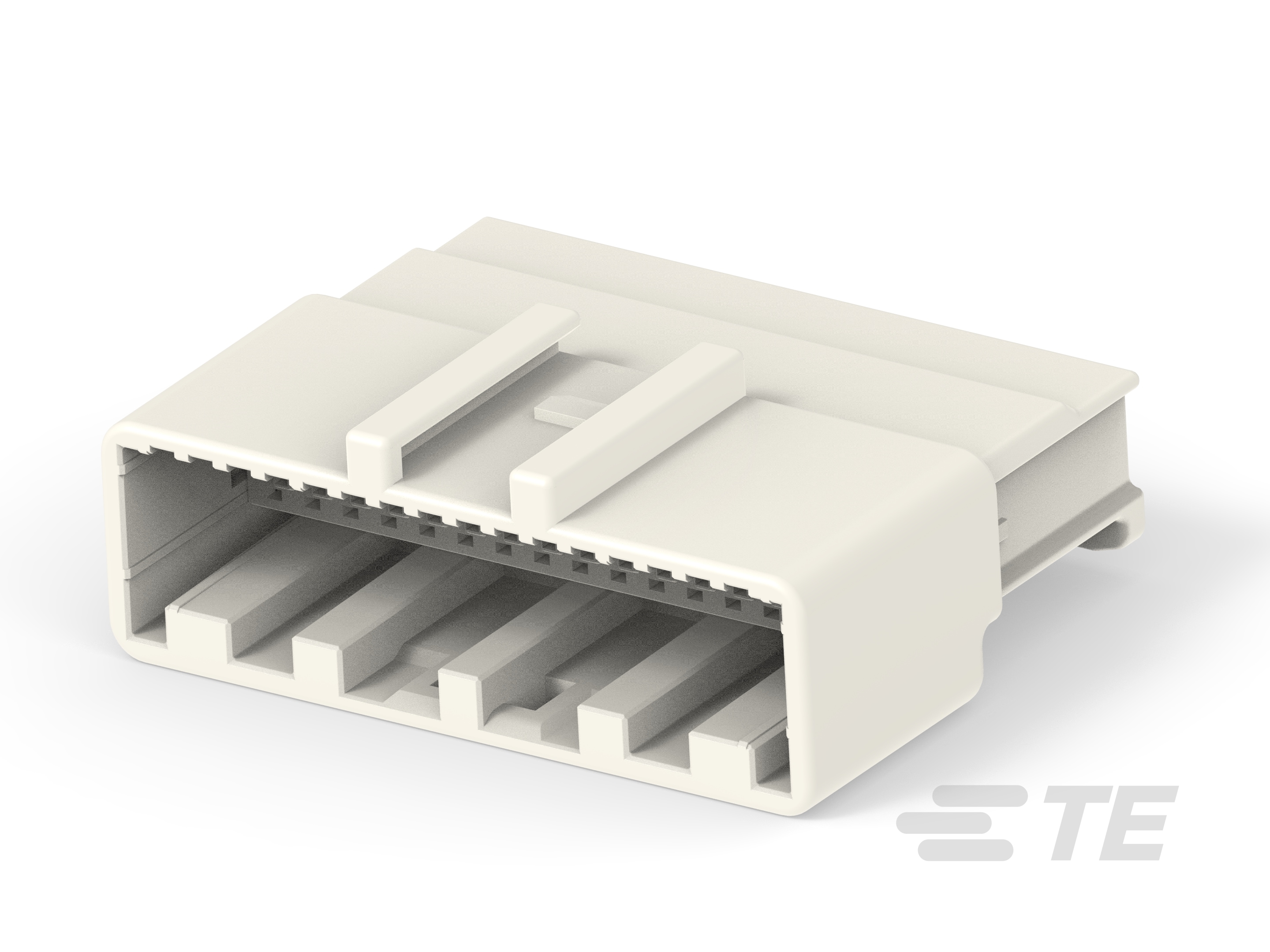

32 Position Housing, Housing for Male Terminals, Wire-to-Wire, Natural, Wire & Cable, Signal, Cable Mount (Free-Hanging), A Code
2403202-1
32 Position Housing, Housing for Male Terminals, Wire-to-Wire, Natural, Wire & Cable, Signal, Cable Mount (Free-Hanging), A Code
- TE Internal #: 2403202-1
- TE Internal Description: 32POS,0.64X0.64,TAB HSG ASSY,UNSLD
-
Number of Positions : 32
-
Connector & Housing Type : Housing for Male Terminals
-
Mating Tab Width : .64 mm [ .025 in ]
-
Connector System : Wire-to-Wire
-
Sealable : No
Documents
Product Drawings
- 32P MALE ASS'Y 025 GEN2 INLINE ENG_CD_2403202_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2403202-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2403202-1_A.3d_igs.zip English
- ENG_CVM_CVM_2403202-1_A.3d_stp.zip English
- ENG_CVM_CVM_2403202-1_A.2d_dxf.zip English
Product Specifications
- Application Specification ENG_SS_114-160310_A.pdf English
- Product Specification ENG_SS_108-160532_A.pdf English
