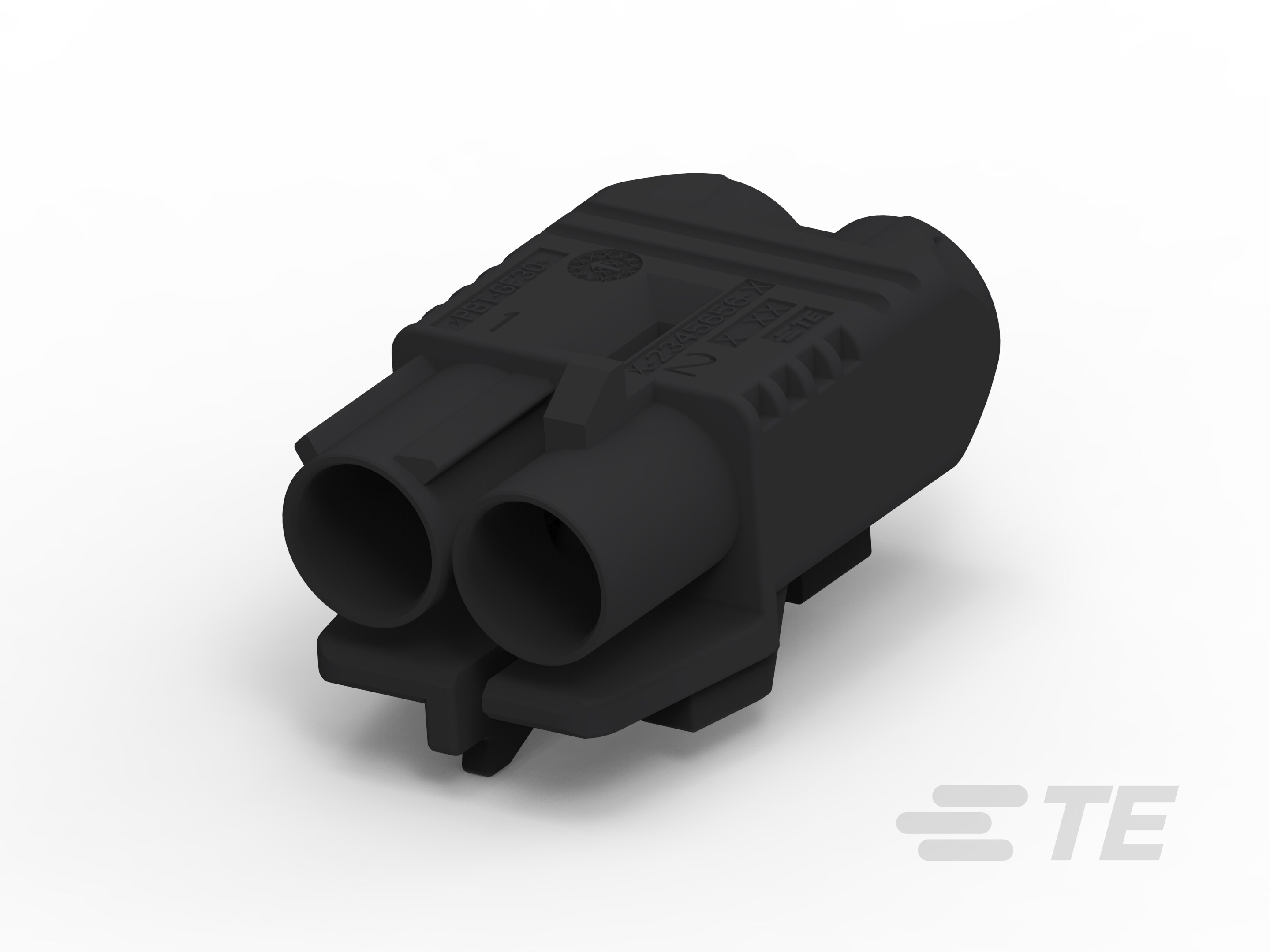

Cable-to-Cable, 180° Cable Exit, 2 Position, A Code, Housing for Male Terminals, FAKRA RF Connector System, Data Connectivity Housings
2345656-1
Cable-to-Cable, 180° Cable Exit, 2 Position, A Code, Housing for Male Terminals, FAKRA RF Connector System, Data Connectivity Housings
-
- AMP
- FAKRA RF Connector System
- TE Internal #: 2345656-1
- TE Internal Description: HOUSING, 2P, INLINE MALE, CLIP, FAKRA
-
Connector System : Cable-to-Cable
-
Sealable : No
-
Cable Exit Angle : 180°
-
Number of Positions : 2
-
Connector & Keying Code : A
Documents
Product Drawings
- MALE HOUSING, CLIP SLOT, 2 POSITION, 8.0mm CENTERLINE, 180 DEGREE, FAKRA ENG_CD_2345656_A1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2345656-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2345656-1_A.3d_igs.zip English
- ENG_CVM_CVM_2345656-1_A.3d_stp.zip English
- ENG_CVM_CVM_2345656-1_A.2d_dxf.zip English
Product Specifications
- FAKRA-Compliant Next Generation Unsealed Inline Connector Product Specification ENG_SS_108-32137_B1.pdf English
- ENG_SS_114-101049_A.pdf English
- Application Specification ENG_SS_114-32145_Y.pdf English
- ENG_SS_114-13060_F1.pdf English
- ENG_SS_114-32108_B.pdf English
- ENG_SS_114-94044_D_114-94044.pdf English
- ENG_SS_114-94058_D9.pdf English
- ENG_SS_114-94117_A7.pdf English
- ENG_SS_114-32195_A.pdf English
- ENG_SS_114-94468_A9.pdf English
- Product Specification ENG_SS_108-32058_A1.pdf English
- ENG_SS_108-101388_A.pdf English
- ENG_SS_108-94709_B2.pdf English
- ENG_SS_108-94333_B.pdf English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-32149_C.pdf English
- ENG_SS_408-10229_E.pdf English
- ENG_SS_408-8832_B.pdf English
- ENG_SS_408-8893_A.pdf English
- ENG_SS_408-8911_A.pdf English
