Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

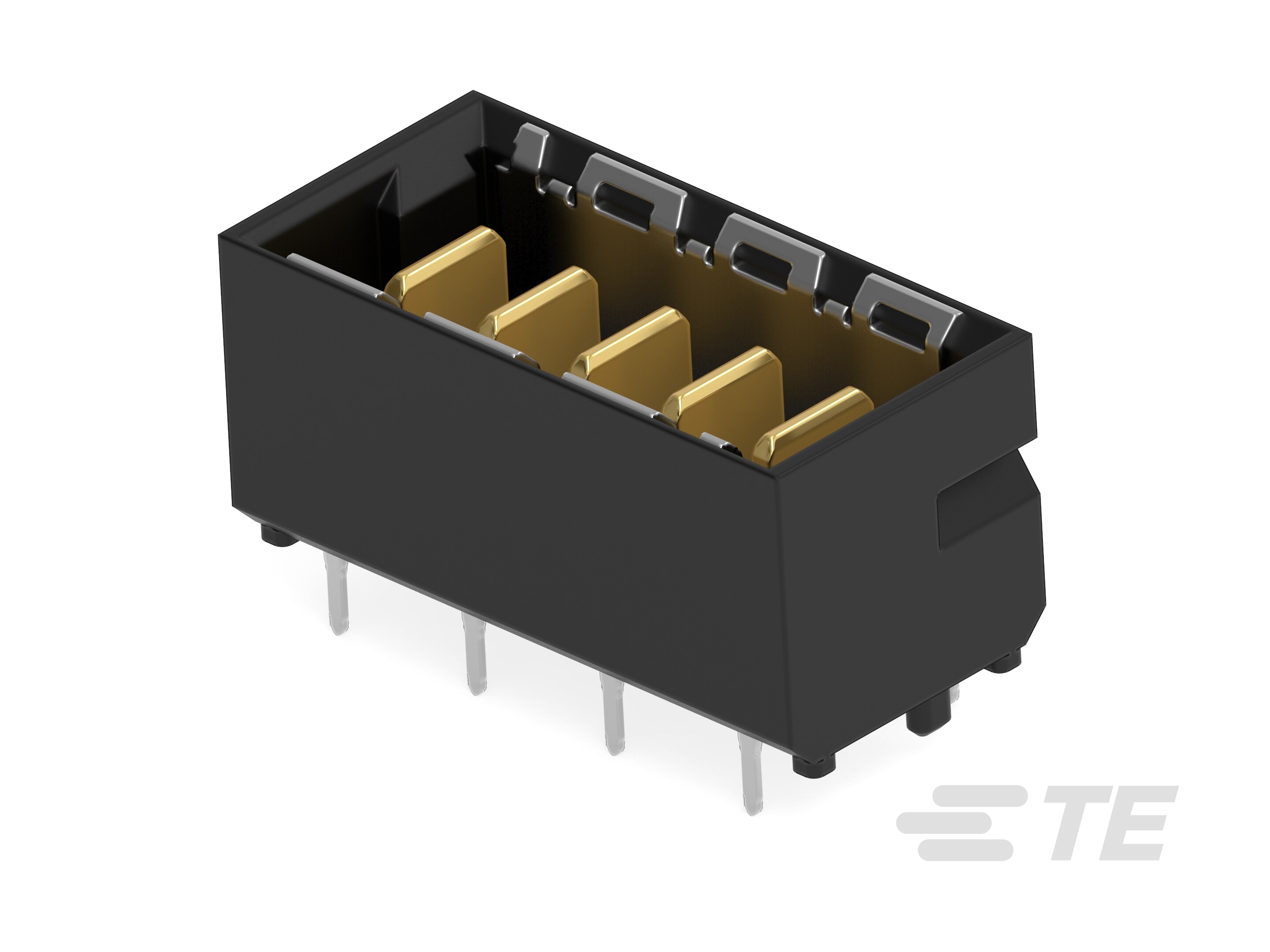

• Connector Shape : Rectangular

• Mixed & Hybrid Header : No

• PCB Connector Type : PCB Mount Plug

• Connector System : Board-to-Board

• Header Type : Fully Shrouded

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• Connector Product Type : Connector Assembly

• Board-to-Board Configuration : Orthogonal, Parallel

• Connector Contact Load Condition : Fully Loaded

• Number of Power Positions : 5

• Number of Loaded Positions : 5

• Number of Columns : 5

• PCB Mount Orientation : Vertical

• Number of Positions : 5

• Number of Rows : 1

• Primary Product Color : Black

• PCB Contact Termination Area Plating Material : Tin

• Contact Base Material : Copper Alloy

• Contact Layout : Inline

• PCB Contact Termination Area Plating Material Thickness : 4 – 6 µm [ 157.48 – 236.22 µin ]

• Contact Type : Tab

• Contact Current Rating (Max) (A): 18

• Termination Post & Tail Length : 1.2 mm [ .047 in ]

• Termination Method to PCB : Through Hole - Solder

• PCB Mount Alignment Type : Locating Posts

• Mating Alignment Type : Polarization

• Mating Retention : Without

• Panel Mount Feature : Without

• PCB Mount Retention : Without

• PCB Mount Alignment : With

• Connector Mounting Type : Board Mount

• Mating Alignment : With

• Housing Material : LCP

• Mating Entry Location : Top

• Centerline (Pitch) : 2 mm [ .079 in ]

• Connector Length : 12.15 mm [ .478 in ]

• Connector Height : 7.3 mm [ .287 in ]

• Connector Width : 5.85 mm [ .23 in ]

• Stack Height : 2 mm [ .079 in ]

• Operating Temperature (Max) : 125 °C [ 257 °F ]

• Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

• Circuit Application : Power

• Glow Wire Rating : Standard Part - Not Glow Wire

• Compatible With Agency/Standards Products : CSA, UL

• UL Flammability Rating : UL 94V-0
