2-33469-4

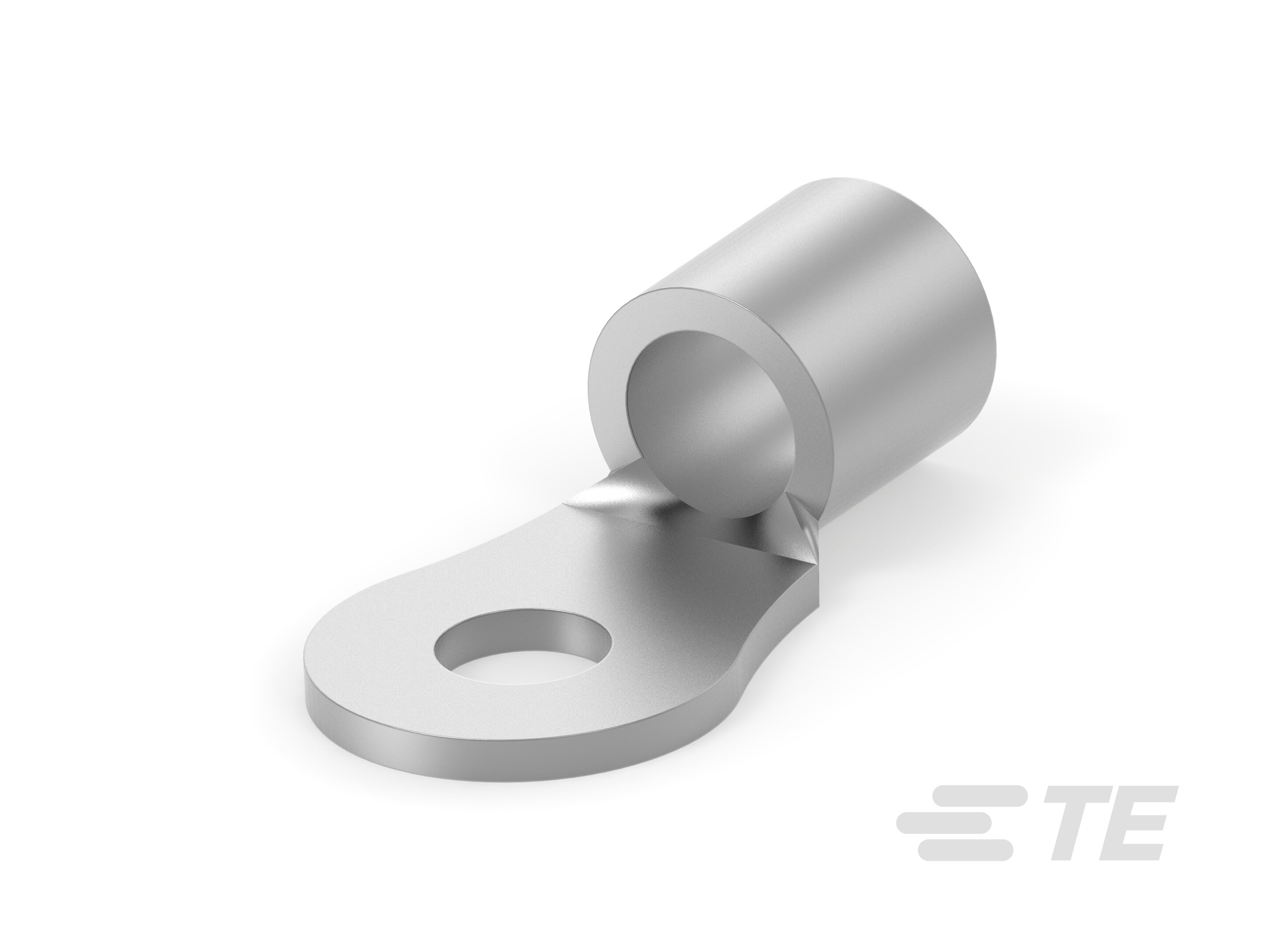

Closed Ring Tongue Terminal, 4 AWG, M6 Stud, 6.73 mm [.265 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Uninsulated
2-33469-4
Closed Ring Tongue Terminal, 4 AWG, M6 Stud, 6.73 mm [.265 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Uninsulated
-
- SOLISTRAND
- TE Internal #: 2-33469-4
- TE Internal Description: TERMINAL,SOLIS R 4 1/4
-
Ring Terminal Product Type : Closed Ring Tongue Terminal
-
Wire Size (AWG): 4
-
Wire Size (mm²): 21
-
Wire Size (CMA): 33100 – 52600
-
Stud Size : M6
Documents
Product Drawings
- TERMINAL, RING TONGUE, SOLISTRAND TM ENG_CD_33469_L2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF ENG_CVM_2-33469-4_L.pdf English
- 3D_CVM_CVM_2-33469-4_AF.pdf 3D
- Customer View Model ENG_CVM_2-33469-4_L.3d_igs.zip English
- ENG_CVM_2-33469-4_L.3d_stp.zip English
- ENG_CVM_2-33469-4_L.2d_dxf.zip English
- ENG_CVM_CVM_2-33469-4_AF.2d_dxf.zip English
- ENG_CVM_CVM_2-33469-4_AF.3d_igs.zip English
- ENG_CVM_CVM_2-33469-4_AF.3d_stp.zip English
Datasheets & Catalog Pages
- SOLISTRAND - QRG ENG_CS_1773464-2_0919.pdf English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-2049_P.pdf English
