MRSSV0DR10SMGWT

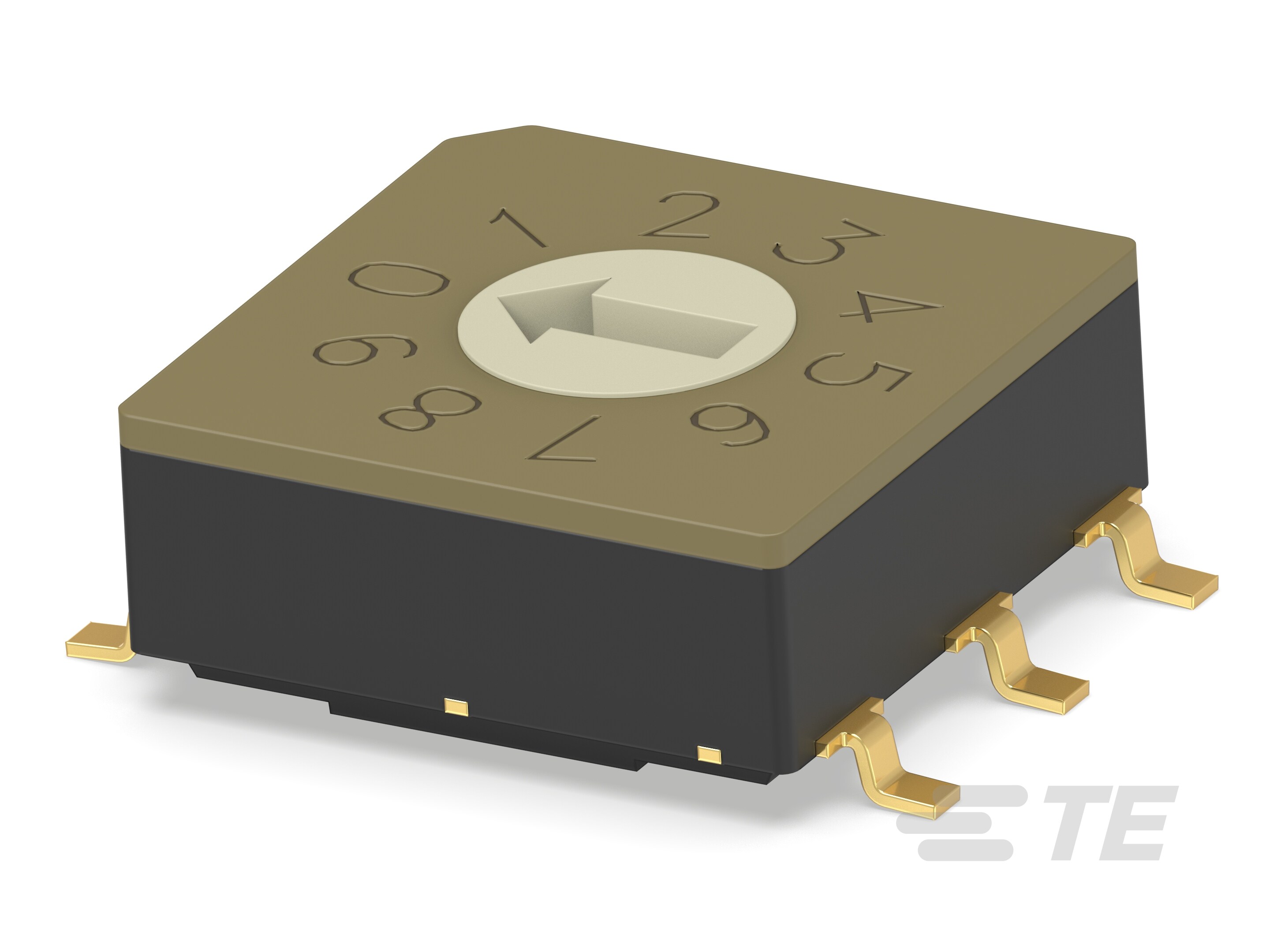

10 Position, Screwdriver Slot Actuator, White Actuator, Rotary DIP, 10 Switch, Thermoplastic, Sealed, Alcoswitch MRSS, Rotary Switches
MRSSV0DR10SMGWT
10 Position, Screwdriver Slot Actuator, White Actuator, Rotary DIP, 10 Switch, Thermoplastic, Sealed, Alcoswitch MRSS, Rotary Switches
-
- Alcoswitch
- Alcoswitch MRSS
- TE Internal #: 2-2396233-4
- TE Internal Description: MRSSV 2.54 GRA SD REA 10 SMT GULL TUB
-
Number of Positions : 10
-
Actuator Style : Screwdriver Slot Actuator
-
Actuator Color : White
-
Rotary Switch Type : Rotary DIP
-
Number of Switches : 10
Documents
Product Drawings
- MRSS, MINIATURE ROTARY SWITCH SERIES, VERTICAL, 2.54 GRAY, LASER MARKING ENG_CD_2396233_1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2-2396233-4_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2-2396233-4_A.2d_dxf.zip English
- ENG_CVM_CVM_2-2396233-4_A.3d_igs.zip English
- ENG_CVM_CVM_2-2396233-4_A.3d_stp.zip English
Datasheets & Catalog Pages
- Miniature rotary switches series ENG_DS_MRSS_Datasheet_2.pdf English
