Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

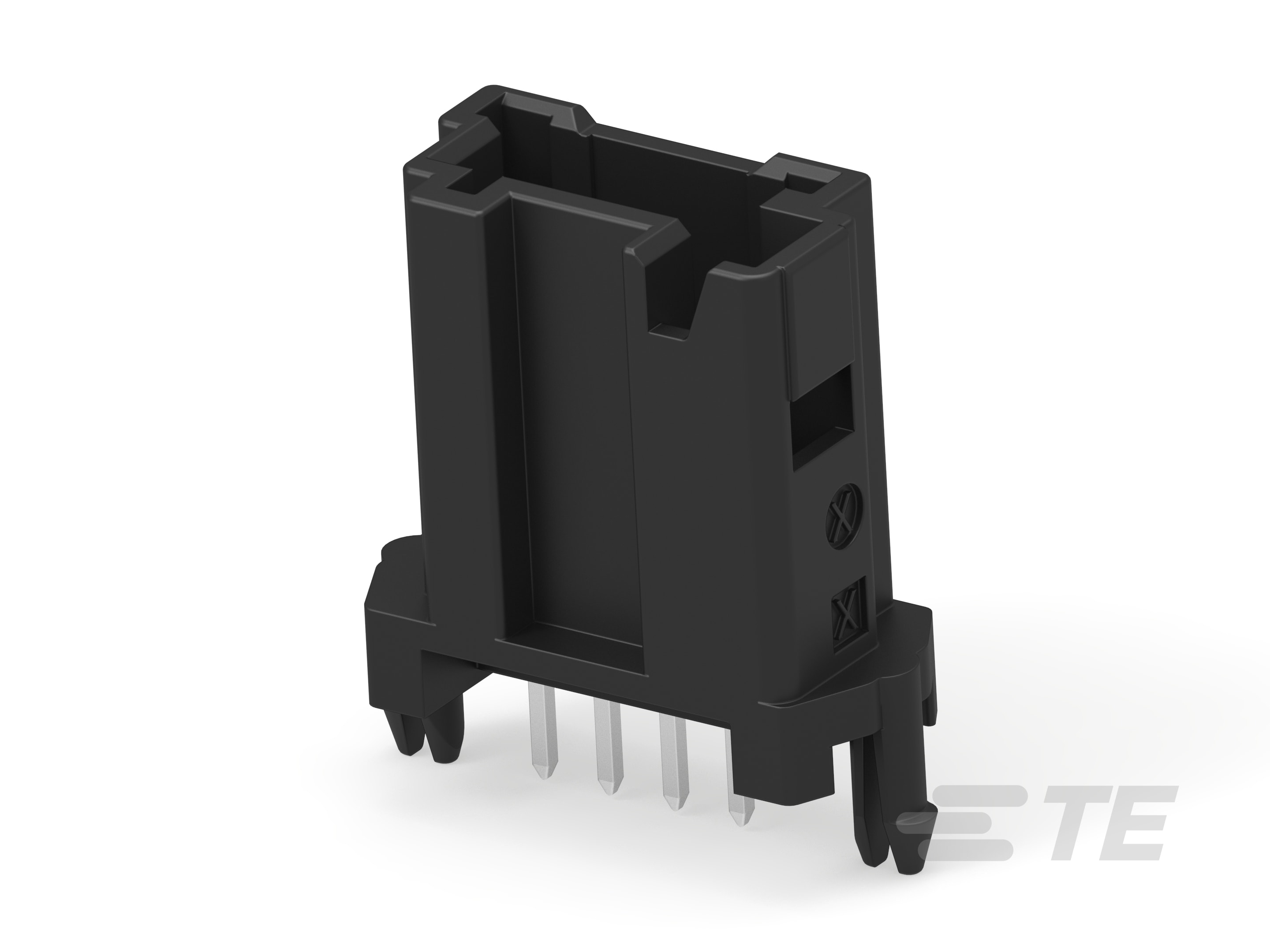

• Connector Shape : Rectangular

• Mixed & Hybrid Header : No

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• Number of Sections : 1

• Number of Signal Positions : 4

• PCB Mount Orientation : Vertical

• Nominal Voltage Architecture (V): 12

• Operating Voltage (VDC): 12

• Primary Product Color : Black

• Mating Tab Thickness : .63 mm [ .025 in ]

• Mating Tab Width : .63 mm [ .025 in ]

• Termination Method to PCB : Through Hole - Solder

• PCB Mount Retention Type : Boardlock

• Mounting Holes : Without

• Mating Retention Type : Locking Interface

• Panel Mount Feature : Without

• Connector Length : 20.4 mm [ .803 in ]

• Profile Height from PCB : 18.7 mm [ .736 in ]

• PCB Thickness (Recommended) : 1.6 mm [ .063 in ]

• Connector Width : 8.6 mm [ .339 in ]

• Operating Temperature (Max) (°C): 65, 70, 75, 80, 85

• Operating Temperature (Max) (°F): 149, 158, 167, 176, 185

• Operating Temperature Range : -40 – 85 °C [ -40 – 185 °F ]

• Shielded : No

• Solder Process : Reflow Solder Capable

• Circuit Application : Signal

• Packaging Quantity : 500
