Please review product documents or contact us for the latest agency approval information.

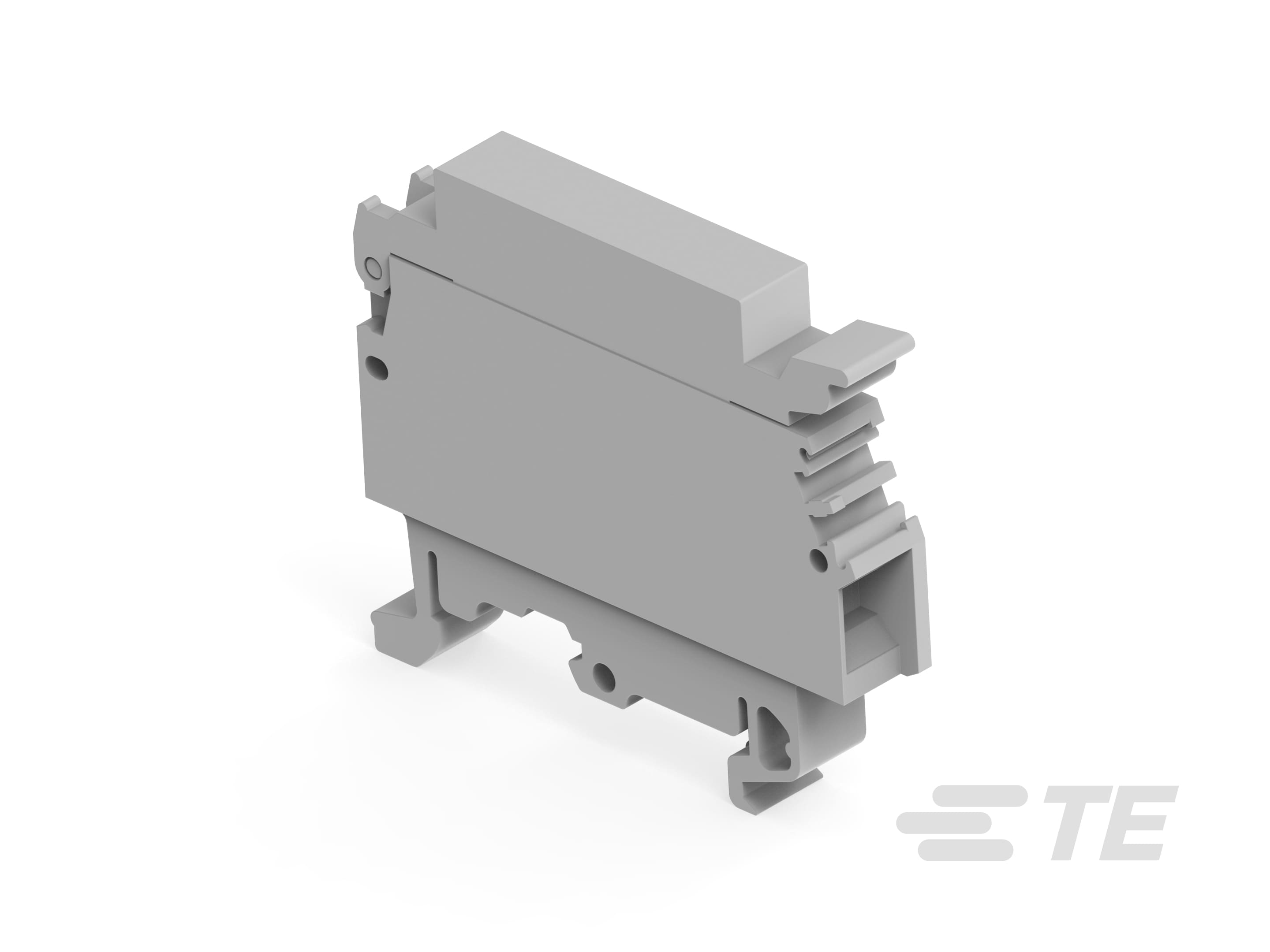

• Modular Terminal Block Product Type : Screw Clamp Terminal Block

• Number of Circuits : 1

• Number of Poles : 2

• Gauge Type : A4

• Number of Levels : 1

• Block Function : Fuse

• Number of Positions : 2

• Voltage Rating (IEC) (V): 400

• Current Rating (IEC) (A): 6.3

• Impulse Withstanding Voltage Rating (IEC) (V): 4000

• Operating Voltage (VAC): 400

• Product Weight : 14 g [ .494 oz ]

• Primary Product Color : Gray

• Contact Current Rating (Max) (A): 6.3

• Termination Method to Wire & Cable : Screw Terminal

• Tightening Torque (in-lbs): 4.4

• Tightening Torque (Nm): .5

• Terminal Block Disconnect Type : Lever

• DIN Rail Mounting Type : G32, TH35-15, TH35-7.5

• Connector Mounting Type : DIN Rail

• Housing Material : Polyamide 6.6

• Product Height : 56.5 mm [ 2.224 in ]

• Product Length : 41 mm [ 1.614 in ]

• Product Width : 8 mm [ .314 in ]

• Main Circuit Capacity - 1 Flexible Conductor per Spring Clamp (mm²): .5 – 4

• Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (mm²): .5 – 6

• Wire Stripping Length : 9.5 mm [ .374 in ]

• Tool Size : 4 mm [ .157 in ]

• Product Depth : 41 mm [ 1.614 in ]

• Product Spacing : 8 mm [ .314 in ]

• Wire Size (mm²): 4

• Installation Temperature Range : -5 – 40 °C [ 23 – 104 °F ]

• Operating Temperature Range : -55 – 110 °C [ -67 – 230 °F ]

• Circuit Application : Signal
