This product is not currently available. For more information, including distributor inventory, please contact us.
- TE Internal #: 1735690-1

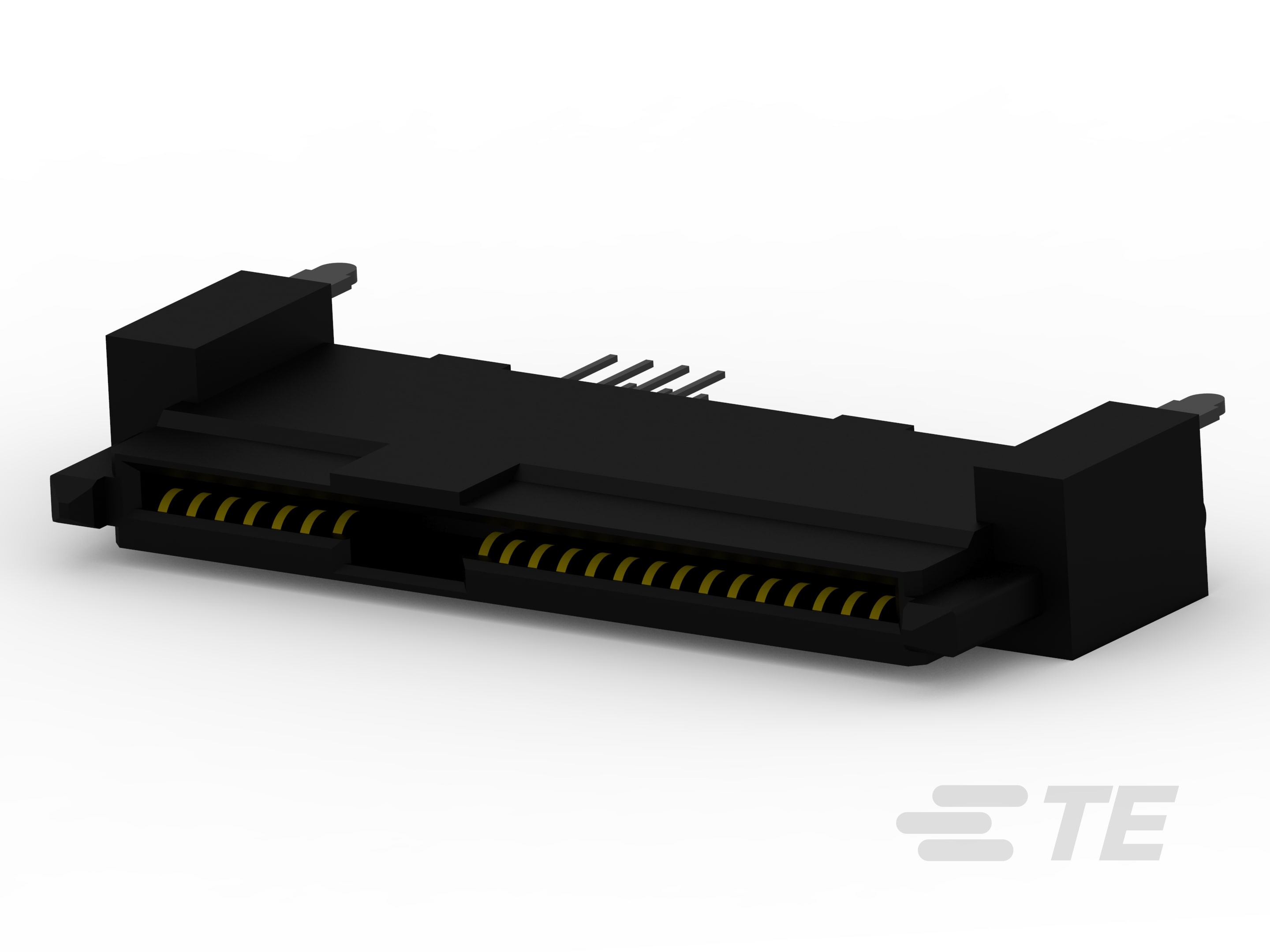

- TE Internal Description: SAS RECEPT, VERTICAL, EXT HT, PRESS-FIT
- All PT30 XFP Connectors (2)
-
SAS Connector Type : SAS
-
Connector & Housing Type : Receptacle
-
Number of Positions : 29
-
Number of Rows : 1
-
Number of Ports : 1
Documents
Product Drawings
- SAS BACKPLANE RECEPTACLE, VERTICAL, EXTENDED HEIGHT, PRESS-FIT tif English
- SAS BACKPLANE RECEPTACLE, VERTICAL, EXTENDED HEIGHT, PRESS-FIT ENG_CD_1735690_A.pdf English
CAD Files
- 3D PDF 3D_CVM_CVM_1735690-1_C_c-1735690-1-c-3d.pdf 3D
- Customer View Model ENG_CVM_CVM_1735690-1_C_c-1735690-1-c.2d_dxf.zip English
- ENG_CVM_CVM_1735690-1_C_c-1735690-1-c.3d_igs.zip English
- ENG_CVM_CVM_1735690-1_C_c-1735690-1-c.3d_stp.zip English
Product Specifications
- Product Specification ENG_SS_108-51067_A.pdf English
Product Change Notification
- View Product Change Notification Login required to access product change notifications
Features
Select Features & Characteristics to Find Similar Products
You can find similar products by using the checkboxes to select the attributes you would like to keep the same. When you click on 'View Similar Products' you can further narrow your search using filters to find products with differing attributes.
Please review product documents or contact us for the latest agency approval information.
Please Note: Use the Product Drawing for all design activity.
The only matching product is this current one. Please revise your search to continue.
0 similar products are available. Please choose different features or characteristics.
Something went wrong. Please try again
Product Features & Characteristics
Select All
Product Type Features
-
Shell : Without
-
Connector & Contact Terminates To : Printed Circuit Board
-
SAS Connector Type : SAS
-
Connector & Housing Type : Receptacle
Configuration Features
-
Number of Positions : 29
-
Number of Rows : 1
-
Number of Ports : 1
-
PCB Mount Orientation : Vertical
Body Features
-
Primary Product Color : Black
Contact Features
-
Contact Mating Area Plating Material Thickness : .762 µm [ 30 µin ]
-
PCB Contact Termination Area Plating Material : Tin
-
Contact Base Material : Copper Alloy
-
Contact Mating Area Plating Material : Gold (Au)
-
Contact Underplating Material : Nickel
Termination Features
-
Termination Post & Tail Length : 3.8 mm [ .15 in ]
-
Termination Method to PCB : Through Hole - Press-Fit
Mechanical Attachment
-
PCB Mount Retention : With
-
PCB Mount Retention Type : Boardlock
Housing Features
-
Housing Material : Thermoplastic
Dimensions
-
Profile Height from PCB : 15.85 mm [ .624 in ]
Usage Conditions
-
High Temperature Housing : Yes
Industry Standards
-
PCIe/SAS Generation : Gen2
-
UL Flammability Rating : UL 94V-0
Packaging Features
-
Packaging Quantity : 300
-
Packaging Method : Box & Tray | Tray
