How Oriented Wire Improves EMI Shielding in Electronic Devices

Oriented Wire

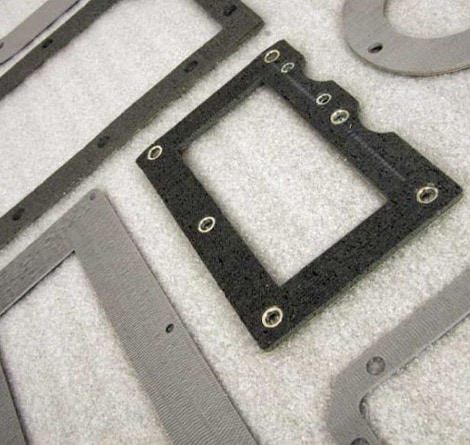

Oriented Wire is a flat, sheet material, comprising a solid silicone rubber, embedded with Monel or Aluminium metal wires orientated perpendicular to its surface. Excellent RFI/EMI/EMP shielding performance is achieved as the material has a wire density of up to 140 wires/cm2 in solid silicone providing an environmental and RFI/ EMI seal when clamped between two metallic surfaces. These wires are crimped to aid compression and are chemically bonded to ensure their retention.

Connect with us

Features & Benefits

Contains thousands of thin monel or aluminium wires that pass through the sheets thickness.
A good solution for achieving RFI/EMI/EMP and environmental sealing in a single gasket.
Can be fitted with compression limit stops or collars.
Ideal for use as access panels, seals, connector gaskets etc.
Good conformity to allow for uneven surfaces.
Self-adhesive backing to allow for easy assembly

EMI Shielding Engineering and Technical Resource Hub

Welcome to the resource hub for our advanced performance materials portfolio, featuring cutting-edge solutions in EMI shielding. Whether you're seeking to enhance electrical insulation, environmental protection, or electromagnetic interference mitigation, our comprehensive collection of whitepapers, brochures, videos, and solution guides is designed to support engineers, designers, and decision-makers across industries. Dive into our expertly curated content to discover how our innovative materials can elevate your applications with reliability, efficiency, and precision.

Learn More

Material types and Sizes

Part No.	Material	Min Thickness	Sheet Width(s)	Max Sheet Length
410	Monel wires in Solid Silicone	0.8mm	255mm(+0/-5)	1000mm
420	Aluminium wire in Solid Silicone	0.8mm	255mm(+0/-5)	1000mm
450	Monel wires in Solid Fluorosilicone	0.8mm	150mm(+0/-5)	1000mm
460	Aluminium wire in Solid Fluorosilicone	0.8mm	150mm(+0/-5)	1000mm
470	Monel wires in Soft Solid Silicone	0.8mm	255mm(+0/-5)	1000mm
480	Aluminium wire in Soft Solid Silicone	0.8mm	255mm(+0/-5)	1000mm
