ANT-2.4-CW-RH-RPS

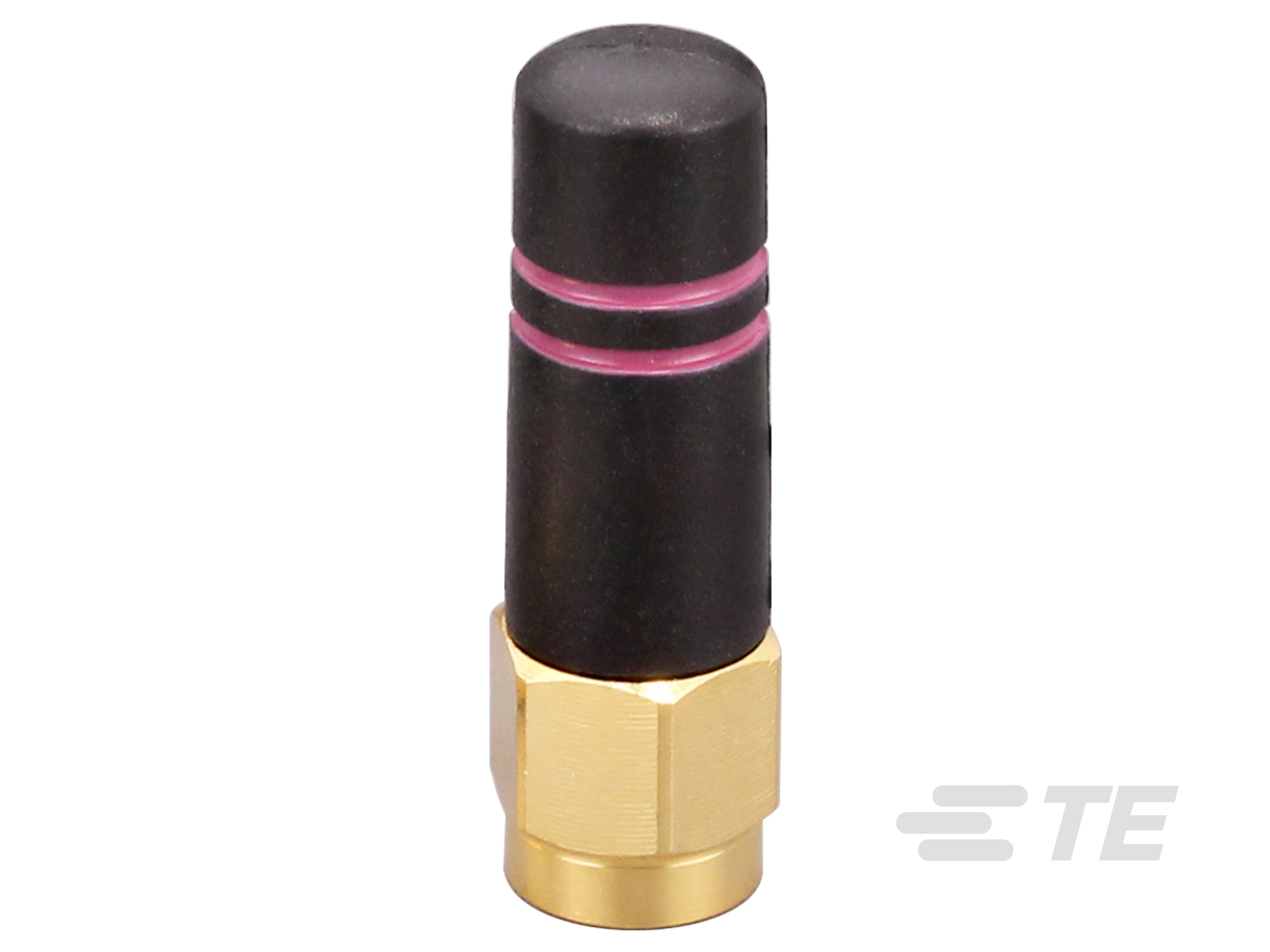

Terminal/Duck Antenna, Single Band, Bluetooth / ISM / Zigbee, External Mount, Stud/Screw/Lug Mount, RP-SMA, Omnidirectional, Single Port
ANT-2.4-CW-RH-RPS
Terminal/Duck Antenna, Single Band, Bluetooth / ISM / Zigbee, External Mount, Stud/Screw/Lug Mount, RP-SMA, Omnidirectional, Single Port
- TE Internal #: L9000033-01
- TE Internal Description: Antenna 1/4 Wave Short 2.4GHz RPS
-
Antenna Type : Terminal/Duck
-
Band Type : Single Band
-
Primary Application : Bluetooth, ISM, Zigbee
-
Wireless Application : Bluetooth, ISM, Zigbee
-
Mounting Location : External
Documents
Product Drawings
- ANTENNA RH TYPE REDUCED HEIGHT WHIP ENG_CD_C-ANT-xxx-CW-RH-CCC_B.pdf English
- Dimensional Drawing ANTENNA 2.4GHz CW-RH TYPE SMA CONNECT ENG_CD_C-ANT-2.4-CW-RH-CCC_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_L9000033-01_A.pdf 3D
- Customer View Model ENG_CVM_CVM_L9000033-01_A.3d_stp.zip English
- ENG_CVM_CVM_L9000033-01_A.2d_dxf.zip English
- ENG_CVM_CVM_L9000033-01_A.3d_igs.zip English
Datasheets & Catalog Pages
- ANT-2.4-CW-RH ENG_DS_L9000033-01_A.pdf English
