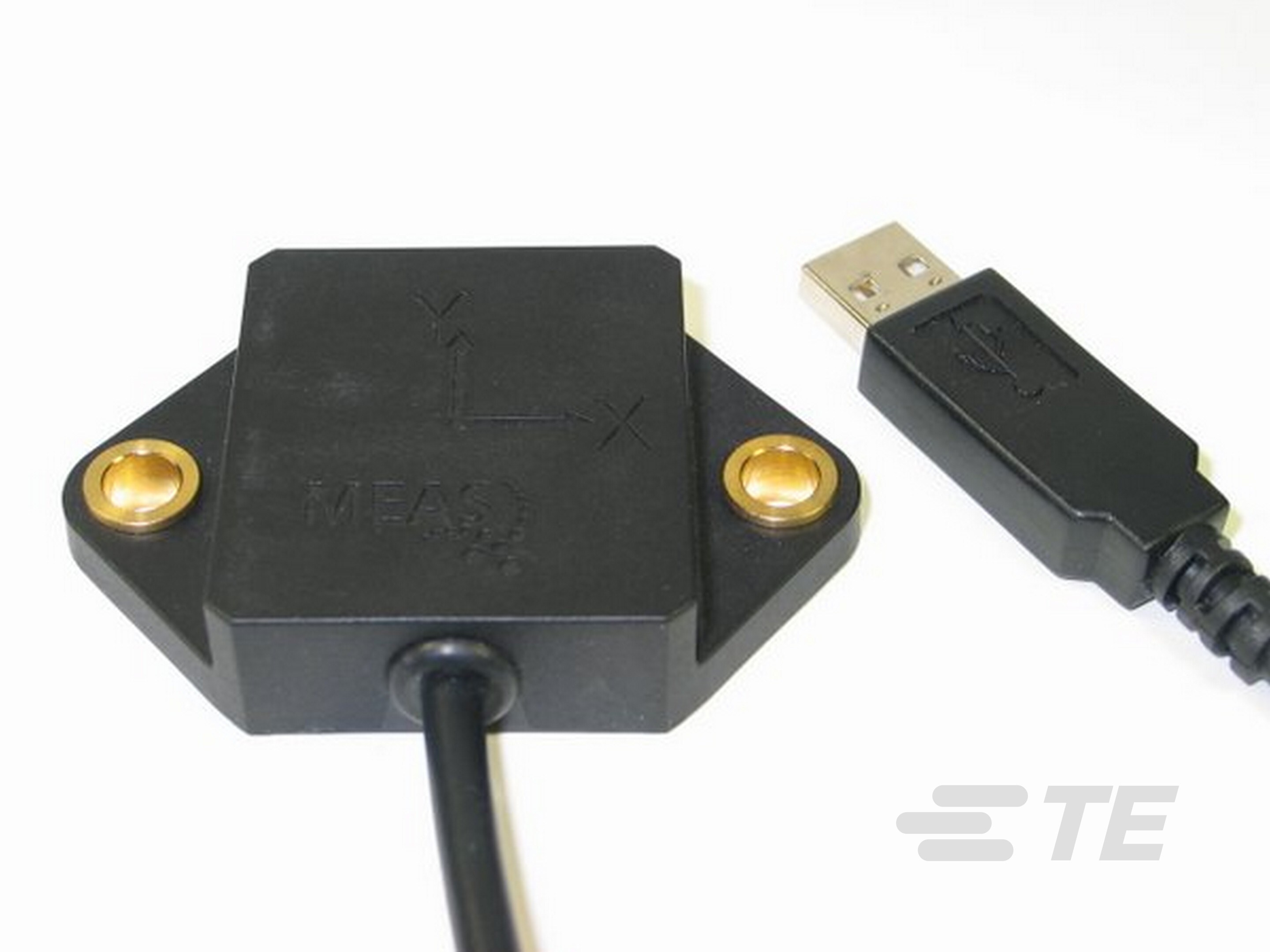

AXISENSE-1 USB-180 TILT SENSOR

AXISENSE-1 USB-180 TILT SENSOR-CAT-TSI0006
  • MEAS
The DOG1 MEMS-Series USB inclinometer single axis is well suited for test and measurement purposes.
More Less

Product Features

  • Measurement Principle : MEMS

  • Sensor Package : Plastic Housing

  • Measurement Axes : Single Axis

  • Measurement Ranges (°): up to +/- 180

  • Housing Width (mm): Up to 70

Available from

LADD Inc

Build and price the product now

Overview

A fast response time, good accuracy and high resolution are the DOG1 MEMS USB inclinometer's key features.  It uses a digital signal processing including temperature compensation to optimize performance. The user configurable filter allows to find a good compromise between response time and a stable output in noisy environments, e.g. if vibrations are an issue.

BENEFITS

  • USB powered
  • User defined main and 2nd axis
  • ±90° tolerance on 2nd axis
  • 14 bit resolution
  • Digital signal processing includes  filter / temperature compensation
  • 100 Hz refresh rate
  • -40 °C to 85 °C temperature range
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Sensor Package  Plastic Housing

  • Interface Signal Type  Digital

Configuration Features

  • Electrical Connection  Connector USB

Electrical Characteristics

  • Supply Voltage (VDC) 5

Body Features

  • Product Orientation  Horizontal

Dimensions

  • Resolution (°) up to +/- .01

  • Measurement Ranges (°) up to +/- 180

  • Housing Width (mm) Up to 70

  • Accuracy (°) up to +/- .5

Usage Conditions

  • Measurement Principle  MEMS

Operation/Application

  • Output Interface  RS232

Industry Standards

  • IP Rating  IP67

Other

  • Measurement Axes  Single Axis

Reference Number

  • TE Internal Number CAT-TSI0006
