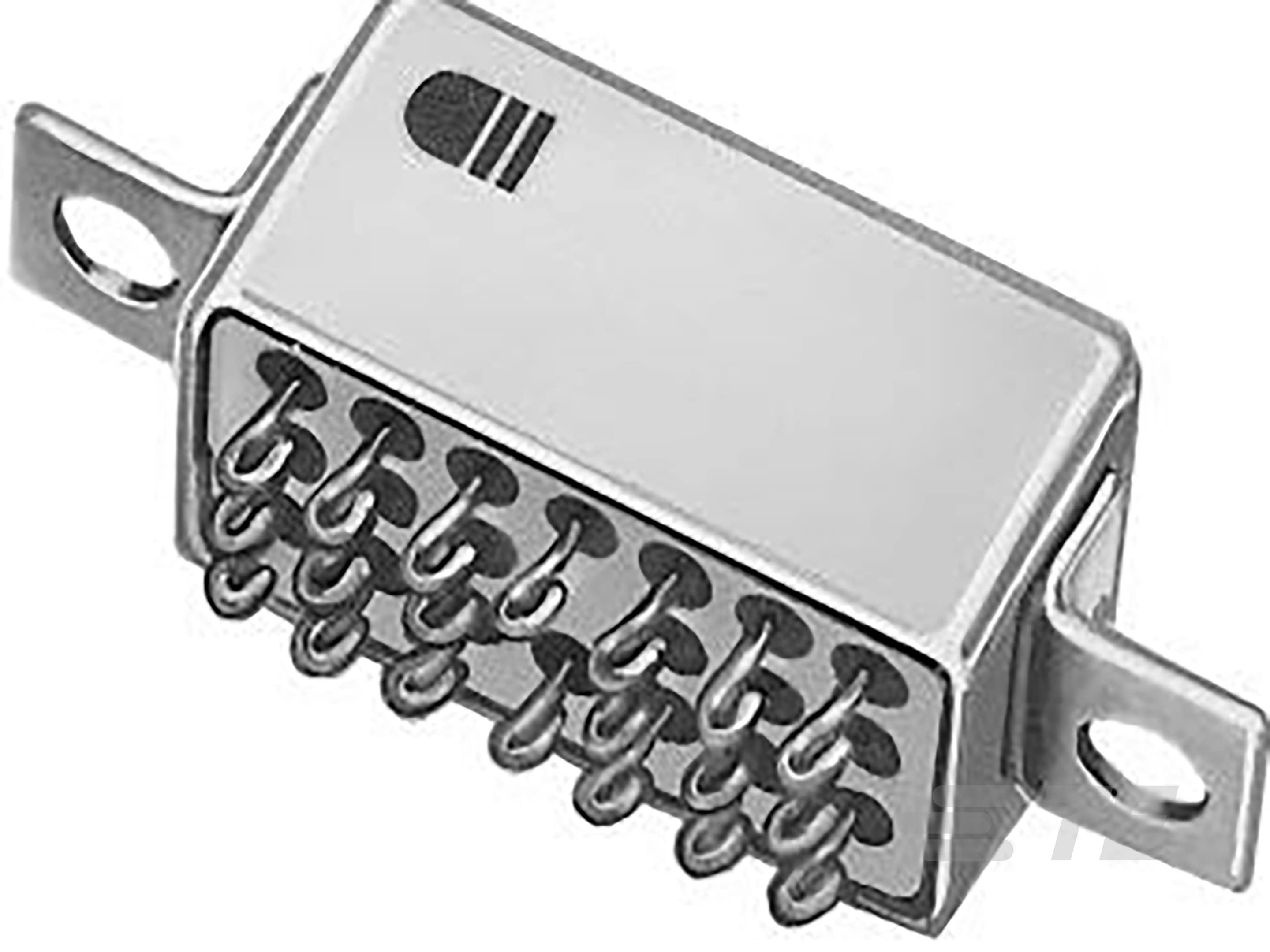

6PDT SS Signal Relay: Electrically-Held, 1/5-Size Relay

6PDT SS Signal Relay: Electrically-Held, 1/5-Size Relay-CAT-SS-6PDT-HSR
TE's SS Series 6PDT relays are non-polarized, monostable, hi-density design relays with switching up to 2 A & special shock designs up to 700 G,1 ms.
More Less

Product Features

  • Relay & Contactor Type : General Purpose Signal Relay

  • Current Type : DC

  • Coil Magnetic System : Non-Polarized, Monostable

  • Contact Arrangement : 6 Form C 6PDT-CO

  • Contact Current Rating (A): 2

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Relay & Contactor Type  General Purpose Signal Relay

Configuration Features

  • Contact Arrangement  6 Form C 6PDT-CO

Electrical Characteristics

  • Coil Resistance (Ω) 390

  • Contact Current Rating (A) 2

  • Coil Voltage Rating (VDC) 26.5

  • Coil Power Rating DC (W) 1.8

Body Features

  • Enclosure Type  Hermetically Sealed

Termination Features

  • Main Termination & Connection Type  Solder Hook Terminals, Solder Pins

  • Coil Termination & Connection Type  Solder Hook Terminals, Solder Pins

Mechanical Attachment

  • Product Mount Type  Board Mount, Chassis Mount

Usage Conditions

  • Operating Temperature Range  -65 – 125 °C [ -85 – 257 °F ]

  • Environmental Ambient Temperature (Max)  125 °C [ 257 °F ]

Operation/Application

  • Vibration Resistance  20G's, 10 – 2000Hz

  • Shock Resistance  100G's, 6ms

  • Current Type  DC

  • Coil Magnetic System  Non-Polarized, Monostable

Reference Number

  • TE Internal Number CAT-SS-6PDT-HSR
