6 DOF USER CONFIGURABLE INERTIAL MEAS

6 DOF USER CONFIGURABLE INERTIAL MEAS-CAT-RIN0010
  • MEAS

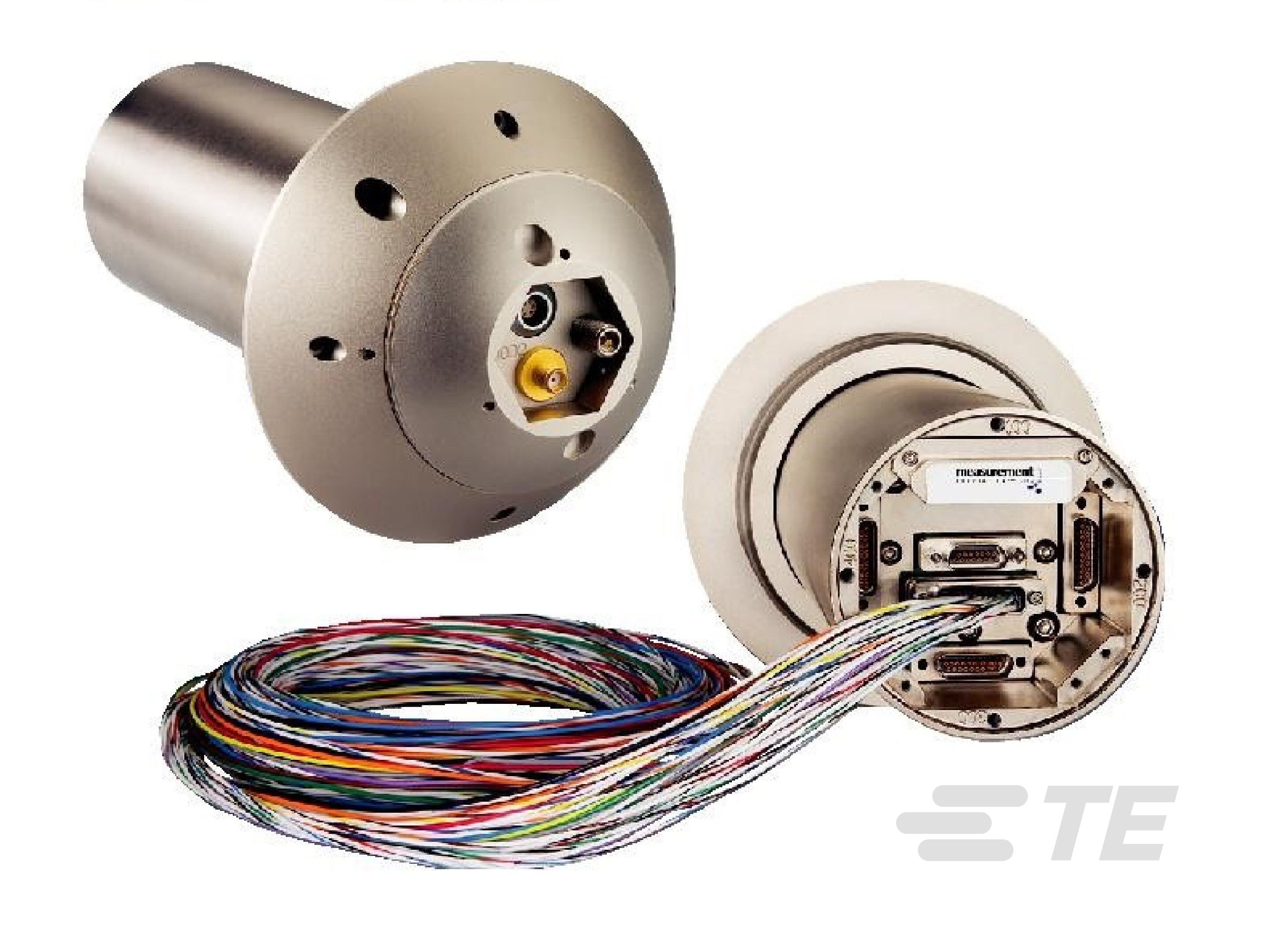

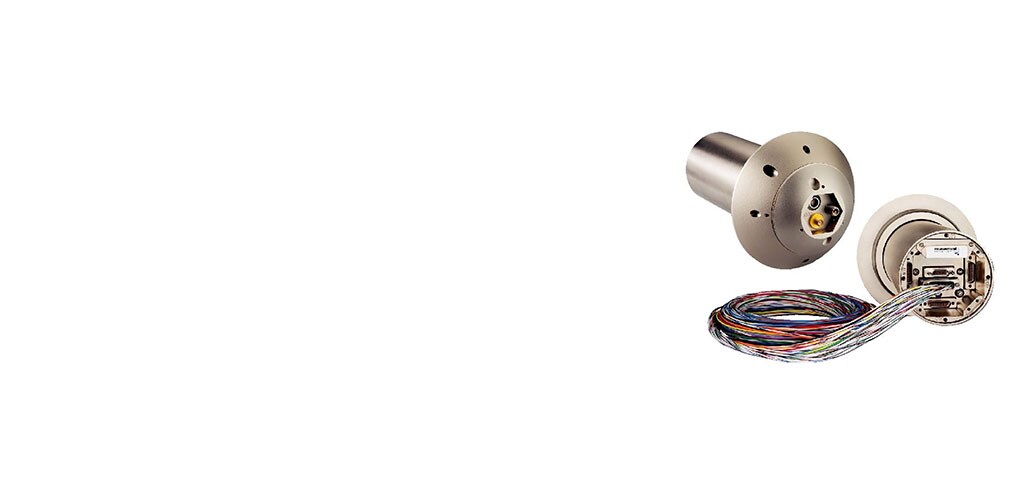

The 65210E series user-configurable 6 DoF (six degree of freedom) inertial measurement system contains three internal accelerometers, three internal rate gyros, two temperature sensors, battery voltage and current monitor, signal processor, IRIG encoder, optional FM transmitter, and high-capacity Li-Ion battery in a small, easy-to-install package.
More Less

Product Features

  • Rate & Inertial Sensor Type : Inertial Systems

  • Case Material : Anodized Aluminium

Available from

LADD Inc

Build and price the product now

Overview
Data from external sensors and signals can be input to the 65210E series user-configurable 6 DoF inertial measurement system via plug-in signal conditioning modules.

External signal inputs can be accommodated with a variety of available Signal Conditioning Modules (SCMs).  All channels are measured simultaneously with each sampled at 16 bits, filtered, ranged, and calibration compensated at up to 42,500 samples/sec/channel by the built-in digital signal processor. The output range, filter frequency and calibration of each channel, as well as the PCM configuration, can be set by the user. A frame counter and CRC cyclic redundancy check can be included in each telemetry frame to allow dropped frames and data corruption to be detected.

Benefits

  • Data Acquisition via External Inputs Data from external sensors and signals can be input to the 65210E via plug-in Signal Conditioning Modules. Modules are available for many standard transducer types and additional modules can be quickly developed to meet specific customer requirements.
  • User Programmable Settings - When configured as a 6 DoF, the output range and low-pass filter of each 65210E accelerometer and rate gyro axis can be set via a built-in RS-485 interface, as can the IRIG-106 encoded PCM output configuration. The carrier frequency for the optional built-in multi-channel S band transmitters can also be set by the user.
  • IRIG-106 Compatible - Calibrated, ranged, and filtered data can be streamed out at up to 3Mbit/sec via RS-485 or IRIG-106 encoded PCM.
  • High Accuracy and Linearity over Wide Temperature Range - Accelerometer accuracy is improved by minimizing variations due to temperature and aging effects. Each axial sensor has been tested over the -40 to +85°C temperature range.
  • Built-in Calibration - Calibration data for each sensor is maintained in the accelerometer. All digital data output is fully calibrated and in user specified engineering units.
  • Communication Integrity - A cyclic redundancy check (CRC) is available to validate communications. Telemetry also supports a frame counter to ease detection of missing frames.
  • Self-Test and fixed level outputs simplify installation and system check out by verification of channel integrity and ground station setup.
  • Small Cylindrical Package Package has a 2.75 inch diameter and 7.93 inch overall length. Optional spline mount parabolic mounting adapter available. The unit will fit in a standard MK-80 fuse well.
  • Built-In High Capacity, Fast-Charging Battery - Complete recharge in less than two hours provides up to three hours of operation with transmitter powered.
  • Suitable for Harsh Environments - The 65210E is robust and can be used in harsh environments. The unit will survive 100 g shock while powered.
  • Encryption Options - The Encryption Option allows the 65210E to encrypt the IRIG-106 encoded PCM data stream measurement values prior to transmission. The encryption method is AES and can be configured to use either 128-bit or 256-bit encryption. Telemetry frames must be configured with either 16 or 32 bytes of channel data that can be encrypted, corresponding to the two encryption key sizes. Encryption is not applied to the SYNC, FCTR, SN, PAD or CRC bytes in the frame. Encryption requires minimum ICU V2.36 to be supported.
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Accuracy (%) ±.1

  • Rate & Inertial Sensor Type  Inertial Systems

Electrical Characteristics

  • Excitation Voltage Range (VDC) 8.5 – 36

Body Features

  • Case Material  Anodized Aluminium

Dimensions

  • Product Length (mm) 201.42

  • Product Diameter (mm) 69.85

Usage Conditions

  • Operating Temperature Range  -40 – 85 °C [ -40 – 185 °F ]

Other

  • FS Range (±) DEG/SEC  1000, 1200, 20000

Reference Number

  • TE Internal Number CAT-RIN0010
