Voltage Output Uniaxial Accelerometer

Voltage Output Uniaxial Accelerometer-CAT-PPA0114
  • MEAS

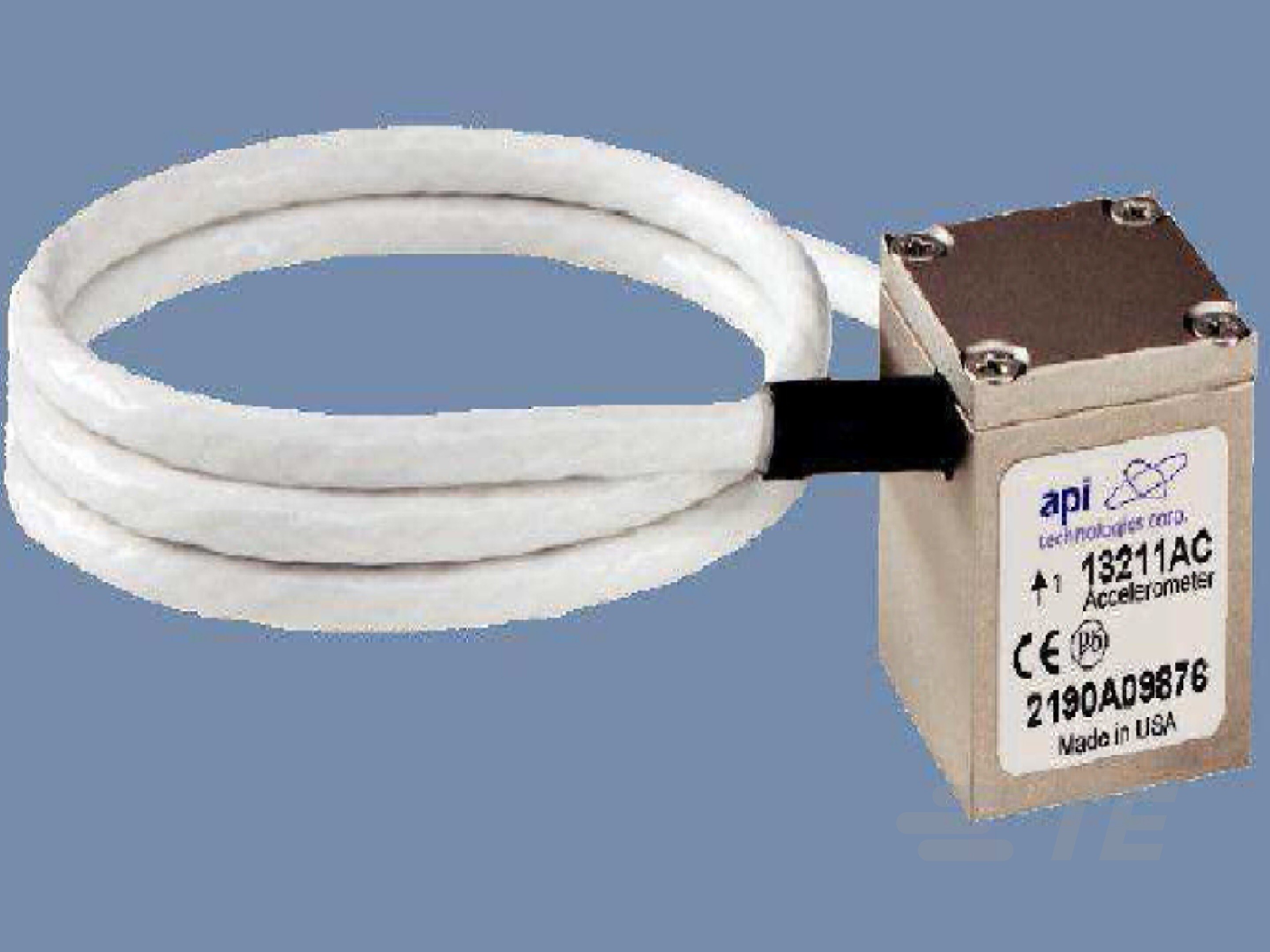

The 13211AC is an interchangeable and rugged uniaxial accelerometer capable of accurately measuring acceleration under demanding environmental conditions.
More Less

Product Features

  • Accelerometer Type : MEMS DC

  • Vibration Sensor Product Type : MEMS Accelerometer

  • Number of Sensing Axes : Uniaxial

  • Frequency Response (Hz): 0-2500

  • Full Scale Output Voltage (VDC): ±2

Available from

LADD Inc

Build and price the product now

Overview

A tough, compact housing holds potted electronics and a shielded heavyweight cable. The 13211AC provides enhanced accuracy and durability features to meet the challenges of your application. In addition to its robust construction, increased precision is achieved through improved offset and gain compensation.

Each axial sensor has been tested over the -40 to +85 °C temperature range and has a nominal full scale output swing of ±2 Volts. Sensors are available in various fixed sensitivities, each with a 2.500 V offset. The 13211AC can also be ordered with different bandwidths and wiring configurations.

BENEFITS

  • Rugged for harsh environments
  • High accuracy and linearity over a wide temperature range
  • Small size
  • Built-in power supply regulation
  • Self-test on digital command
  • Three year warranty
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Sensor Package  Plug & Play

  • Accelerometer Type  MEMS DC

  • Vibration Sensor Product Type  MEMS Accelerometer

Configuration Features

  • Electrical Connection  Integral Cable

Electrical Characteristics

  • Zero Acceleration Output (mV) 2500 ±30

  • Excitation Voltage Range (VDC) 8.5 – 36

  • Full Scale Output Voltage (VDC) ±2

Signal Characteristics

  • Frequency Response (Hz) 0-2500

Body Features

  • Primary Product Material  Nickel Plated Aluminum

  • Product Weight  38 g [ 1.33 oz ]

  • Number of Sensing Axes  Uniaxial

Mechanical Attachment

  • Sensor Mount Type  Screw Mount

Usage Conditions

  • Operating Temperature Range  -40 – 85 °C [ -40 – 185 °F ]

Operation/Application

  • Output Current Type  DC

Industry Standards

  • IP Rating  IP65

Other

  • Non-Linearity (FSO) (%) ±1.25

  • Acceleration Range (±) (g) .5, 1, 1.5, 2

  • Sensitivity (mV/g) 1000, 1333, 2000, 4000

Reference Number

  • TE Internal Number CAT-PPA0114
