Industrial IEPE Accelerometer

Industrial IEPE Accelerometer-CAT-PPA0112
  • MEAS
|

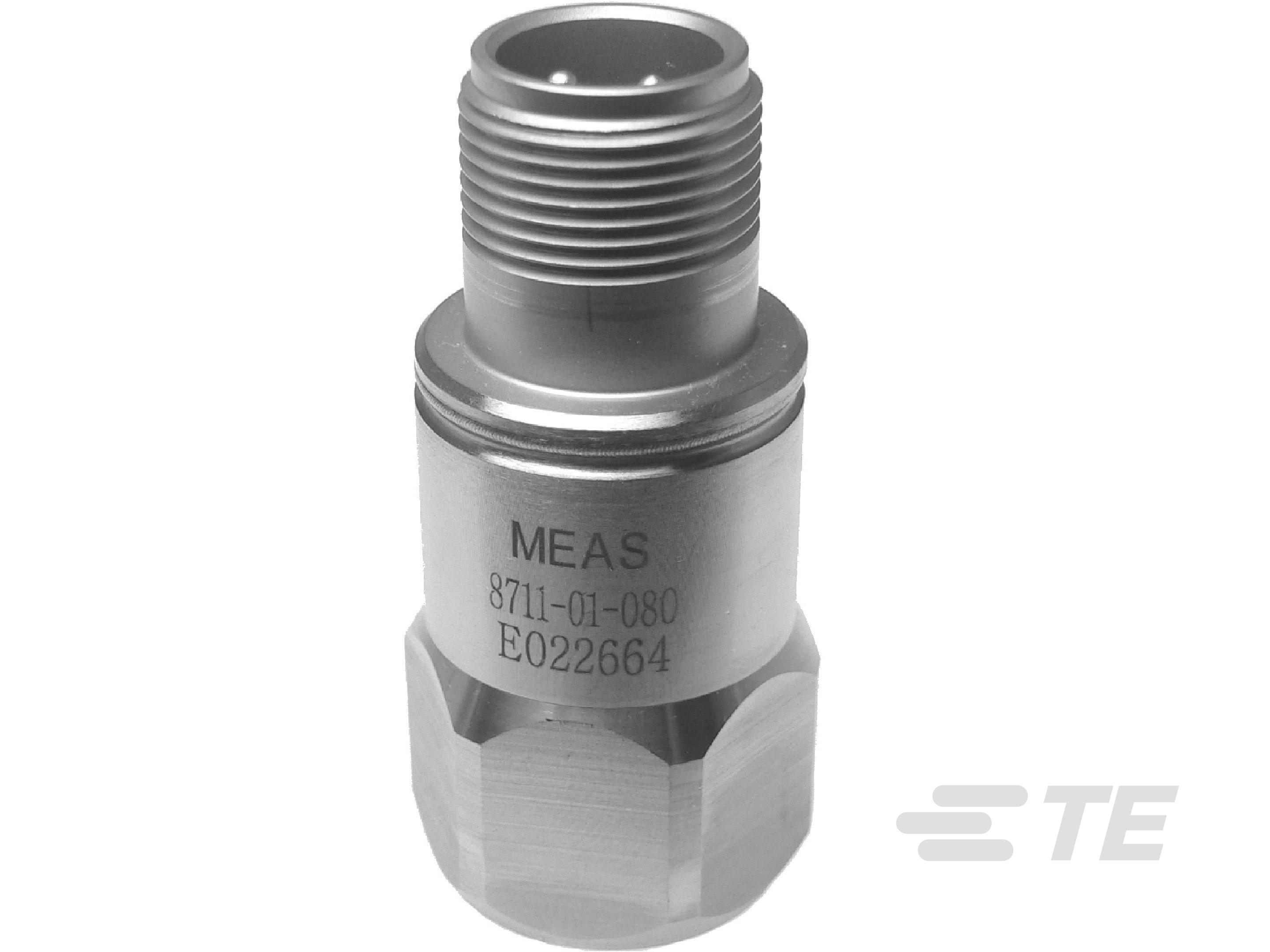

  • MEAS 8711-01
The Model 8711-01 are internally shielded rugged IEPE accelerometers designed for industrial condition monitoring.
More Less

Product Features

  • Accelerometer Type : IEPE

  • Vibration Sensor Product Type : Piezoelectric Accelerometer

  • Number of Sensing Axes : Uniaxial

  • Frequency Response (Hz): 0.1-6000 to 0.3-18000

  • Full Scale Output Voltage (VDC): ±5

Available from

LADD Inc

Build and price the product now

Overview

The accelerometers are available in ±5g to ±80g dynamic ranges and have a flat bandwidth up to greater than 10kHz. The model 8711-01 accelerometer features a top exit MIL-C-5015 connector and is designed to operate in temperature ranges from -55°C to +125°C.

BENEFITS

  • ±5g, ±10g, ±20g & ±80g Dynamic Ranges
  • Wide bandwidth up to >10kHz
  • Case Isolated, Internally Shielded
  • Hermetically Sealed, Welded
  • Annular Shear Mode
  • Reverse Wiring Protection
  • Stable Temperature Response

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Sensor Package  Plug & Play

  • Accelerometer Type  IEPE

  • Vibration Sensor Product Type  Piezoelectric Accelerometer

Configuration Features

  • Electrical Connection  2-Pin Connector

Electrical Characteristics

  • Full Scale Output Voltage (VDC) ±5

  • Excitation Voltage Range (VDC) 18 – 30

  • Excitation Current (mA) 2 – 10

Signal Characteristics

  • Frequency Response (Hz) 0.1-6000 to 0.3-18000

Body Features

  • Product Weight (g) 88, 105

  • Product Weight (oz) 3.7

  • Primary Product Material  Stainless Steel

  • Number of Sensing Axes  Uniaxial

Mechanical Attachment

  • Sensor Mount Type  Stud

Usage Conditions

  • Operating Temperature Range  -55 – 125 °C [ -67 – 257 °F ]

Operation/Application

  • Output Current Type  AC

Other

  • Acceleration Range (±) (g) 5, 10, 20, 80, 200, 500

  • Sensitivity (mV/g) 10, 25, 100, 250, 500, 1000

  • Non-Linearity (FSO) (%) ±1

Reference Number

  • TE Internal Number CAT-PPA0112
