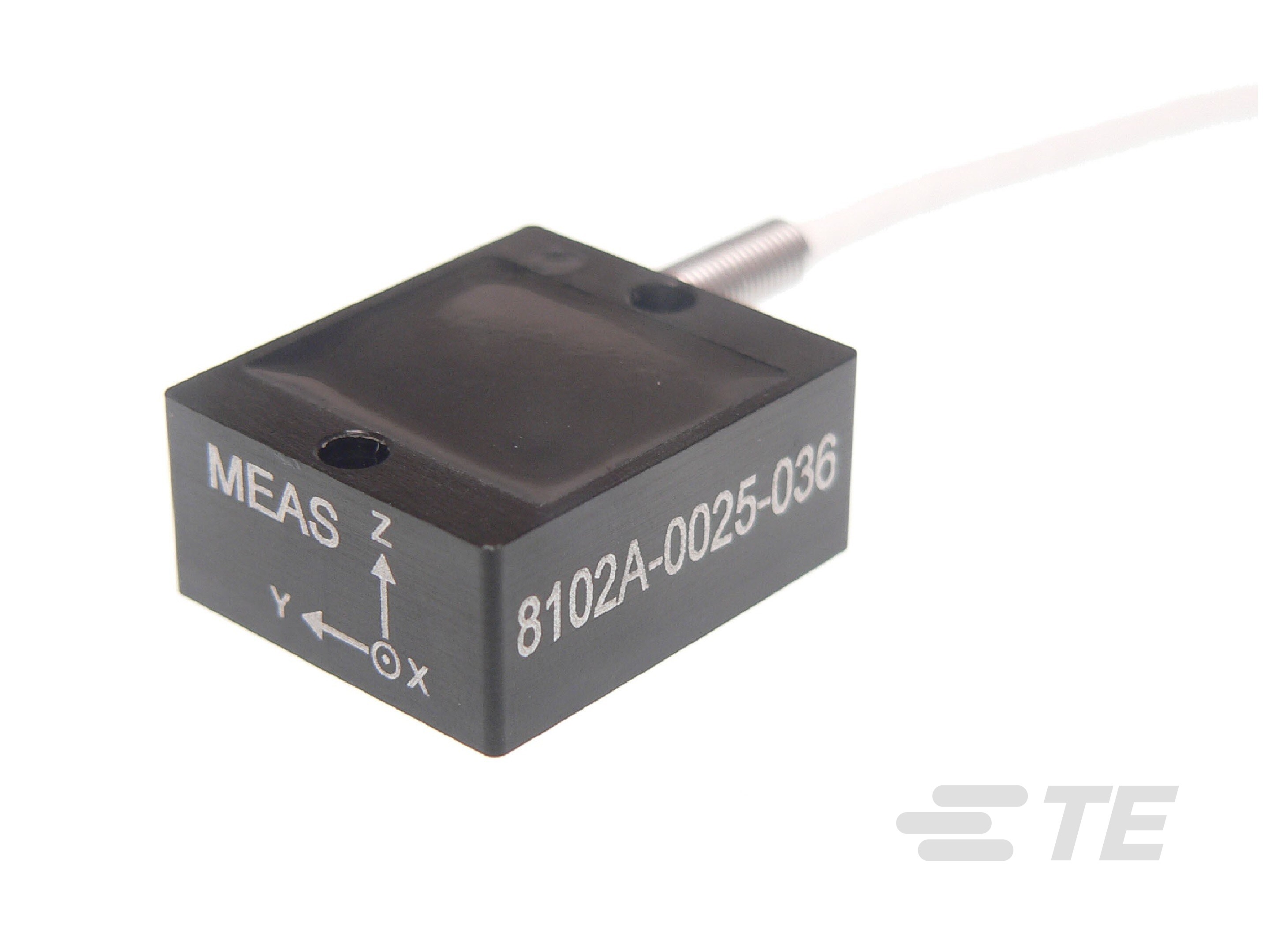

Low Current Triaxial Accelerometer

Low Current Triaxial Accelerometer-CAT-PPA0102
  • MEAS
The Model 8102 is a low cost, plug & play triaxial accelerometer with <22 micro amps of current consumption and low excitation voltage.
More Less

Product Features

  • Accelerometer Type : 3-Wire Voltage

  • Vibration Sensor Product Type : Piezoelectric Accelerometer

  • Number of Sensing Axes : Triaxial

  • Frequency Response (Hz): 2-6000

  • Full Scale Output Voltage (VDC): ±1.25

Available from

LADD Inc

Build and price the product now

Overview

Featuring stable piezo-ceramic crystals, the accelerometer incorporates full power and signal conditioning with a maximum current consumption of only 22 micro-amps.  The model 8102 is available from ±25g to ±6000g ranges and provides a flat frequency response up to 6kHz. The housing provides two holes for screw mounting and is offered in anodized Aluminum or Stainless Steel options.

BENEFITS

  • ±25g to ±6000g Full Scale Ranges
  • Low Cost Triaxial
  • Potted Construction
  • Piezo-Ceramic Shear Design
  • -40° to +125°C
  • Integral Cable for Plug & Play
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Sensor Package  Plug & Play

  • Accelerometer Type  3-Wire Voltage

  • Vibration Sensor Product Type  Piezoelectric Accelerometer

Configuration Features

  • Electrical Connection  Integral Cable

Electrical Characteristics

  • Excitation Voltage Range (VDC) 3.3 – 5.5

  • Full Scale Output Voltage (VDC) ±1.25

Signal Characteristics

  • Frequency Response (Hz) 2-6000

Body Features

  • Primary Product Material  Anodized Aluminum

  • Product Weight  15 g [ .525 oz ]

  • Number of Sensing Axes  Triaxial

Mechanical Attachment

  • Sensor Mount Type  Screw Mount

Usage Conditions

  • Operating Temperature Range  -40 – 125 °C [ -40 – 257 °F ]

Operation/Application

  • Output Current Type  AC

Other

  • Non-Linearity (FSO) (%) ±2

  • Acceleration Range (±) (g) 25 | 50 | 100 | 200 | 500 | 2000 | 6000

  • Sensitivity (mV/g) .2 | .62 | 2.5 | 6.25 | 12.5 | 25 | 50

Reference Number

  • TE Internal Number CAT-PPA0102
