Compensated 316L Pressure Sensor

Compensated 316L Pressure Sensor-CAT-MIPS0048
  • MEAS

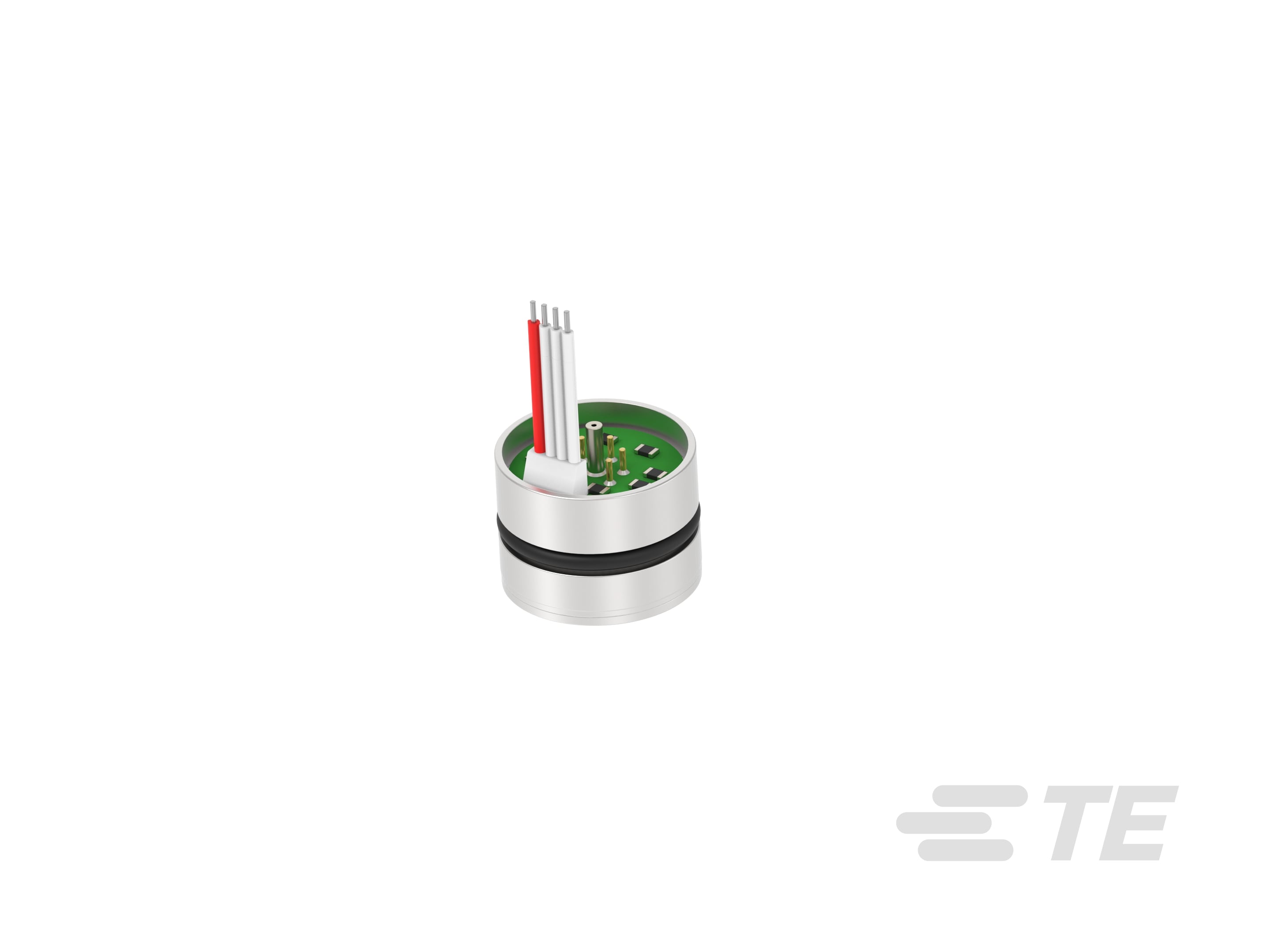

The TEI-19 compensated is a 19 mm small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing.
More Less

Product Features

  • Pressure (bar): .344 | 1.03 | 6.89 | 20.68 | 34.47

  • Pressure (psi): 5 | 15 | 100 | 300 | 500

  • Pressure Sensor Type : mV Output Pressure Sensors

  • Pressure Type : Absolute | Gauge

  • Output Signal Type : 100mV

  • Operating Temperature Range (°C): -40 – 125 | -20 – 70

  • Operating Temperature Range (°F): -40 – 257 | -4 – 158

Available from

LADD Inc

Build and price the product now

Overview

It is designed for O-ring mounting and OEM applications where compatibility with corrosive media is required. The sensing package utilizes silicone oil to transfer pressure from the 316L stainless steel diaphragm to the sensing element. A PCB is attached to the package that contains laser-trimmed resistors for temperature compensation and offset correction. For a similar sensor with same outline dimensions and similar parameters, refer to the 154N Compensated pressure sensor.

Benefits

  • O-Ring Mount
  • -40ºC to +125ºC Operating Temperature
  • Up to ±0.1% TYP. Pressure Non-Linearity
  • Solid State Reliability
  • Constant Current

Applications

  • Medical Instruments
  • Process Control
  • Fresh & Waste Water Measurements
  • Refrigeration/Compressors
  • Pressure TransmittersHydraulic Controls
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Pressure Sensor Type  mV Output Pressure Sensors

  • Pressure Type  Absolute | Gauge

  • Sensor Package  O-Ring Mount

Configuration Features

  • Electrical Connection  Ribbon Cable

Electrical Characteristics

  • Supply Current (mA) 1.5

Dimensions

  • Product Diameter  18.97 mm [ .746 in ]

  • Product Height  13.8 mm [ .54 in ]

Usage Conditions

  • Pressure (bar) .344 | 1.03 | 6.89 | 20.68 | 34.47

  • Pressure (psi) 5 | 15 | 100 | 300 | 500

  • Operating Temperature Range (°C) -40 – 125 | -20 – 70

  • Operating Temperature Range (°F) -40 – 257 | -4 – 158

Operation/Application

  • Proof Pressure Range  3X

  • Output Signal Type  100mV

Other

  • Sensor Options  No Tube | Vent Tube

  • Non-Linearity ± (%) .1

Reference Number

  • TE Internal Number CAT-MIPS0048
