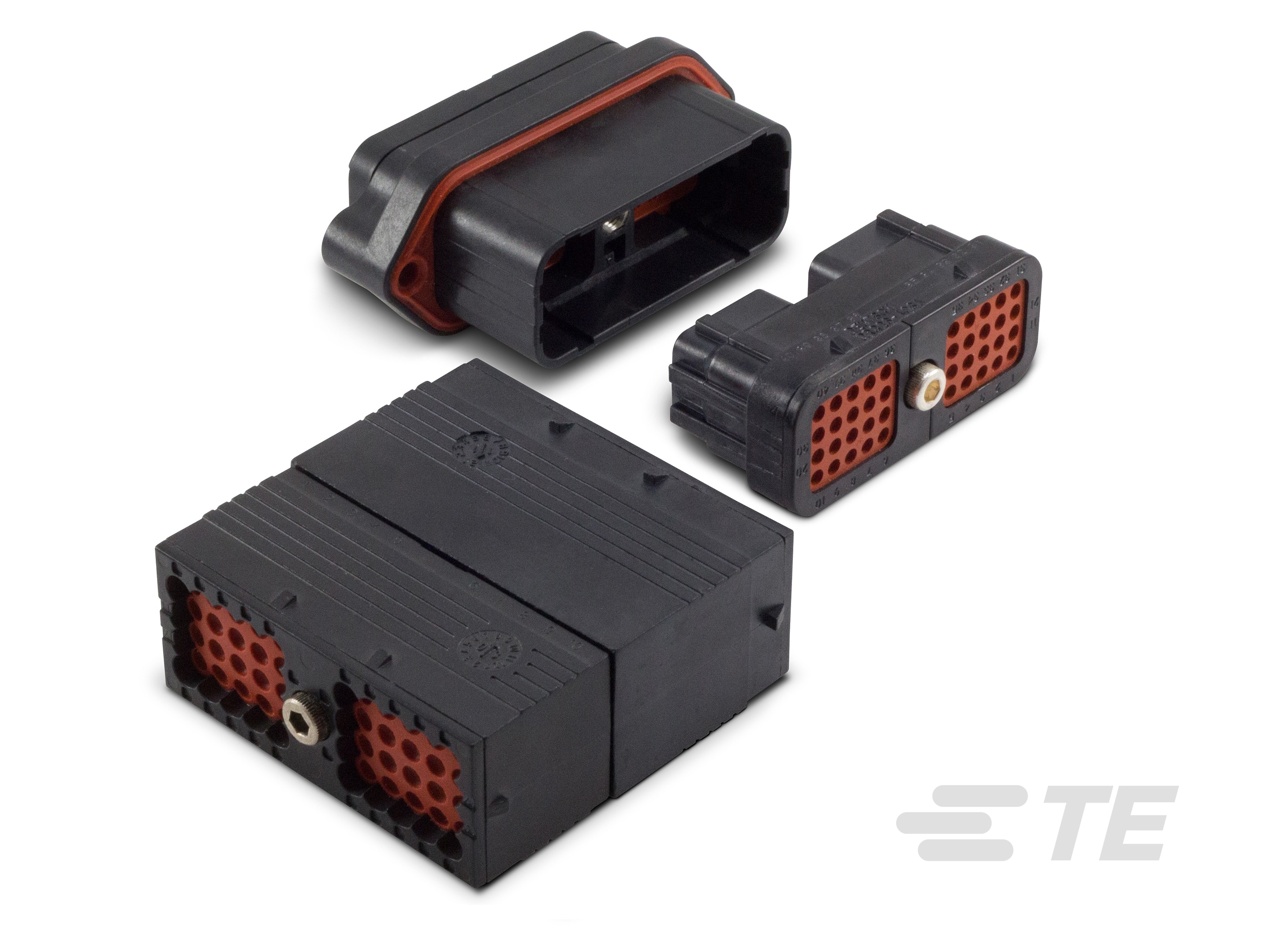

DEUTSCH DRC Housings

DEUTSCH DRC Housings-CAT-D799-CH8172
  • DEUTSCH
|
  • DEUTSCH DRC
DEUTSCH DRC housings are rugged rectangular connectors that are available in 24-70 cavities and feature a jackscrew for mating. They accept size 16 and 20 DEUTSCH contacts that are rated for 13 and 7.5 amps.
More Less
Connect with Us

Product Features

  • Nominal Voltage Architecture (V): 12 | 24 | 48 | 240

  • Connector & Housing Type : Housing for Female Terminals | Housing for Male Terminals | Plug

  • Number of Positions : 24 | 38 | 40 | 50 | 60 | 70

  • Sealable : Yes

  • Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

Available from

LADD Inc
Overview
DEUTSCH DRC housings are available in several mounting options including in-line, flange, and PCB mount.

Series Overview

  • Accepts contact sizes 16 (13 amps), and 20 (7.5 amps)
  • 14-22 AWG (2.50-0.35 mm2)
  • 24, 40, 50, 60, 64, and 70 cavity arrangements
  • In-line, flange, or PCB mount
  • Rectangular, thermoplastic housing
  • Jackscrew for mating
  1. DEUTSCH DRC Connector Overview & Assembly Instructions (English)

Learn about our high-pin count DEUTSCH DRC connectors for harsh environment applications. Watch this video for an overview of the connectors and for step-by-step instructions on inserting and removing contacts, as well as mating and unmating.

DEUTSCH DRC.TE Logos Video

Additional DEUTSCH DRC products

FAQ

Frequently Asked Questions

Q:    What is a DRC connector?

A:    DEUTSCH DRC environmentally sealed connectors are designed for cable to cable, cable to board, and cable to device applications . DRC connectors are used in harsh environment applications where even a small degradation in connection may be critical.

Q:    What are the appropriate applications for DRC connectors?

A:    Truck, Bus, Off-highway, Construction, Agriculture, Mining, Emergency Vehicles, Forestry, Recreational, Marine, Motorcycle



READ MORE FAQS ABOUT DEUTSCH DRC CONNECTORS

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Mixed & Hybrid Connector  No | Yes

  • Connector Shape  Rectangular

  • Connector & Housing Type  Housing for Female Terminals | Housing for Male Terminals | Plug

  • Sealable  Yes

  • Primary Locking Feature  Integrated in Housing

  • Connector System  Wire-to-Wire

  • Connector & Contact Terminates To  Wire & Cable

Configuration Features

  • Blank Cavity Position  0

  • Connector Seal Code  E Seal | N Seal

  • Connector Modification  Bonded Front Seal | Stainless Steel Retaining Clip | Wire Router

  • Number of Positions  24 | 38 | 40 | 50 | 60 | 70

  • Number of Rows  4 | 5 | 6 | 7

Electrical Characteristics

  • Operating Voltage (VDC) 250

  • Operating Voltage (VAC) 250

  • Nominal Voltage Architecture (V) 12 | 24 | 48 | 240

Body Features

  • Cable Exit Angle  180°

  • Primary Product Color  Black

  • Connector & Keying Code  01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | A | B | C | D

Contact Features

  • Contact Type  Pin | Socket

  • Contact Size  Size 12 | Size 16 | Size 20

  • Mating Pin Diameter (mm) 1.02 | 1.59 | 1.6 | 2.39

  • Mating Pin Diameter (in) .04 | .063 | .094

  • Contact Current Rating (Max) (A) 7.5 | 13 | 25

Mechanical Attachment

  • Mating Alignment  With

  • Terminal Position Assurance  No

  • Mating Alignment Type  Keyed | Polarizing Rib

  • Strain Relief  Add By Accessory | With | Without

  • Connector Mounting Type  Cable Mount (Free-Hanging) | Panel Mount

Housing Features

  • Housing Material  PA | PA GF | PEI (Polyetherimide) | PPS GF

  • Centerline (Pitch) (mm) 4.42 | 5.41 | 5.49 | 5.5

  • Centerline (Pitch) (in) .174 | .213 | .216

Dimensions

  • Product Width (mm) 36.1 | 46.43 | 49.38 | 50.9 | 50.93 | 52.53 | 53.34 | 54.71 | 68.58 | 70.36 | 72.85 | 73.86 | 77.22 | 97.54 | 103.99 | 126.82

  • Product Width (in) 1.42 | 1.828 | 1.944 | 2 | 2.004 | 2.068 | 2.1 | 2.154 | 2.7 | 2.77 | 2.868 | 2.908 | 3.04 | 3.84 | 4.094 | 4.993

  • Compatible Insulation Diameter Range (mm) 1.02 – 2.41 | 1.35 – 3.05 | 1.4 – 3.8 | 2.46 – 4.95 | 2.54 – 3.4

  • Compatible Insulation Diameter Range (in) .04 – .095 | .053 – .12 | .055 – .15 | .097 – .17 | .1 – .134

  • Row-to-Row Spacing (mm) 4.42 | 5.41 | 5.49 | 5.5

  • Row-to-Row Spacing (in) .174 | .213 | .216

  • Connector Height (mm) 29.16 | 30.53 | 32.64 | 36.06 | 36.09 | 36.45 | 41.7 | 45.16 | 48.11 | 51.26 | 53.09 | 53.29 | 58.93 | 93.98

  • Connector Height (in) 1.148 | 1.202 | 1.285 | 1.421 | 1.435 | 1.64 | 1.778 | 1.894 | 2.018 | 2.09 | 2.098 | 2.32 | 3.7

  • Product Length (mm) 27.94 | 32.36 | 36.58 | 36.78 | 38.1 | 40.44 | 40.51 | 40.56 | 40.64 | 41.71 | 41.73 | 43.15 | 44.25 | 44.63 | 45.69 | 50.83 | 104

  • Product Length (in) 1.1 | 1.274 | 1.44 | 1.448 | 1.5 | 1.592 | 1.595 | 1.597 | 1.6 | 1.642 | 1.643 | 1.699 | 1.742 | 1.757 | 1.799 | 2.001 | 4.09

Usage Conditions

  • Operating Temperature Range  -55 – 125 °C [ -67 – 257 °F ]

  • Operating Temperature (Max)  125 °C [ 257 °F ]

Operation/Application

  • Circuit Application  Power

Industry Standards

  • UL Flammability Rating  20mm Flame Test per Standard UL-94 | UL 94HB | UL 94V-0

  • IP Rating  IP68 | IP6K9K | Not Tested

  • Compatible With Agency/Standards Products  SAE J2030

Packaging Features

  • Packaging Method  Box

  • Packaging Quantity  1 | 21 | 50 | 60 | 100 | 125

Other

  • Serviceable  Yes

  • Connector Position Assurance Capable  No

Reference Number

  • TE Internal Number CAT-D799-CH8172
