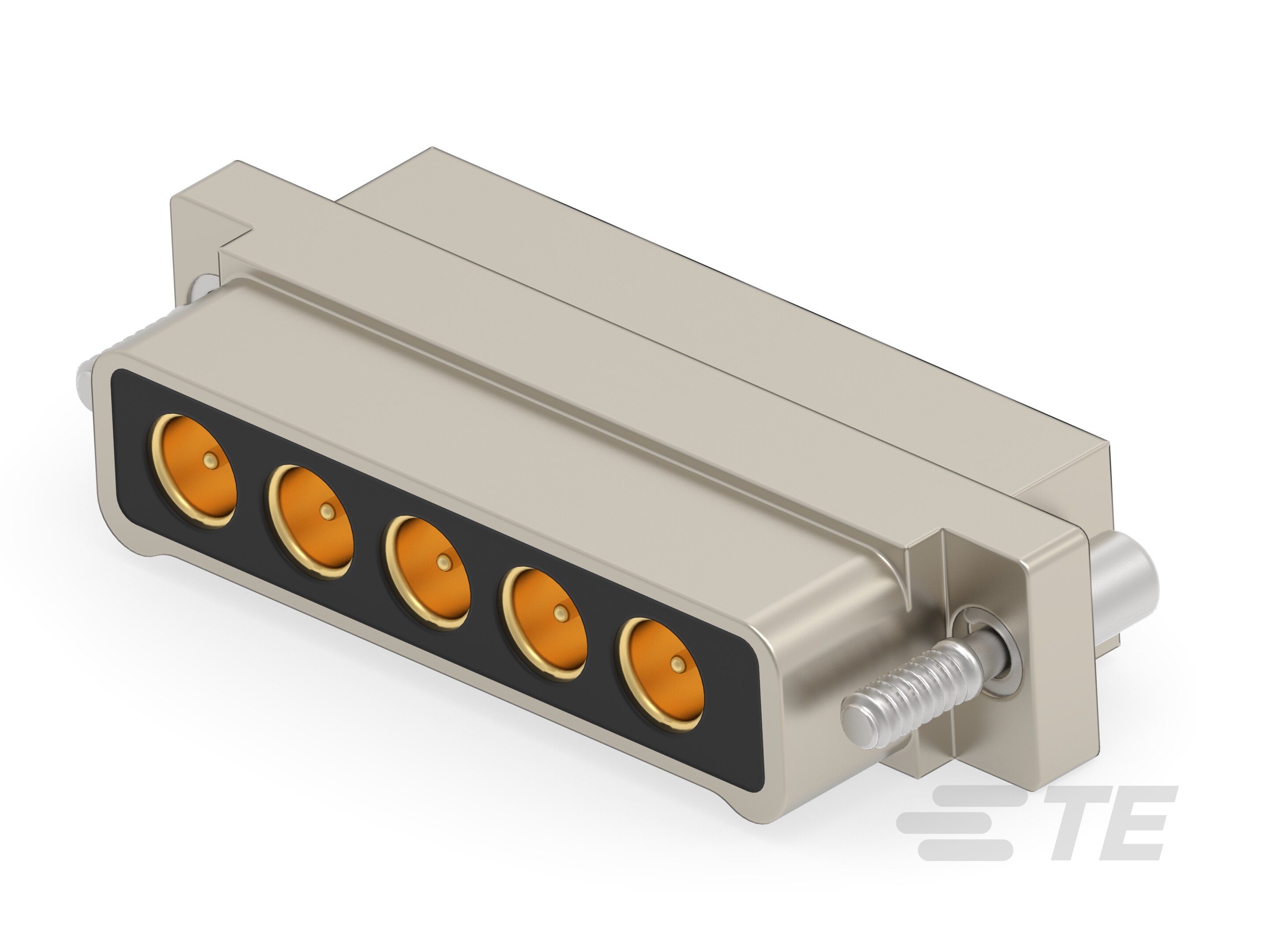

Product Type Features
-
Connector Product Type
Connector Assembly
-
RF Interface
Nanominiature
-
RF Connector Style
Plug
-
Compatible With RF Cable Type
RG 178
-
Connector System
Wire-to-Board
-
Sealable
No
-
Connector & Contact Terminates To
Wire & Cable
Configuration Features
-
PCB Mount Orientation
Horizontal
-
Number of Positions
3, 6, 7, 9
-
Number of Coaxial Contacts
3, 6, 7, 9
Electrical Characteristics
Body Features
-
Cable Connector Orientation
Right Angle
-
Body Material
Aluminum
-
Body Material Finish
Plated
-
Body Plating Material
Electroless Nickel
Contact Features
-
RF Connector Center Contact Plating Material
Gold (Au)
-
RF Connector Center Contact Material
Beryllium Copper
Termination Features
-
Termination Method to PCB
Surface Mount
-
Termination Method to Wire & Cable
Solder
Mechanical Attachment
-
RF Connector Coupling Mechanism
Screw
-
Connector Mounting Type
Board Mount, Panel Mount
-
RF Contact Captivation Method
Epoxy, Solder
Dimensions
-
Product Length
304.8 mm [ 12 in ]
-
Product Length (in)
12
Usage Conditions
-
Operating Temperature Range
-55 – 125 °C [ -67 – 257 °F ]
Operation/Application
-
Operating Frequency (GHz)
60 – 1
Packaging Features
-
Packaging Method
Package, Package & Box
Reference Number
-
TE Internal Number
CAT-COAX-PLUG
