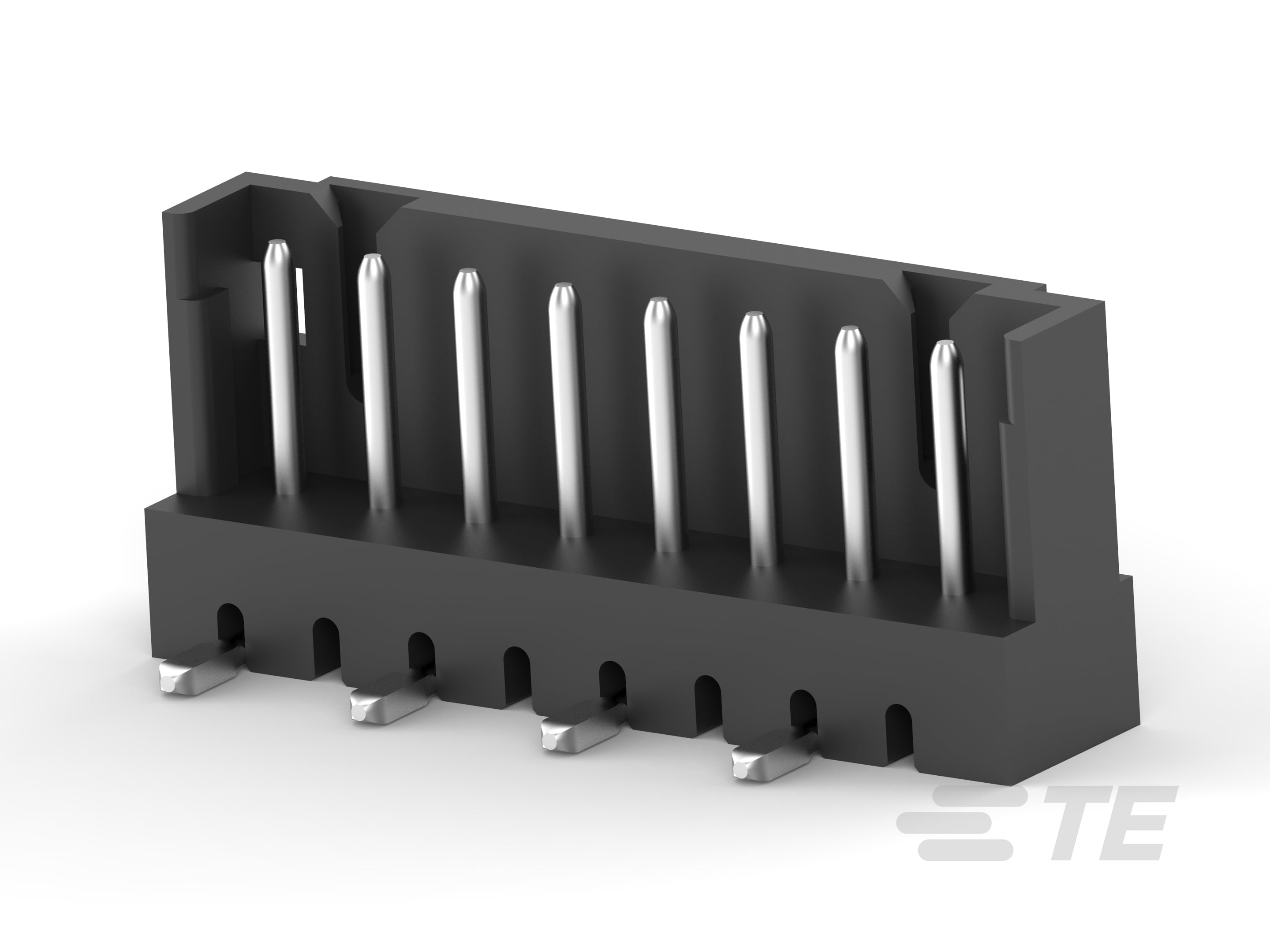

CT Post Header Assembly: Part. Shrouded

CT Post Header Assembly: Part. Shrouded-CAT-3984552-PHITPS
More Less
Connect with Us

Product Features

  • PCB Connector Type : PCB Mount Header

  • PCB Mount Orientation : Vertical

  • Connector System : Wire-to-Board

  • Number of Positions : 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9

  • Centerline (Pitch) (mm): 2

  • Centerline (Pitch) (in): .078 | .079

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • PCB Connector Type  PCB Mount Header

  • Connector System  Wire-to-Board

  • Header Type  Partially Shrouded

  • Sealable  No

  • Connector & Contact Terminates To  Printed Circuit Board

  • Connector Product Type  Connector Assembly

Configuration Features

  • PCB Mount Orientation  Vertical

  • Number of Positions  2 | 3 | 4 | 5 | 6 | 7 | 8 | 9

  • Number of Rows  1

Electrical Characteristics

  • Operating Voltage (VAC) 125

  • Operating Voltage (VDC) 125

Body Features

  • Primary Product Color  Black | Natural

Contact Features

  • Contact Layout  Inline | Staggered

  • Contact Mating Area Length  4.5 mm [ .177 in ]

  • PCB Contact Termination Area Plating Material Thickness  1 – 2 µm [ 39.37 – 78.73 µin ]

  • Contact Shape & Form  Round

  • Contact Base Material  Brass

  • Mating Pin Diameter  .6 mm [ .024 in ]

  • Contact Mating Area Plating Material  Tin (Sn)

  • Contact Mating Area Plating Material Finish  Matte

  • Contact Mating Area Plating Material Thickness  1 – 2 µm [ 39.37 – 78.73 µin ]

  • Contact Type  Pin

  • Contact Current Rating (Max) (A) 4

  • PCB Contact Termination Area Plating Material  Tin

Termination Features

  • Termination Post & Tail Diameter  .6 mm [ .024 in ]

  • Termination Method to PCB  Surface Mount

Mechanical Attachment

  • PCB Mount Retention Type  Boardlock

  • Panel Mount Feature  With

  • Mating Alignment Type  Polarization

  • PCB Mount Alignment  With | Without

  • Mating Retention  Without

  • PCB Mount Retention  With | Without

  • Connector Mounting Type  Board Mount

  • Mating Alignment  With

Housing Features

  • Centerline (Pitch) (mm) 2

  • Centerline (Pitch) (in) .078 | .079

  • Housing Material  6T PA GF 30 | PA GF30

Dimensions

  • PCB Thickness (Recommended)  .8 mm [ .031 – .063 in ]

  • Connector Length (mm) 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20

  • Connector Length (in) .236 | .314 | .393 | .472 | .551 | .63 | .709 | .787

  • Connector Width  4 mm [ .157 in ]

  • Connector Height  7.8 mm [ .307 in ]

Usage Conditions

  • Operating Temperature Range  -40 – 105 °C [ -40 – 221 °F ]

Operation/Application

  • Assembly Process Feature  Pick and Place Cover | Without Pick and Place Cover

  • Circuit Application  Power & Signal

Industry Standards

  • Compatible With Approved Standards Products  CSA LR7189 | UL E28476

  • Compatible With Agency/Standards Products  CSA | UL

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Quantity  20 | 25 | 30 | 40 | 45 | 60 | 80 | 2000

  • Packaging Method  Box | Tube

Reference Number

  • TE Internal Number CAT-3984552-PHITPS
