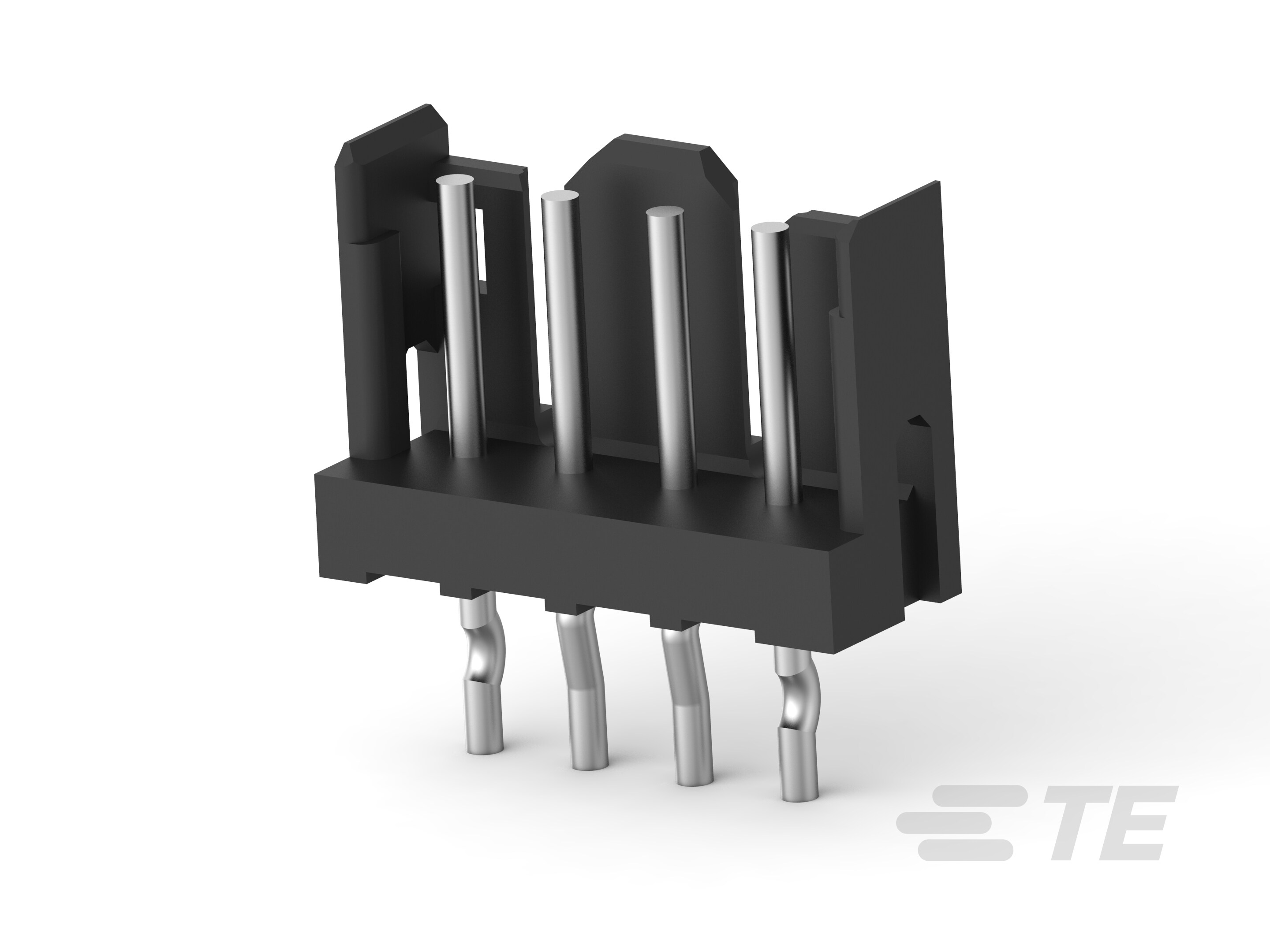

CT 2mm Post Header Assembly with Kink - Vertical

CT 2mm Post Header Assembly with Kink - Vertical-CAT-3980408-PHDWKV
AMP CT 2.0mm Post Header Assembly: Box V with Kink.
More Less
Connect with Us

Product Features

  • PCB Connector Type : PCB Mount Header

  • PCB Mount Orientation : Vertical

  • Connector System : Wire-to-Board

  • Number of Positions : 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15

  • Number of Rows : 1

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • PCB Connector Type  PCB Mount Header

  • Connector System  Wire-to-Board

  • Header Type  Partially Shrouded

  • Sealable  No

  • Connector & Contact Terminates To  Printed Circuit Board

  • Connector Product Type  Connector Assembly

Configuration Features

  • PCB Mount Orientation  Vertical

  • Number of Positions  2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15

  • Number of Rows  1

Electrical Characteristics

  • Operating Voltage (VDC) 125

  • Operating Voltage (VAC) 125

Body Features

  • Primary Product Color  Black | Blue | Natural | Yellow

Contact Features

  • Contact Layout  Inline

  • Contact Mating Area Length  4.5 mm [ .177 in ]

  • PCB Contact Termination Area Plating Material Thickness (µm) 1 – 2

  • PCB Contact Termination Area Plating Material Thickness (µin) 39.37 – 78.73 | 39.37 – 118.1

  • Contact Mating Area Plating Material Finish  Bright | Matte

  • Contact Shape & Form  Round

  • Contact Base Material  Brass

  • Contact Mating Area Plating Material Thickness  1 – 2 µm [ 39.37 – 78.73 µin ]

  • PCB Contact Termination Area Plating Material  Tin

  • Mating Pin Diameter  .6 mm [ .024 in ]

  • Contact Mating Area Plating Material  Tin (Sn)

  • Contact Type  Pin

  • Contact Current Rating (Max) (A) 4

Termination Features

  • Termination Post & Tail Length  3.2 mm [ .126 in ]

  • Termination Post & Tail Diameter  .6 mm [ .024 in ]

  • Termination Method to PCB  Through Hole - Solder

Mechanical Attachment

  • PCB Mount Retention Type  Kinked Legs

  • Mating Retention  Without

  • Panel Mount Feature  With

  • Mating Alignment Type  Polarization

  • PCB Mount Retention  With

  • PCB Mount Alignment  Without

  • Connector Mounting Type  Board Mount

  • Mating Alignment  With

Housing Features

  • Housing Material  Nylon 66

  • Centerline (Pitch)  2 mm [ .079 in ]

Dimensions

  • PCB Thickness (Recommended)  .8 mm [ .031 – .063 in ]

  • Connector Length (mm) 5.8 | 7.8 | 9.8 | 11.8 | 13.8 | 15.8 | 17.8 | 19.8 | 21.8 | 23.8 | 25.8 | 27.8 | 29.8 | 31.8

  • Connector Length (in) .228 | .307 | .386 | .465 | .543 | .622 | .701 | .78 | .858 | .937 | 1.016 | 1.095 | 1.173 | 1.252

  • Connector Width  3.6 mm [ .141 in ]

  • Connector Height  6.8 mm [ .267 in ]

Usage Conditions

  • Operating Temperature Range  -40 – 105 °C [ -40 – 221 °F ]

Operation/Application

  • Assembly Process Feature  Pick and Place Cover

  • Circuit Application  Power & Signal

Industry Standards

  • Compatible With Approved Standards Products  CSA LR7189 | UL E28476

  • Compatible With Agency/Standards Products  CSA | UL

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Quantity  500 | 1000

  • Packaging Method  Bag | Box

Reference Number

  • TE Internal Number CAT-3980408-PHDWKV
