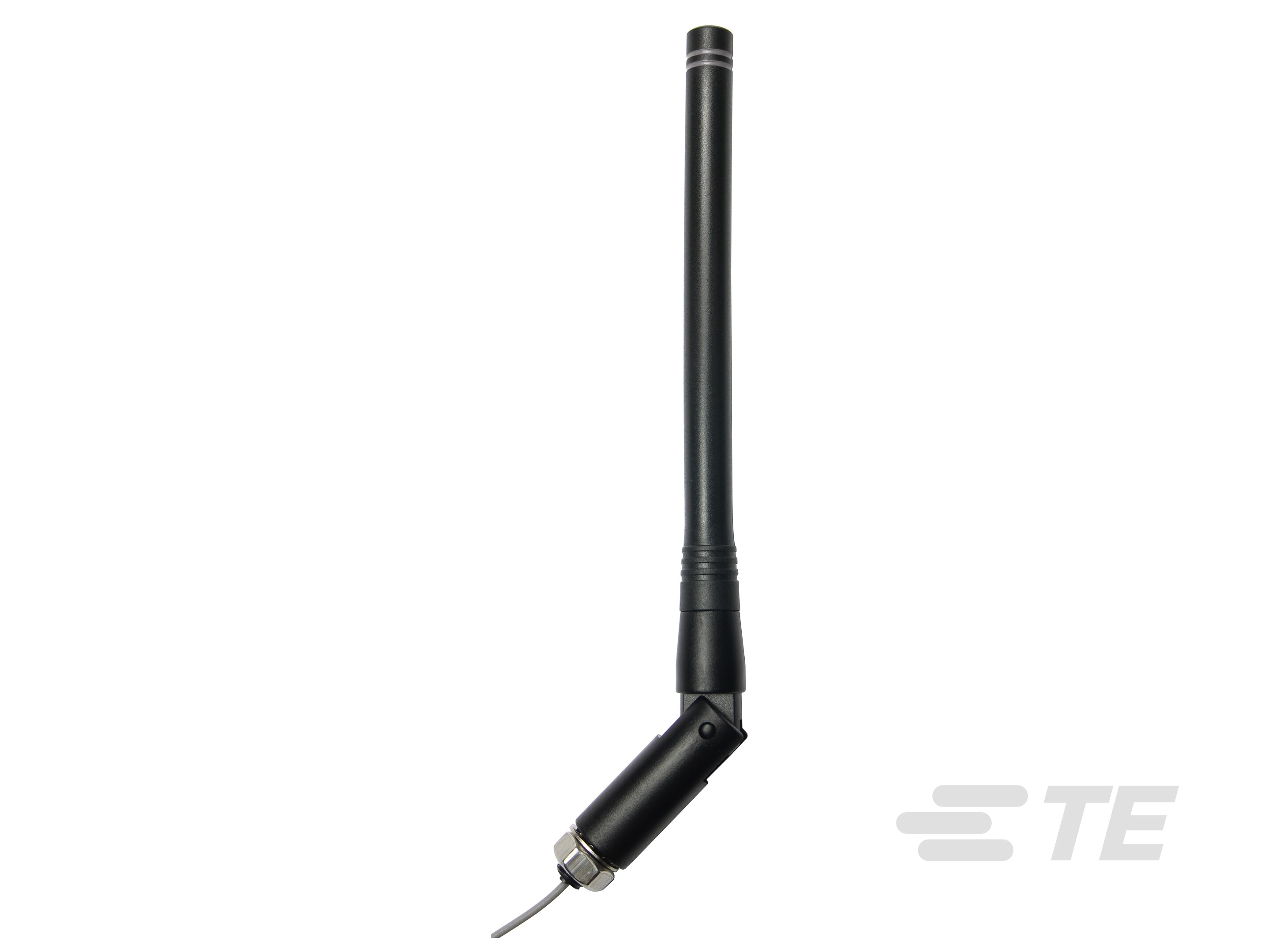

ANT-868-PML-UFL
Terminal/Duck Antenna, Single Band, LPWAN / LoRaWAN, External Mount, Stud/Screw/Lug Mount, MHF / MHF1 / UMCC, Omnidirectional, Single Port
ANT-868-PML-UFL
Terminal/Duck Antenna, Single Band, LPWAN / LoRaWAN, External Mount, Stud/Screw/Lug Mount, MHF / MHF1 / UMCC, Omnidirectional, Single Port
- TE Internal #: ANT-868-PML-UFL
- TE Internal Description: Antenna R-Angle Swivel 868MHz RG178 UFL
-
Antenna Type : Terminal/Duck
-
Band Type : Single Band
-
Primary Application : LoRaWAN, LPWAN
-
Wireless Application : LoRaWAN, LPWAN, Wi-Fi
-
Mounting Location : External
Documents
Product Drawings
- ANTENNA PML TYPE RIGHT ANGLE SWIVEL WHIP U.FL TYPE II ENG_CD_C-ANT-FFF-PML-UFL_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_ANT-868-PML-UFL_A.pdf 3D
- Customer View Model ENG_CVM_CVM_ANT-868-PML-UFL_A.3d_igs.zip English
- ENG_CVM_CVM_ANT-868-PML-UFL_A.3d_stp.zip English
- ENG_CVM_CVM_ANT-868-PML-UFL_A.2d_dxf.zip English
Datasheets & Catalog Pages
- ANT-868-PML-ccc ENG_DS_ANT-868-PML-ccc_A.pdf English
