368538-2

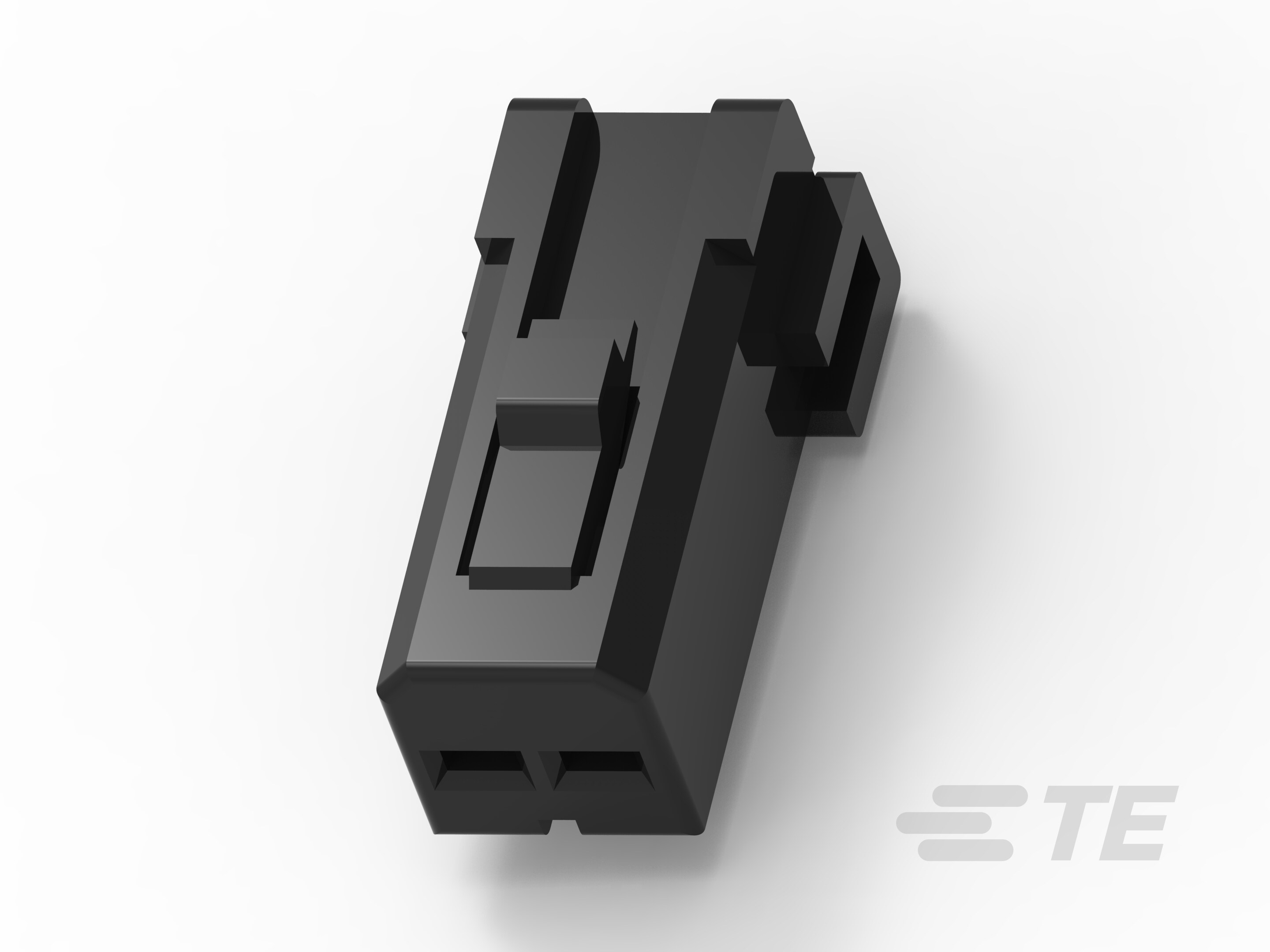

Housing for Female Terminals, Wire-to-Wire, 2 Position, 3.5 mm [.137 in] Centerline, Black, Signal, Multilock Connector System
368538-2
Housing for Female Terminals, Wire-to-Wire, 2 Position, 3.5 mm [.137 in] Centerline, Black, Signal, Multilock Connector System
-
- Multilock Connector System
- TE Internal #: 368538-2
- TE Internal Description: 070 MLC PLUG 2P HSG BLACK
- All MULTILOCK, CONNECTOR HOUSING (393)
-
Connector System : Wire-to-Wire
-
Number of Positions : 2
-
Connector & Housing Type : Housing for Female Terminals
-
Centerline (Pitch) : 3.5 mm [ .137 in ]
-
Sealable : No
Documents
Product Drawings
- .070 MLC 2P PLUG HSG English
- .070 MLC 2P PLUG HSG ENG_CD_368538_C1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF ENG_CVM_368538-2_B.pdf English
- Customer View Model ENG_CVM_368538-2_B.2d_dxf.zip English
- ENG_CVM_368538-2_B.3d_igs.zip English
- ENG_CVM_368538-2_B.3d_stp.zip English
Datasheets & Catalog Pages
- MULTILOCK Connector System ENG_CS_1654355_MULTILOCK_0911.pdf English
Product Specifications
- 070 MLC Series ENG_SS_108-61520_A.pdf English
