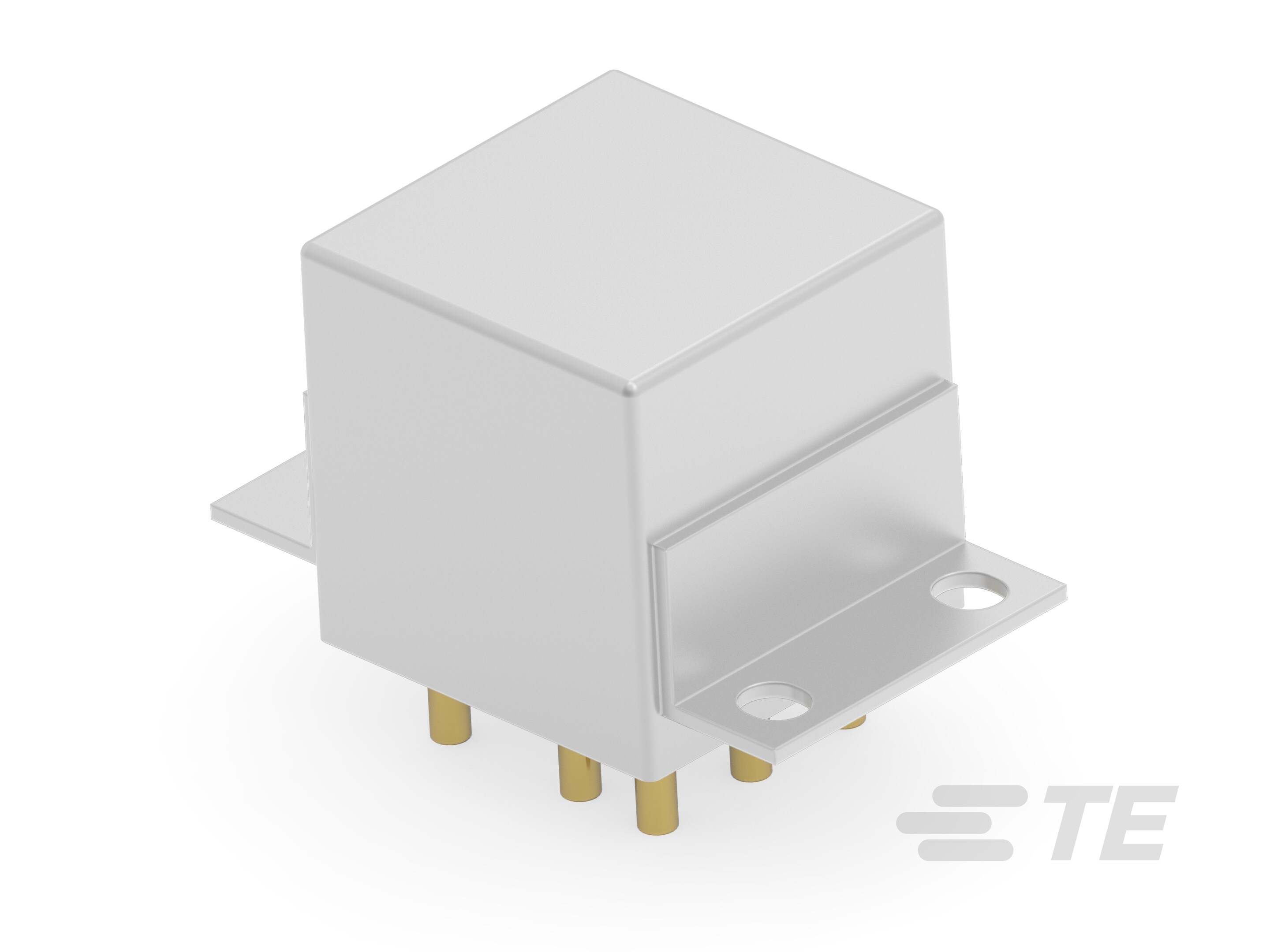

FCA-325-AV9

Active

General Purpose Power Relay, AC, Polarized, Monostable, 3 Form C 3PDT-CO, 25 A Contact Rating, 115 VAC Coil Voltage, Socket Mount, CII FCA-325 Series

FCA-325-AV9

Active

General Purpose Power Relay, AC, Polarized, Monostable, 3 Form C 3PDT-CO, 25 A Contact Rating, 115 VAC Coil Voltage, Socket Mount, CII FCA-325 Series

- CII
- CII FCA-325 Series

TE Internal #: 3-1617753-5
TE Internal Description: FCA-325-AV9

Relay & Contactor Type : General Purpose Power Relay
Current Type : AC
Coil Magnetic System : Polarized, Monostable
Contact Arrangement : 3 Form C 3PDT-CO
Contact Current Rating (A): 25

See All Features

More Less

Compatible Parts & Tooling

Documents

Product Change Notification

View Product Change Notification Login required to access product change notifications

Features

Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

Product Type Features

Relay & Contactor Type : General Purpose Power Relay

Configuration Features

Contact Arrangement : 3 Form C 3PDT-CO

Electrical Characteristics

Contact Switching Voltage (Max) (VAC): 115, 200
Coil Current (A): .03
Contact Current Rating (A): 25
Coil Voltage Rating (VAC): 115

Body Features

Enclosure Type : Hermetically Sealed

Contact Features

Terminal Plating : Gold
Contact Material : Silver Cadmium Oxide

Termination Features

Main Termination & Connection Type : Socket Pins
Coil Termination & Connection Type : Socket Pins

Mechanical Attachment

Product Mounting Feature Type : Mounting Brackets
Product Mount Type : Socket Mount

Usage Conditions

Operating Temperature Range : -70 – 125 °C [ -94 – 257 °F ]
Environmental Ambient Temperature (Max) : 125 °C [ 257 °F ]

Operation/Application

Shock Resistance : 200G's, 6ms
Vibration Resistance : 30G's, 33 – 3000Hz
Current Type : AC
Coil Magnetic System : Polarized, Monostable

FCA-325-AV9

General Purpose Power Relay, AC, Polarized, Monostable, 3 Form C 3PDT-CO, 25 A Contact Rating, 115 VAC Coil Voltage, Socket Mount, CII FCA-325 Series

FCA-325-AV9

General Purpose Power Relay, AC, Polarized, Monostable, 3 Form C 3PDT-CO, 25 A Contact Rating, 115 VAC Coil Voltage, Socket Mount, CII FCA-325 Series

Relay & Contactor Type : General Purpose Power Relay

Current Type : AC

Coil Magnetic System : Polarized, Monostable

Contact Arrangement : 3 Form C 3PDT-CO

Contact Current Rating (A): 25

Documents

Product Drawings

CAD Files

Datasheets & Catalog Pages

Product Change Notification

Features

Product Type Features

Relay & Contactor Type : General Purpose Power Relay

Configuration Features

Contact Arrangement : 3 Form C 3PDT-CO

Electrical Characteristics

Contact Switching Voltage (Max) (VAC): 115, 200

Coil Current (A): .03

Contact Current Rating (A): 25

Coil Voltage Rating (VAC): 115

Body Features

Enclosure Type : Hermetically Sealed

Contact Features

Terminal Plating : Gold

Contact Material : Silver Cadmium Oxide

Termination Features

Main Termination & Connection Type : Socket Pins

Coil Termination & Connection Type : Socket Pins

Mechanical Attachment

Product Mounting Feature Type : Mounting Brackets

Product Mount Type : Socket Mount

Usage Conditions

Operating Temperature Range : -70 – 125 °C [ -94 – 257 °F ]

Environmental Ambient Temperature (Max) : 125 °C [ 257 °F ]

Operation/Application

Shock Resistance : 200G's, 6ms

Vibration Resistance : 30G's, 33 – 3000Hz

Current Type : AC

Coil Magnetic System : Polarized, Monostable

Product Compliance
