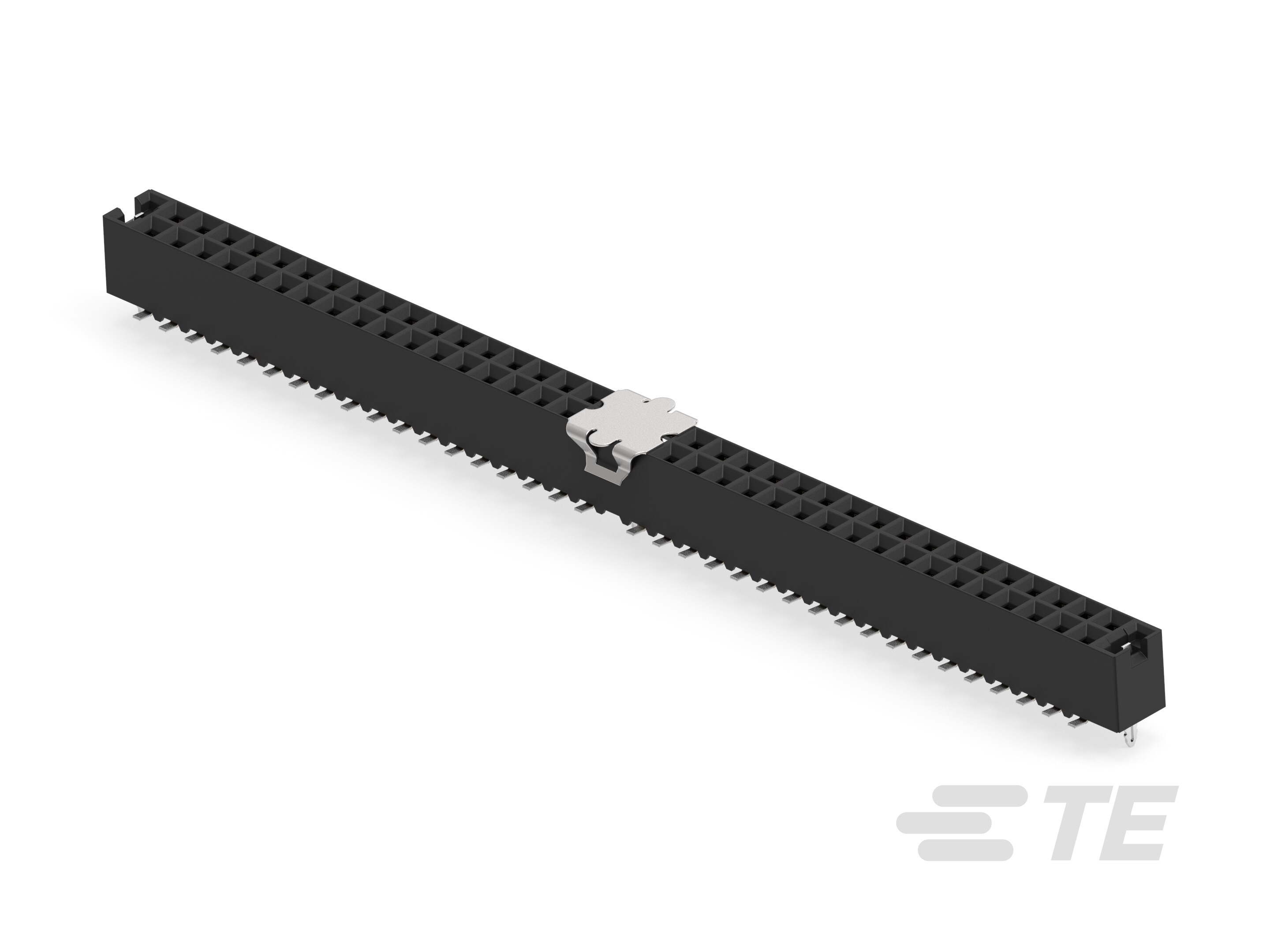

• PCB Connector Type : PCB Mount Receptacle

• Connector System : Board-to-Board

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• Connector Product Type : Connector Assembly

• Stackable : No

• Board-to-Board Configuration : Parallel

• PCB Mount Orientation : Vertical

• Number of Positions : 72

• Number of Rows : 2

• Insulation Resistance (MΩ): 5000

• Operating Voltage (VAC): 250

• Connector Profile : Standard

• Primary Product Color : Black

• PCB Contact Termination Area Plating Material : Tin-Lead

• Contact Base Material : Phosphor Bronze

• Mating Square Post Dimension : .64 mm [ .025 in ]

• Contact Mating Area Plating Material Thickness : .762 µm [ 30 µin ]

• Contact Mating Area Plating Material : Gold (Au)

• Contact Type : Socket

• Contact Current Rating (Max) (A): 3

• Rectangular Termination Post & Tail Thickness : .2 mm [ .008 in ]

• Rectangular Termination Post & Tail Width : .7 mm [ .028 in ]

• Termination Method to PCB : Surface Mount

• PCB Mount Retention Type : Hold-Down Post

• PCB Mount Retention : With

• PCB Mount Alignment : Without

• Connector Mounting Type : Board Mount

• Mating Alignment : Without

• Housing Material : Polyester GF

• Mating Entry Location : Bottom & Top

• Centerline (Pitch) : 2.54 mm [ .1 in ]

• Connector Height : 6.73 mm [ .265 in ]

• PCB Thickness (Recommended) : 1.57 mm [ .055 – .095 in ]

• Stack Height : 10.62 mm [ .418 in ]

• Row-to-Row Spacing : 2.54 mm [ .1 in ]

• Housing Temperature Rating : High

• Operating Temperature Range : -65 – 125 °C [ -85 – 257 °F ]

• Circuit Application : Signal

• Compatible With Approved Standards Products : CSA LR7189, UL E28476

• UL Flammability Rating : UL 94V-0
