Name: HPF 1.2,-,SWS,LL,GREENSILVER 0.75-1.0FLR
Brand: TE Connectivity (TE)

Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

Product Type Features

Receptacle Style : 180°
Primary Locking Feature : Locking Lance
Sealable : Yes

Body Features

Terminal Seal Type : Single Wire Seal (SWS)

Contact Features

Wire Contact Termination Area Plating Material : Silver
Contact Fabrication : Stamped & Formed
Contact Size : 1.2mm
Crimp Type : F-Crimp
Typical Current Rating (A): 20
Terminal Type : Receptacle
Mating Tab Width : 1.2 mm [ .047 in ]
Interface Plating : Silver (Ag)
Mating Tab Thickness : .6 mm [ .024 in ]

Termination Features

Termination Method to Wire & Cable : Crimp
Product Terminates To : Wire & Cable

Dimensions

Compatible Insulation Diameter Range (mm): 1.4 – 2.1
Wire Size (AWG): 18 – 17
Wire Size (mm²): .75 – 1

Usage Conditions

Insulation Option : Uninsulated
Operating Temperature (Max) (°C): 180
Operating Temperature (Max) (°F): 176, 185, 194, 212, 221, 230, 248, 257, 266, 284, 293, 302, 356
Operating Temperature Range : -40 – 180 °C [ -40 – 356 °F ]

Operation/Application

Conforms to Automation Guideline : Yes, DIN 72036 Automation of Wiring Harness Production, Version June 2024, Yes, KOMAX Guideline for automatic component insertion for electrical connections, Version 5.0 (March 2018)
Compatible With Wire Base Material : Copper

Industry Standards

Compatible With Agency/Standards Products : LV214

Packaging Features

Packaging Quantity : 5000
Packaging Method : Reel

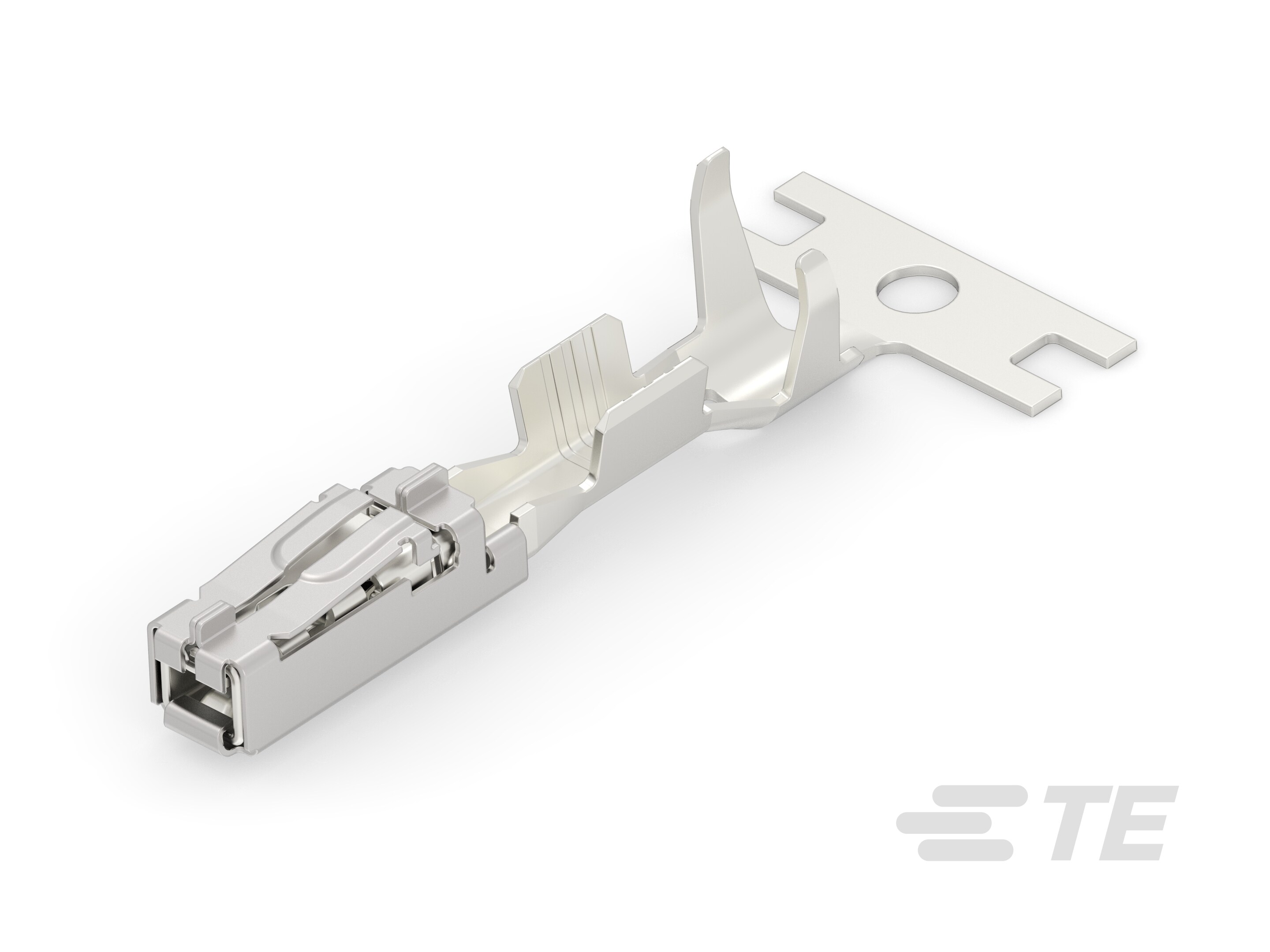

2292291-1

Receptacle Terminal, 18 – 17 AWG, .75 – 1 mm² Wire, 1.2 mm [.047 in] Tab Width, Silver (Ag), Sealable, .6 mm [.024 in] Tab Thickness

2292291-1

Receptacle Terminal, 18 – 17 AWG, .75 – 1 mm² Wire, 1.2 mm [.047 in] Tab Width, Silver (Ag), Sealable, .6 mm [.024 in] Tab Thickness

Terminal Type : Receptacle

Wire Size (AWG): 18 – 17

Wire Size (mm²): .75 – 1

Mating Tab Width : 1.2 mm [ .047 in ]

Interface Plating : Silver (Ag)

Documents

Product Drawings

CAD Files

Product Specifications

Product Change Notification

Features

Product Type Features

Receptacle Style : 180°

Primary Locking Feature : Locking Lance

Sealable : Yes

Body Features

Terminal Seal Type : Single Wire Seal (SWS)

Contact Features

Wire Contact Termination Area Plating Material : Silver

Contact Fabrication : Stamped & Formed

Contact Size : 1.2mm

Crimp Type : F-Crimp

Typical Current Rating (A): 20

Terminal Type : Receptacle

Mating Tab Width : 1.2 mm [ .047 in ]

Interface Plating : Silver (Ag)

Mating Tab Thickness : .6 mm [ .024 in ]

Termination Features

Termination Method to Wire & Cable : Crimp

Product Terminates To : Wire & Cable

Dimensions

Compatible Insulation Diameter Range (mm): 1.4 – 2.1

Wire Size (AWG): 18 – 17

Wire Size (mm²): .75 – 1

Usage Conditions

Insulation Option : Uninsulated

Operating Temperature (Max) (°C): 180

Operating Temperature (Max) (°F): 176, 185, 194, 212, 221, 230, 248, 257, 266, 284, 293, 302, 356

Operating Temperature Range : -40 – 180 °C [ -40 – 356 °F ]

Operation/Application

Conforms to Automation Guideline : Yes, DIN 72036 Automation of Wiring Harness Production, Version June 2024, Yes, KOMAX Guideline for automatic component insertion for electrical connections, Version 5.0 (March 2018)

Compatible With Wire Base Material : Copper

Industry Standards

Compatible With Agency/Standards Products : LV214

Packaging Features

Packaging Quantity : 5000

Packaging Method : Reel

Product Compliance
