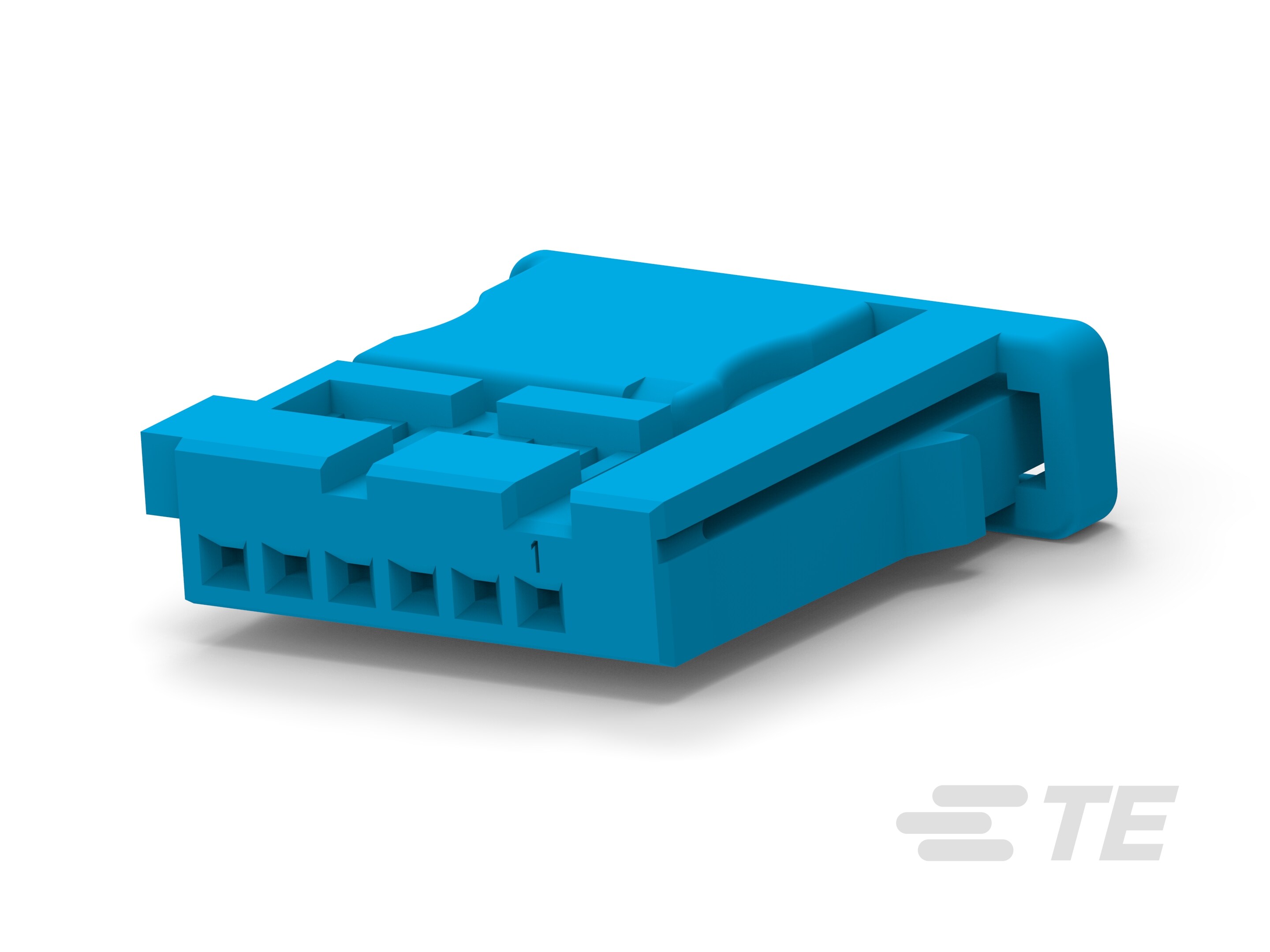

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : No

• Connector & Housing Type : Housing for Female Terminals

• Connector System : Wire-to-Board

• Sealable : No

• Primary Locking Feature : Integrated in Housing

• Connector & Contact Terminates To : Wire & Cable

• Number of Positions : 6

• Number of Rows : 1

• Cable Exit Angle : 180°

• Primary Product Color : Blue

• Connector & Keying Code : C

• Contact Type : Receptacle

• Contact Size : .5mm

• Mating Tab Width : .5 mm [ .02 in ]

• Contact Current Rating (Max) (A): 3

• Mating Alignment : With

• Mating Alignment Type : Keyed

• Terminal Position Assurance : No

• Strain Relief : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Housing Material : PBT GF

• Centerline (Pitch) : 1.8 mm [ .07 in ]

• Connector Height : 5 mm [ .196 in ]

• Product Length : 16.78 mm [ .66 in ]

• Operating Temperature Range (°C): -40 – 120

• Circuit Application : Signal

• Packaging Method : Box

• Packaging Quantity : 7000
