SMA-A0207BTNT120R

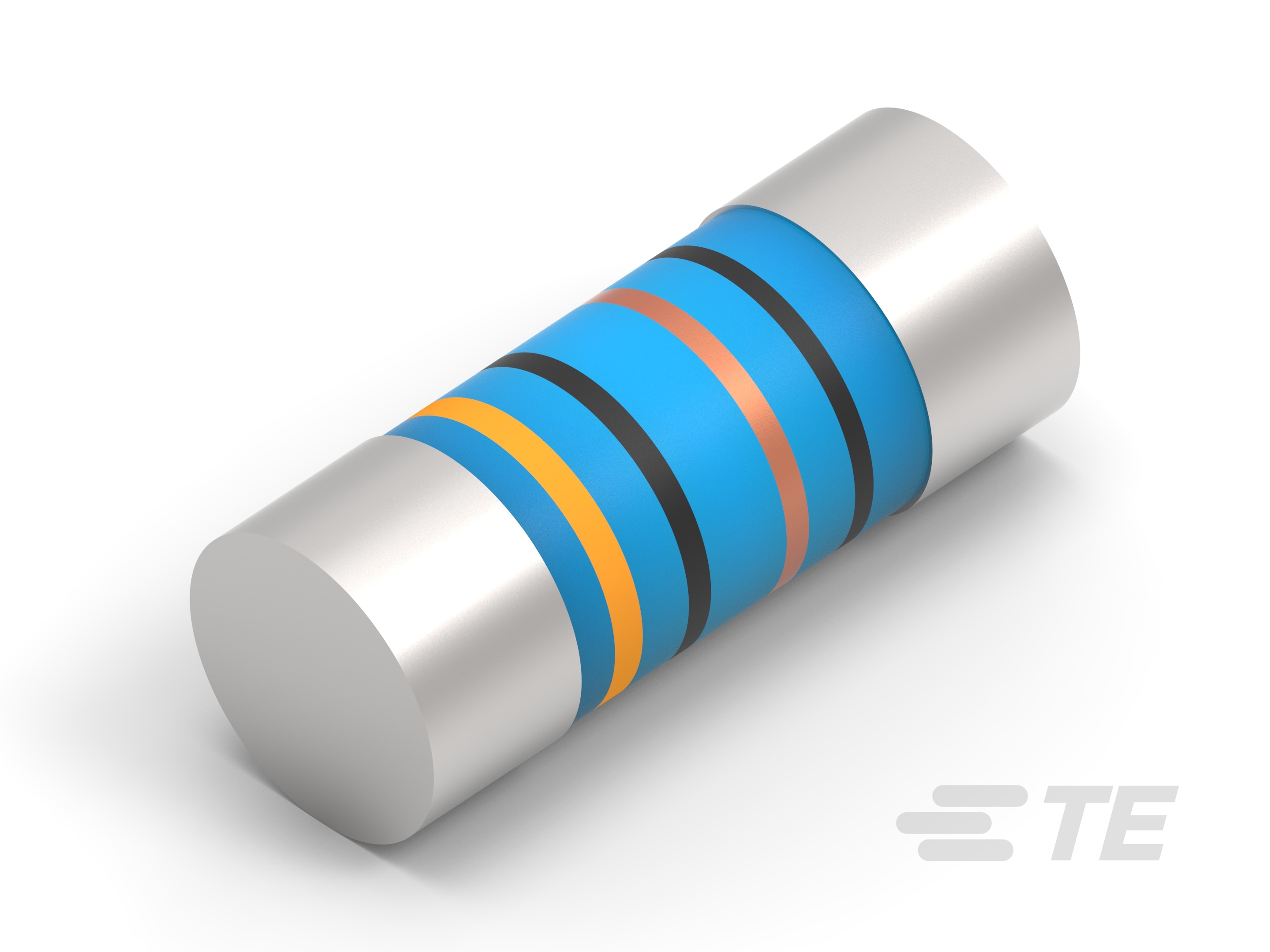

120 ohm, Surface Mount Precision Resistor, Thin Film, 0207, 1 W, .1 %, ±15 ppm/°C, Metal Electrode Leadless Face (MELF), 2 Terminations, Neohm SMA-A
SMA-A0207BTNT120R
120 ohm, Surface Mount Precision Resistor, Thin Film, 0207, 1 W, .1 %, ±15 ppm/°C, Metal Electrode Leadless Face (MELF), 2 Terminations, Neohm SMA-A
-
- Neohm
- Neohm SMA-A
- TE Internal #: 2176316-2
- TE Internal Description: MELF SMA_A 120R 0.1% 15PPM 0207 1W
-
Resistance Value (Ω): 120
-
Resistor Type : Precision Resistor
-
Element Type : Thin Film
-
Package Size Code : 0207
-
Power Rating (W): 1
Documents
Product Drawings
- MELF RESISTORS SMA-A0207 SERIES ENG_CD_2176316_BA.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2176316-2_BA.pdf 3D
- Customer View Model ENG_CVM_CVM_2176316-2_BA.2d_dxf.zip English
- ENG_CVM_CVM_2176316-2_BA.3d_igs.zip English
- ENG_CVM_CVM_2176316-2_BA.3d_stp.zip English
Datasheets & Catalog Pages
- SMA-A-1017 ENG_DS_6-1773446-2_B1.pdf English
