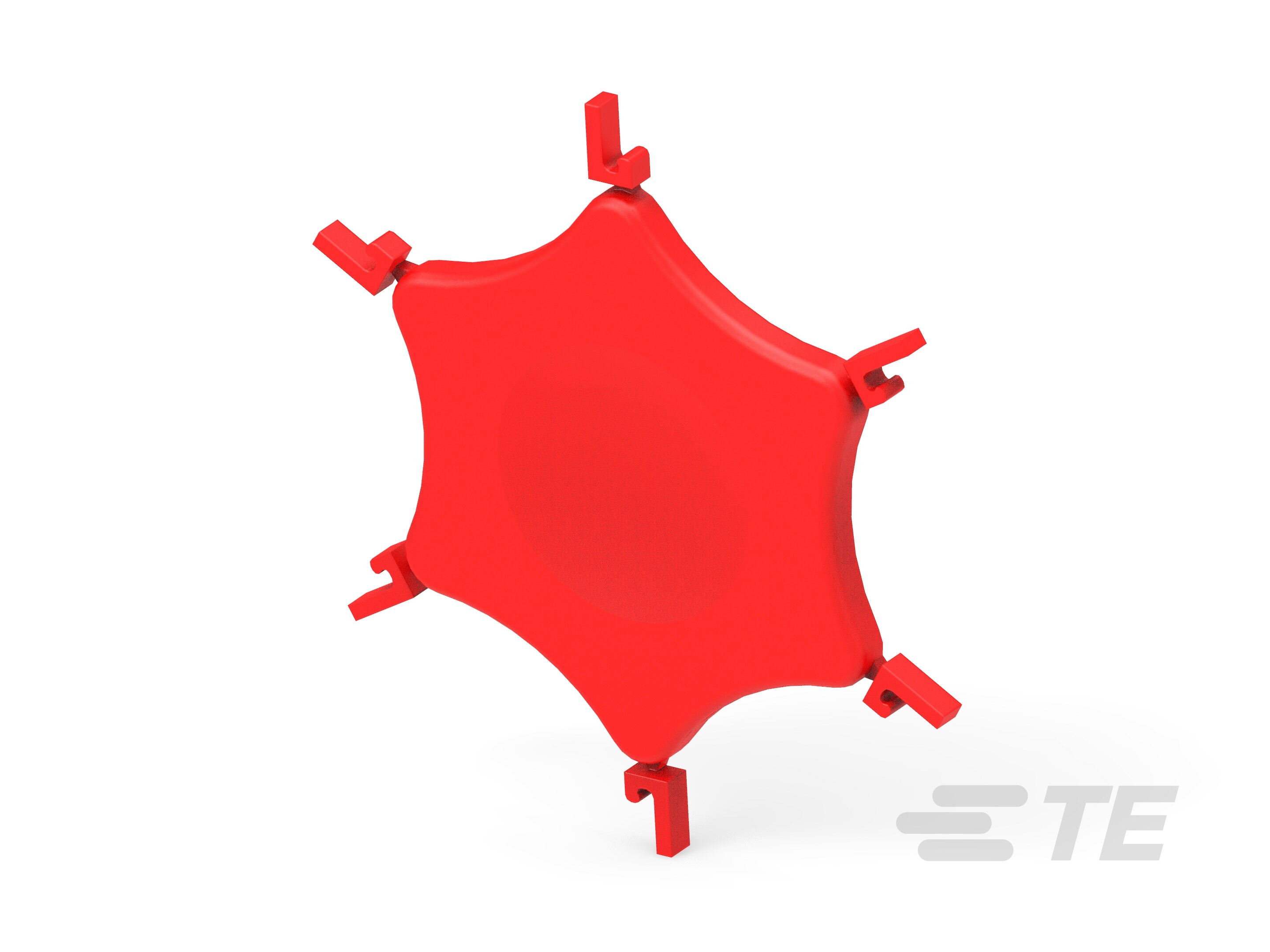

1986671-1
Polarization Key, 3 mm [.118 in] Length, 0 – 110 °C [32 – 230 °F], Terminal Block & Strip Mounting & Retention Accessories
1986671-1
Polarization Key, 3 mm [.118 in] Length, 0 – 110 °C [32 – 230 °F], Terminal Block & Strip Mounting & Retention Accessories
-
- Buchanan
- TE Internal #: 1986671-1
- TE Internal Description: PLZN.KEY,TERMI-BLOK PLUG
-
Mounting & Retention Accessory Type : Polarization Key
-
Product Length : 3 mm [ .118 in ]
-
Operating Temperature Range : 0 – 110 °C [ 32 – 230 °F ]
Documents
Product Drawings
- PLZN.KEY,TERMI-BLOK PLUG ENG_CD_1986671_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1986671-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_1986671-1_A.2d_dxf.zip English
- ENG_CVM_CVM_1986671-1_A.3d_igs.zip English
- ENG_CVM_CVM_1986671-1_A.3d_stp.zip English
Datasheets & Catalog Pages
- BUCHANAN TERMINAL BLOCKS CATALOG - EUROSTYLE TERMINAL BLOCKS ENG_CS_1308389_EUROSTYLE_TERMINAL_BLOCKS_0607.pdf English
