1958439-2

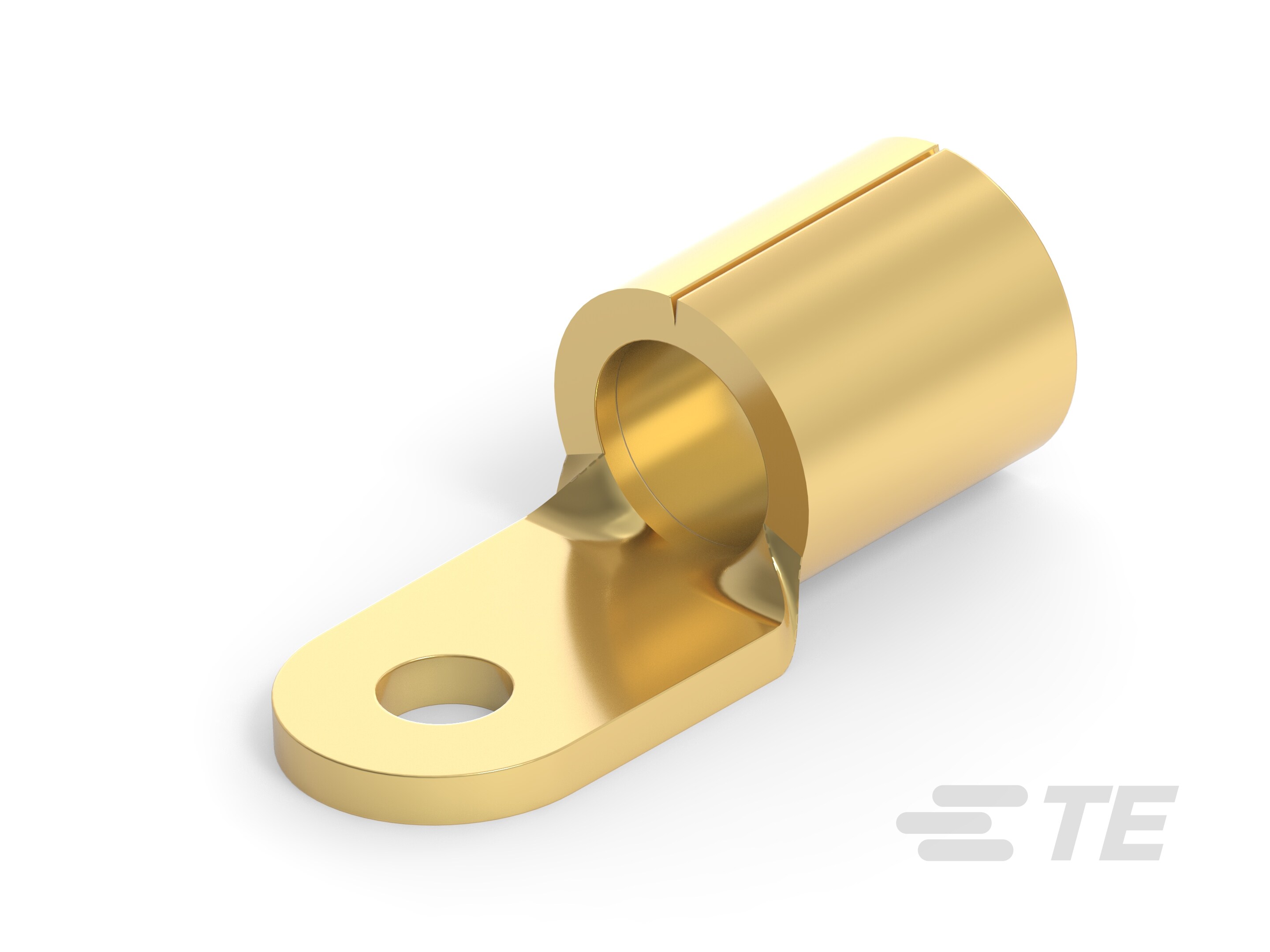

Closed Ring Tongue Terminal, 4 AWG, #8 / M4 Stud, 4.34 mm [.171 in] Stud Diameter, Closed Barrel, Straight, Gold Plating, Uninsulated
1958439-2
Closed Ring Tongue Terminal, 4 AWG, #8 / M4 Stud, 4.34 mm [.171 in] Stud Diameter, Closed Barrel, Straight, Gold Plating, Uninsulated
-
- SOLISTRAND
- TE Internal #: 1958439-2
- TE Internal Description: STRA,RT,4 AWG,M4/#8,HR,AU
-
Ring Terminal Product Type : Closed Ring Tongue Terminal
-
Wire Size (AWG): 4
-
Wire Size (mm²): 21
-
Wire Size (CMA): 33100 – 52600
-
Stud Size : 8, M4
Documents
Product Drawings
- TERMINAL, RING TONGUE, STRATO-THERM ENG_CD_1958439_A_baseFilename.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1958439-2_A.pdf 3D
- Customer View Model ENG_CVM_CVM_1958439-2_A.2d_dxf.zip English
- ENG_CVM_CVM_1958439-2_A.3d_igs.zip English
- ENG_CVM_CVM_1958439-2_A.3d_stp.zip English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-2049_P.pdf English
