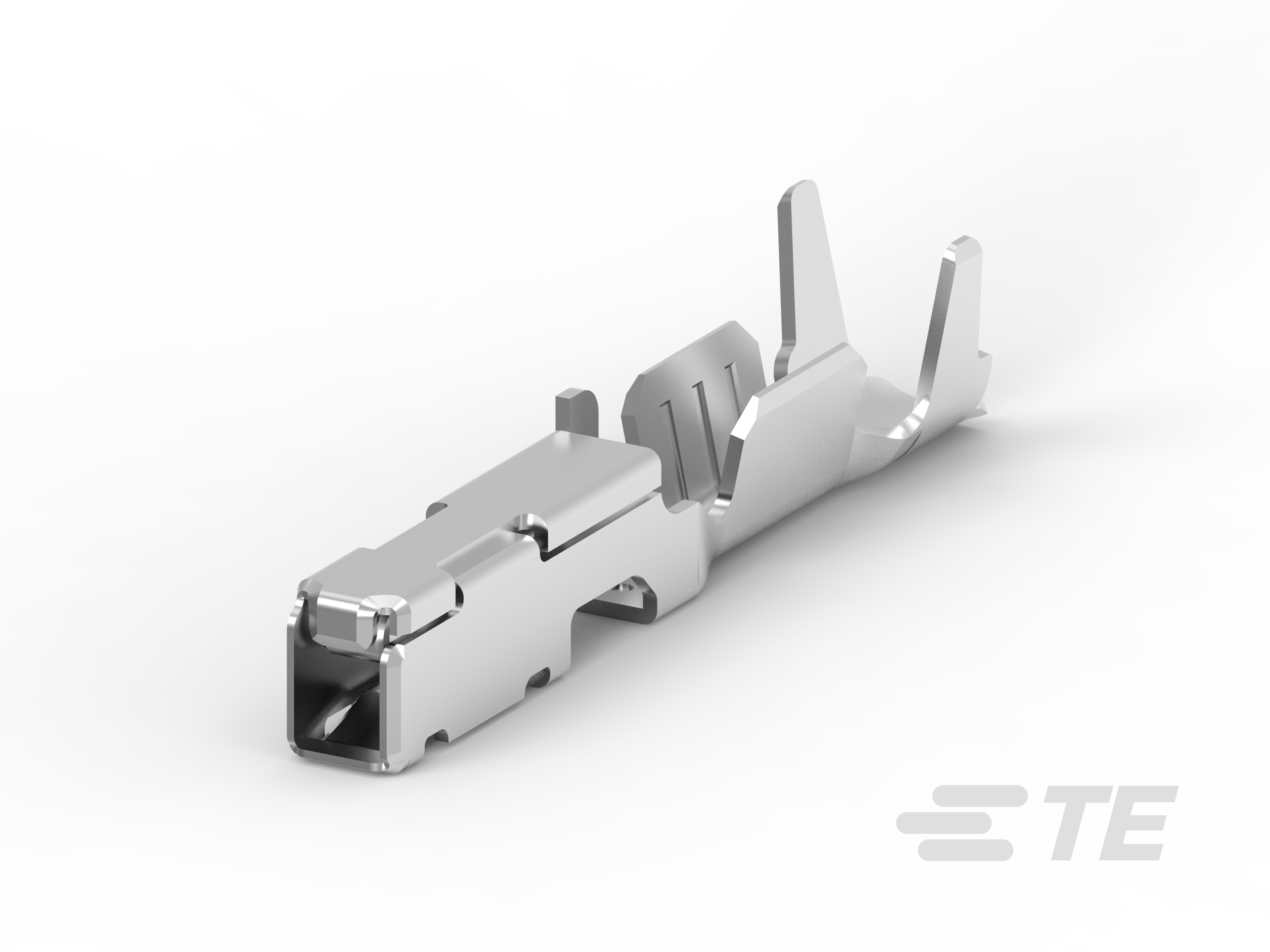

Receptacle Terminal, 26 – 22 AWG, .13 – .35 mm² Wire, .8 mm [.031 in] Tab Width, Tin (Sn), Generation Y Connector System
1924955-8
Receptacle Terminal, 26 – 22 AWG, .13 – .35 mm² Wire, .8 mm [.031 in] Tab Width, Tin (Sn), Generation Y Connector System
-
- Generation Y Connector System
- TE Internal #: 1924955-8
- TE Internal Description: CONTACT,FEMALE,0.64,0.35SQMM,UNSEALED
-
Terminal Type : Receptacle
-
Wire Size (AWG): 26 – 22
-
Wire Size (mm²): .13 – .35
-
Mating Tab Width : .8 mm [ .031 in ]
-
Interface Plating : Tin (Sn)
