1-66360-6

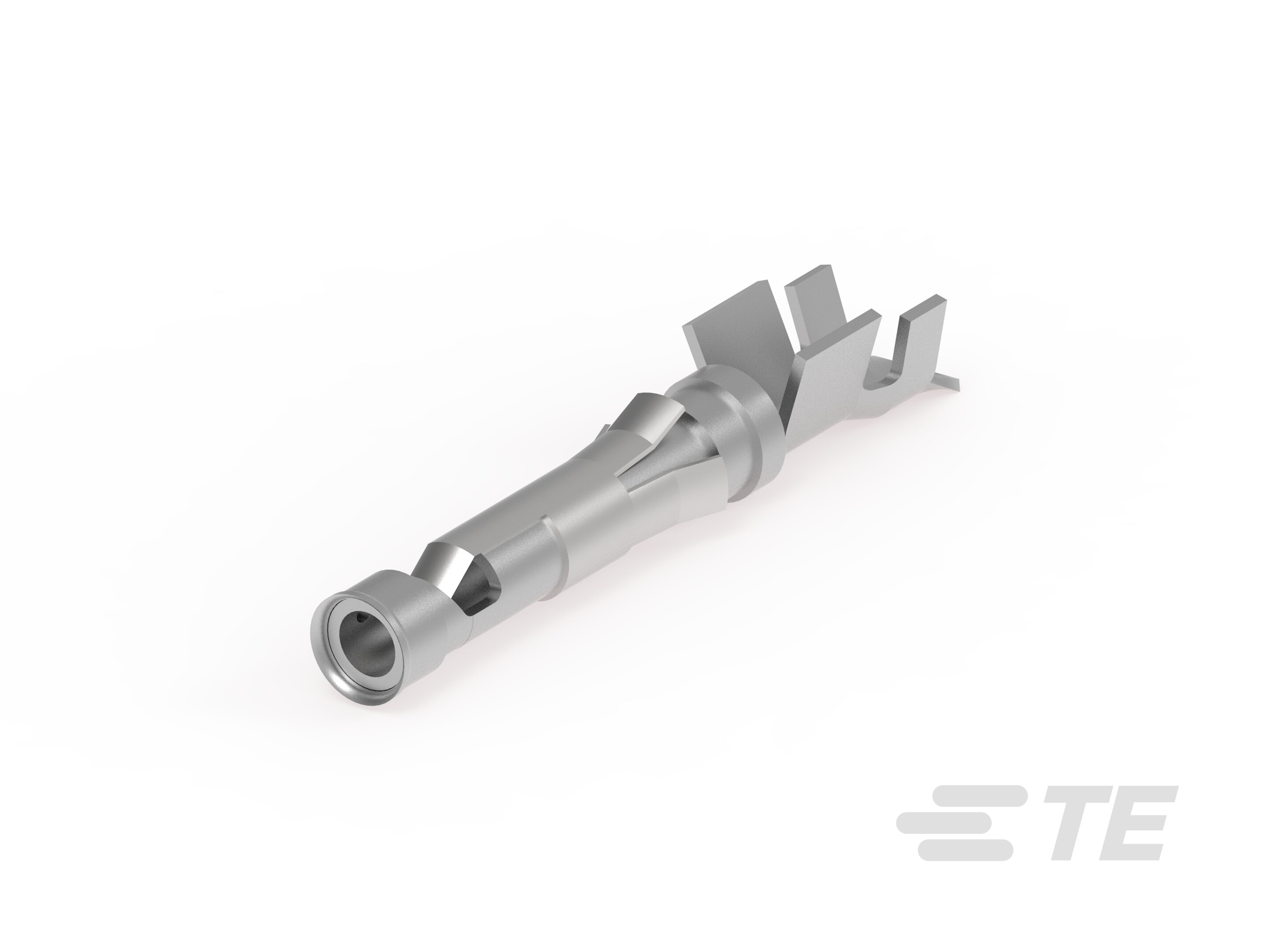

Socket Contact, Tin (Sn), Size 16 Contact Size, 18 – 14 AWG, .8 – 2 mm² Wire, Crimp, Copper Nickel Alloy, Power & Signal, AMP Type III+
1-66360-6
Socket Contact, Tin (Sn), Size 16 Contact Size, 18 – 14 AWG, .8 – 2 mm² Wire, Crimp, Copper Nickel Alloy, Power & Signal, AMP Type III+
-
- AMP
- AMP Type III+ ,
- Circular Plastic Connectors Series 1
- TE Internal #: 1-66360-6
- TE Internal Description: III+SKT,18-14,TIN STRIP LP
-
Contact Type : Socket
-
Contact Mating Area Plating Material : Tin (Sn)
-
Wire Contact Termination Area Plating Material : Tin
-
Contact Retention Within Housing : With
-
Contact Size : Size 16
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1-66360-6_AH.pdf 3D
- Customer View Model ENG_CVM_CVM_1-66360-6_AH.2d_dxf.zip English
- ENG_CVM_CVM_1-66360-6_AH.3d_igs.zip English
- ENG_CVM_CVM_1-66360-6_AH.3d_stp.zip English
Datasheets & Catalog Pages
- AMP Circular Connectors for Commercial Signal & Power Applications ENG_CS_82021_CPC_sections1-5_0807.pdf English
- ENG_CS_65910_Signal_Contacts_0707.pdf English
Product Specifications
- Engineering Report ENG_SS_502-1288_A.pdf English
- Product Specification ENG_SS_108-10042_G.pdf English
