FAKRA RF Compliant Connector System

FAKRA RF Compliant Connector System

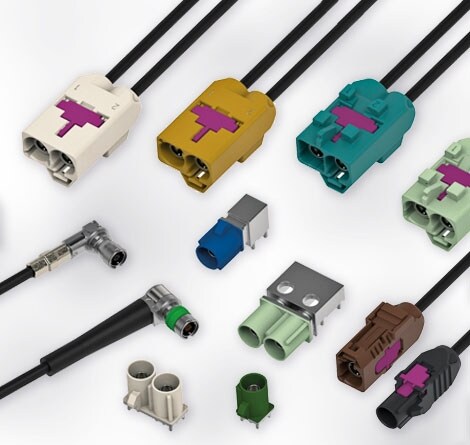

We offer a comprehensive connector system that is fully compatible and designed based on requirements from the FAKRA RF and USCAR standards. The connector systems are in compliance with FAKRA II and FAKRA IV standards for telematics and multi-media vehicle applications. Product offerings include RF cable assemblies, terminals and housings for use in various automotive applications.

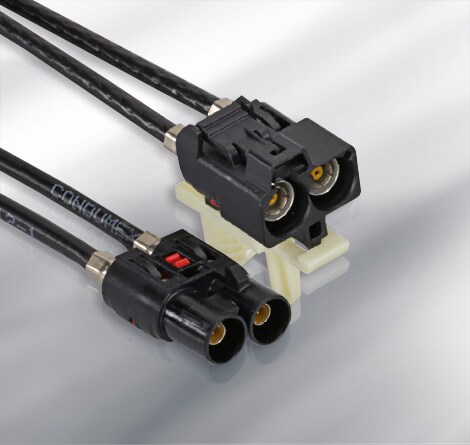

FAKRA RF Automated Compliant Connectors

FAKRA RF Automated Compliant Connectors - Coaxial connection system for radio frequency analog/digital signals supporting up to 6GHz.

Product Features / Product Standards

FAKRA RF Automated Compliant Connectors
  • Full range of products based on the FAKRA interface standard.
  • Fully compliant to USCAR requirements.
  • Supplied for fully automatic termination and cable assemblies.
  • Product range: connectors, terminals, single or dual, sealed or unsealed, headers and cable assemblies.

Typical Applications

FAKRA RF Automated Compliant Connectors
  • RF signals between antenna and head units (AM/FM, GPS, GSM, Bluetooth, etc.)
  • Digital signal transmission (MOST, etc.)

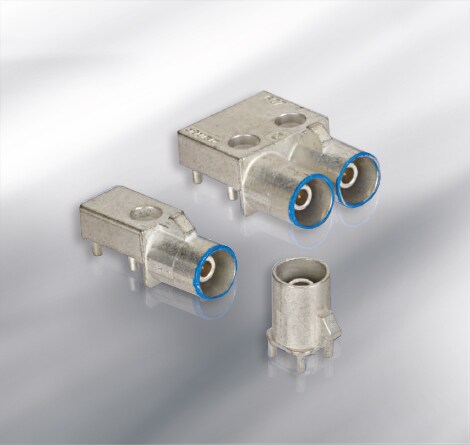

FAKRA RF II & IV Compliant Connectors

FAKRA RF II & IV Compliant Connectors - Coaxial connection system for radio frequency analog/digital signals supporting up to 4GHz.

Product Features / Product Standards

FAKRA RF II & IV Compliant Connectors
  • Full range of products based on the FAKRA interface standard
  • Fully compatible to USCAR requirements
  • Product range: connectors, terminals, PCB connections, cable assemblies
  • Straight jack and plug terminals for different cable types
  • Special cable assemblies are available


TE's FAKRA RF compliant connector system is designed to meet or exceed the following automotive standards:

  • ISO20860-1 (50 Ohms Impedance Radio Frequency Connection System Interface)
  • SAE/USCAR-17 (Performance Specification for Automotive RF Connector Systems)
  • SAE/USCAR-18 (FAKRA SMB RF Connector Supplement)
  • SAE/USCAR-2 (Performance Specification for Automotive Electrical Connector Systems)

Typical Applications

FAKRA RF II & IV Compliant Connectors
  • Telematics
  • Multimedia
  • Global Positioning Systems (GPS)
  • Mobile phones
  • Radios
  • Mobile television
  • Digital satellite radios

What is FAKRA RF?

"FAKRA RF" is an acronym developed in Germany for “FAchKReis Automobile”, which can be translated as “Automobile Expert Group”. The FAKRA RF connector specification was developed by a sub-committee within the German Committee of Automobile Manufactures.

Application
